Disconnection module 10 pair
Description:
A disconnection module 10 pair is a key element within telecommunications and data transmission infrastructure. It's a compact, but robust piece of equipment that enables connection and disconnection for ten separate pairs of wires.
Here are the technical specifics of a disconnection module 10 pair:
Capacity: The module is designed to accommodate ten pairs of wires, permitting individual connection or disconnection based on the requirements.
Design: The module comprises ten slots, each designed to hold a wire pair securely, thus ensuring dependable connections.
Functionality: This module provides swift and convenient disconnection and reconnection of wire pairs. This feature is especially useful in scenarios where regular modifications or tests are required. Importantly, each circuit can be independently managed, preventing interference with other pairs.
Applications: Disconnection modules of this type are commonly utilized in telephone exchanges, data centers, and other points in telecommunications distribution networks.
Construction and Durability: Due to their pivotal role in network infrastructure, these modules are built with premium, durable materials to withstand regular usage.
Compliance with Standards: These modules are usually produced in compliance with industry standards for performance, safety, and interoperability, making them suitable for a wide range of equipment and use cases.
Installation: The design of the disconnection module 10 pair prioritizes easy installation and maintenance. They can be quickly inserted or removed from a distribution frame, and the individual wire pairs are easily accessible for connection or disconnection.
These technical details make the disconnection module 10 pair an essential asset in the telecommunications industry, as it provides a practical, reliable, and adaptable solution for handling complex wiring systems.

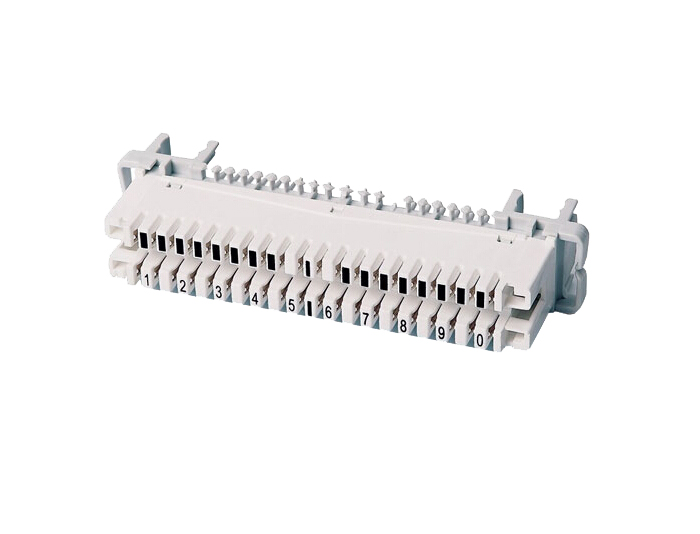

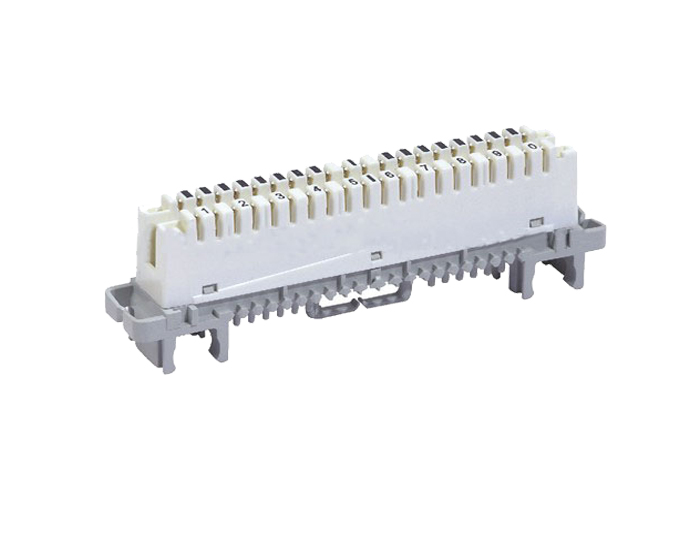

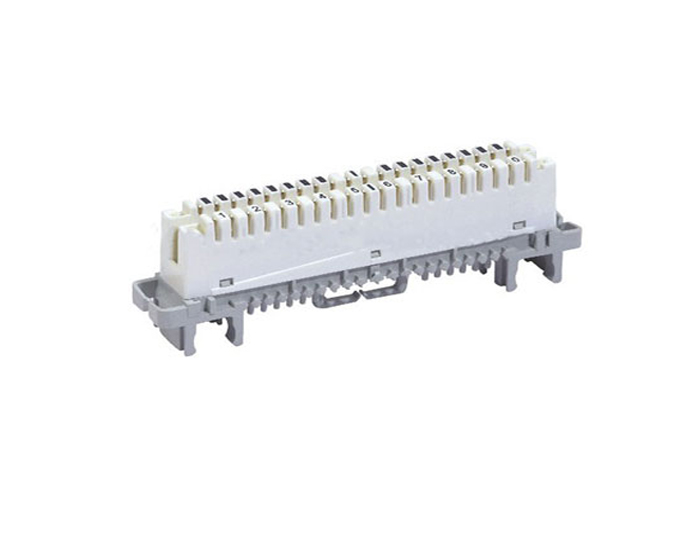

The RGP-TSF-101C 10 Pair LSA-PLUS Profile Disconnection Module is widely used in Main Distribution Frame and ideal connectivity products, Krone LSA adopts IDC ( Insulation Displacement Connection ) technique. The outside material is Flame retardant performance PBT / ABS, The contact pin is bronze with silver plated. Have a good Reliable connection.
Krone Disconnection Module, Connection Module, Voice, high-speed data transmission via ISDN, ADSL, VDSL, cable TV, Internet access, and mobile networks, MJADOM'S copper connectivity solutions are designed to deliver fast, safe, and reliable transmission.
MJADOM offers a full range of Krone LSA-PLUS Disconnection Modules & Connection Modules & Highband Modules & STG Modules & Back Mount Frames and Gas Discharge Tube Protective Units.
Features:
Fits on all LSA-PLUS back mount frames.
Reliable connections.
Suitable for use all xDSL and ADSL 2+ circuits.
Modular design and installation.
Based on LSA-PLUS connection technology.

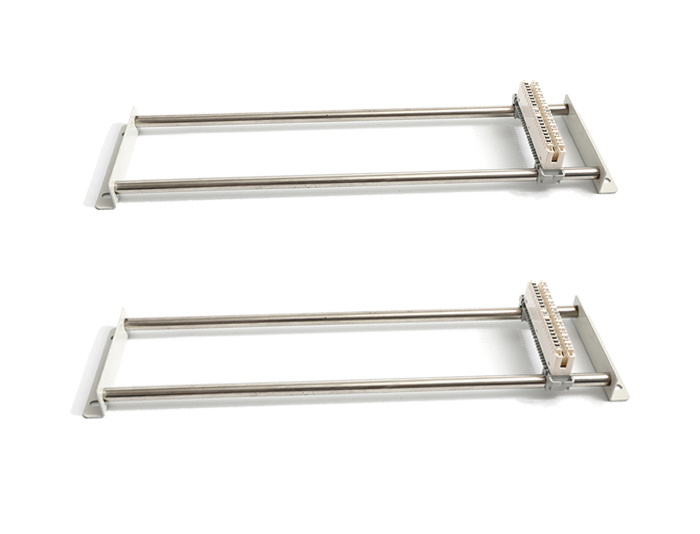

LSA-PROFIL modules mount on profile rods or back mount frame.
Flexible indoor and outdoor use.
Robust long-term environmental stability.
Over-voltage protection using 10 pair protection magazine.
Type Approved against TEC, MDF Spec. GR/CTN-01/04 May 2005.
High contact reliability in the event of vibration, cold, heat, moisture and other atmospheric or climatic influences.
High wear resistance thanks to high-performance plastics.
Compliance gas-tight contact points.
Life: durability 250 cycles.
Product Details:
| Type | RGP-TSF-101C | Style | LSA-PLUS Profile Disconnection Module |
| Capacity | 10 Pair | Dimensions (HxWxD) | 0.8"x1.57"x4.84" (Size: 20.5x40x123mm); |
| Contact resistance | < 2.5 m ohms | Insulation resistance | > 50 000 Mega ohms |
| Dielectric strength | 2 KV rms | Impulse current | 5 kA ( 8/20 micro sec) |
| Cross talk ratio | >60dB(50 kHz-21MHz) | Plug-in loss | <0.4dB(50 KHz-21MHz) |
| Material | Housing: PBT/ABS, self-extinguishing UL94 V-0 Contact: Special Phosphor bronze with silver-plated. | Specification | 5/8/10 Pair |
Application:
Main distribution frames of exchanges.
In cross-connection cabinets and terminating boxes.
In building entrance distributors.
In-floor distributors or in PABXs for voice and data distribution.
