Description:

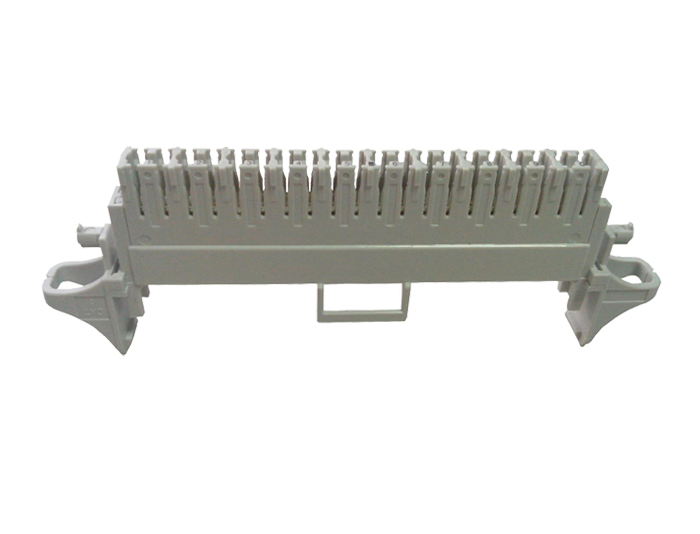

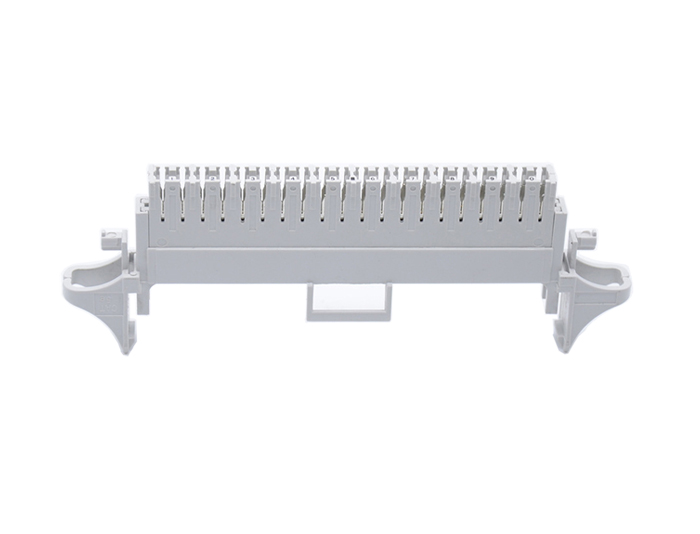

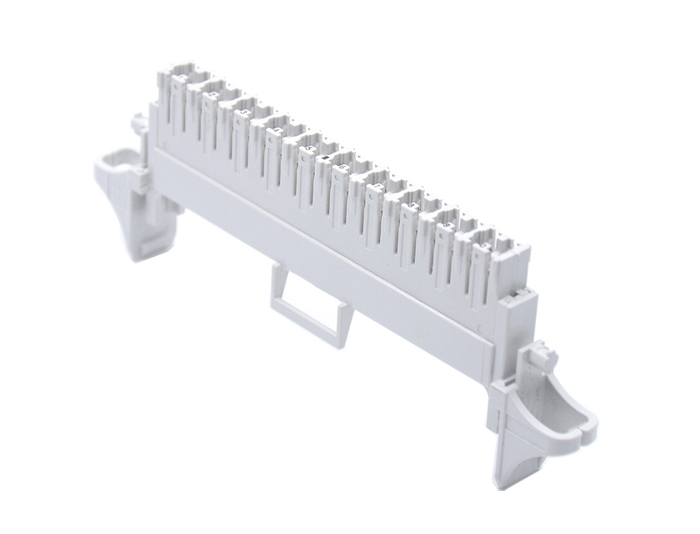

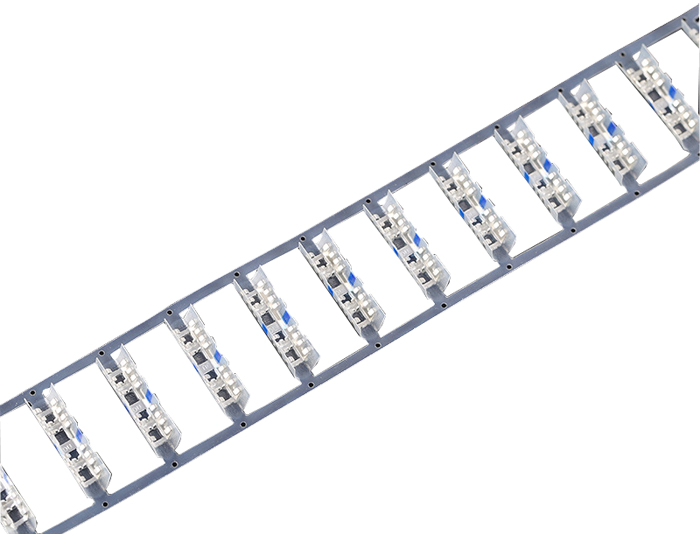

10 Pair High-Density STG Connection Module is the latest evolution of the STG range if IDC (Insulation Displacement Contact) connection module that can be snapped onto 3M standard back mount frame(8/10 pair, 16 or 14mm) pitch profile is available upon request, Pouyet module offers Cat. 5 transmission performance as a standard. As a result, this module can be used in any modern network and is fully compatible with various applications.

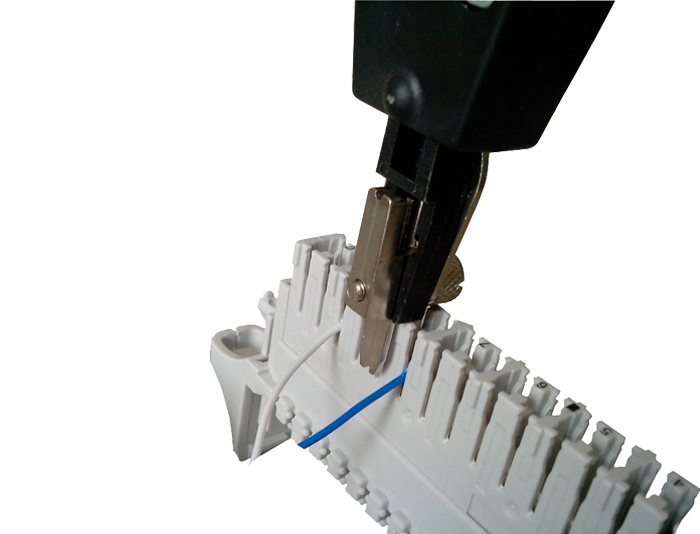

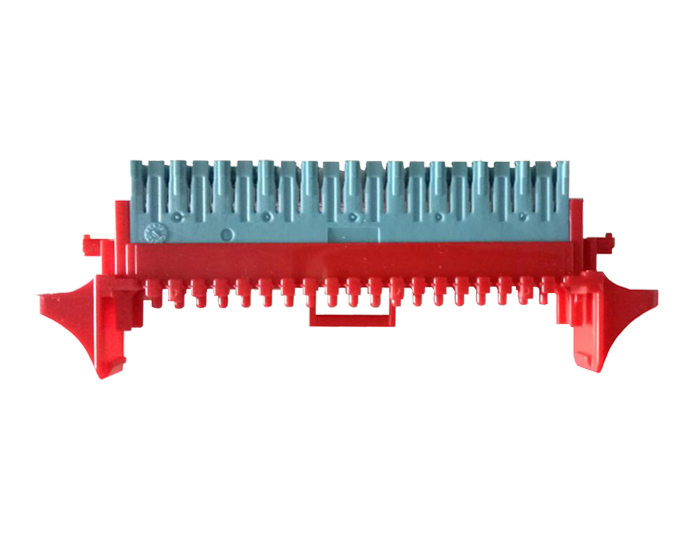

STG Module & Insertion Tool can be used in any modern network and is fully compatible with a variety of applications (xDSL, etc.). Termination is easy and cable jumpers can be managed from the rear or from the side. The STG2000 modules offer three different types of IDC circuits, all Cat. 5 rated as per EIA/TIA 568B.

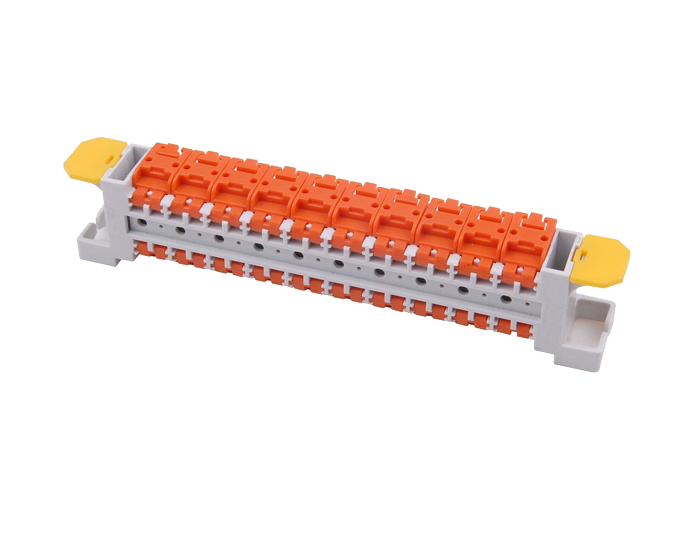

MJADOM offers a full range of Krone LSA-PLUS Disconnection Module & Connection Module & Highband Module & STG Module & Punch Down Tool and Insertion Tool.
Features:
Transmission performances meet Cat. 5 (100 MHz).
Specific contacts for stranded wires upon request, Multiple retermination with all kinds of conductor gauges in the 0,8 to 0,4mm (20 to 26 AWG) range.
Very compact mounting pitch of 0.63 in./16 mm, vertical space between block rows.
Specific disconnection area for testing, monitoring, disconnection or adding protection to each line.
Integrated front mounts forward surge protection.
Non-protruding contacts offer good protection and a long life cycle. May prevent accidental contact or disconnection.
Can be used in applications where density is required (overcrowded MDFs, confined spaces of remote terminals or telecom closets in MDUs).
The comprehensive range of protection circuits and accessories, Improved wire retention (in all directions).
Product Details:
| Type | RGP-TSF-101G2 | Style | 10 Pair High-Density STG Connection Module |
| Transmission and reliability | Exceeds Cat.5 (100 Mhz) | Dimensions (HxWxD) | 5.7"x1.96"x0.55" (Size: 146x50x14mm); |
| Insulation resistance | > 1x1010 Ω | Contact resistance | < 10 mΩ |
| Dielectric strength | 3000 V rms, 60 Hz AC | High voltage surge | 3000 V DC surge |
| Transmission | |||
| Insertion loss | < 0.01 dB to 2.2 MHz. < 0.02 dB to 12 MHz. < 0.03 dB to 30 MHz. | Return loss | > 50 dB to 2.2 MHz. > 38 dB to 12 MHz. > 30 dB to 30 MHz. |
| Crosstalk | > 73 dB to 2.2 MHz. > 60 dB to 12 MHz. > 53 dB to 30 MHz. | Wire range IDC contacts | 0.4 mm to 0.8 mm. 26 AWG to 20 AWG. T-connection / double jumpering possible with different wire gauges |
| Material | Housing: Thermoplastic, UL 94 V-0. Contact: Bronze, tin (Sn) plating. | Capacity | 5/8/10 Pair |
Application:
Main distribution frames of exchanges.
In cross-connection cabinets and terminating boxes.
In building entrance distributors.
In-floor distributors or in PABXs for voice and data distribution.
STG Modules are suitable for public telephony (MDF, cross-connection cabinets, building distribution) as well as for private telephony and high data rates transmission.
