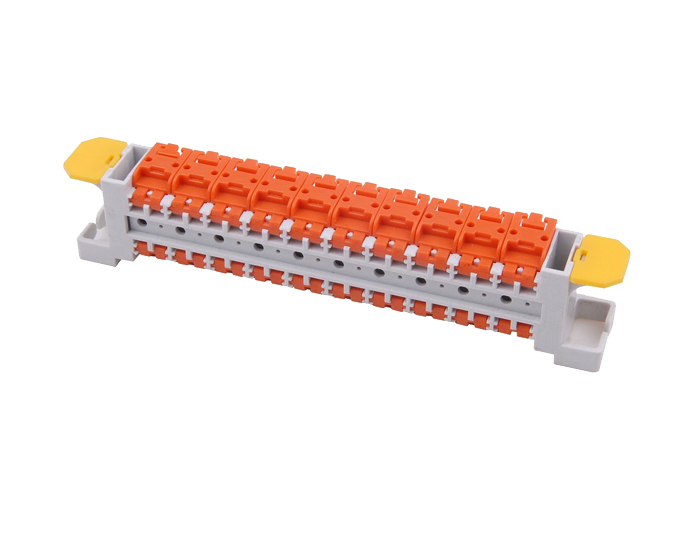

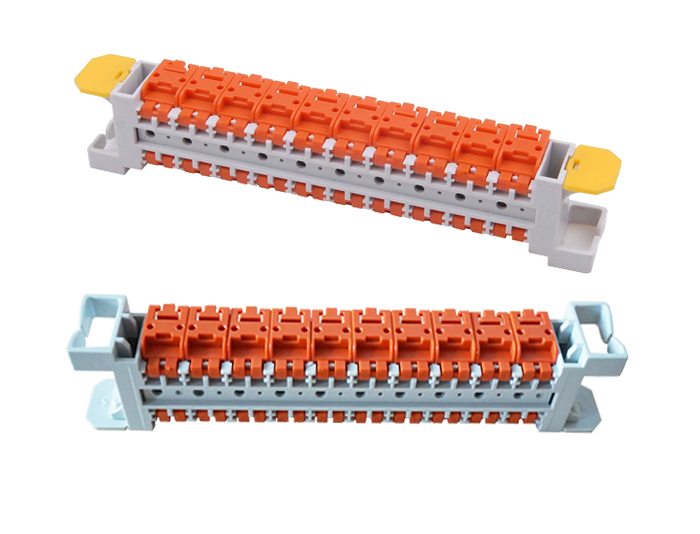

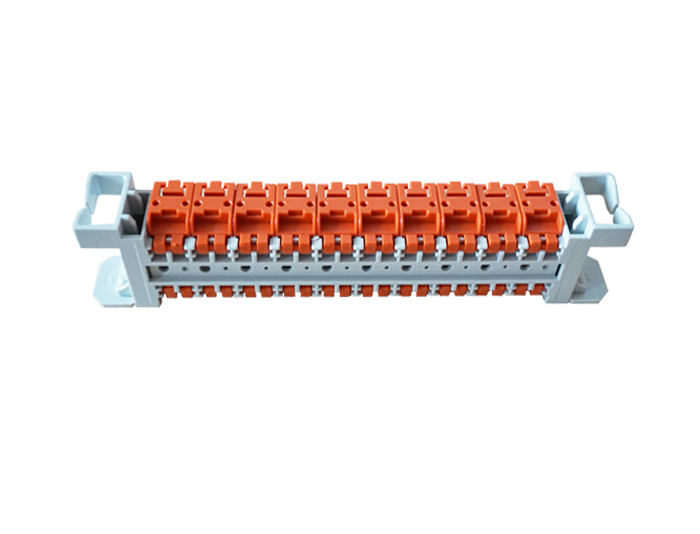

10 Pair Tool-less Quick Conect System (QCS) 2810 TSF-101G3

Publisher: MJADOM

Author: Andy

The QCS 2810 system is a simple-to-use, tool-less copper block; Gel-filled Tool Free Copper Block is an ideal solution for outside plant applications.

Description:

RGP-TSF-101G3 10 Pair Tool-less connection module is an insulation displacement connector (IDC) termination system. The QCS 2810 system is a simple-to-use, tool-less copper block; Gel-filled Tool Free Copper Block is an ideal solution for outside plant applications. Whether in cross-connect cabinets or at the edge of the network, the gel-filled 2810 system is the solution.



Gel Filled Wire Connectors are deploying ADSL2+ & VDSL2 over a twisted-pair copper cable to meet these demands. The Contact integrity is critical, not only at the time of installation but over the life of the connector. The Gel-filled Connector / Quick Connect System (QCS) can be re-opened without breaking the circuit for visual validation of the IDC connection. High-integrity gel encapsulation protects against moisture and corrosion and is designed to remain in place even after multiple wire insertions.



MJADOM offers a full range of Krone LSA-PLUS Disconnection Module & Connection Module & Highband Module & STG Module & Back Mount Frame and Punch Down Tool & Insertion Tool.


Features:

Tool-less, Gel-filled Module.

Simple-to-use, Ideal for outdoor applications.

Visibility to jumpers, Pair-at-once termination.

Low termination force, Termination cap.

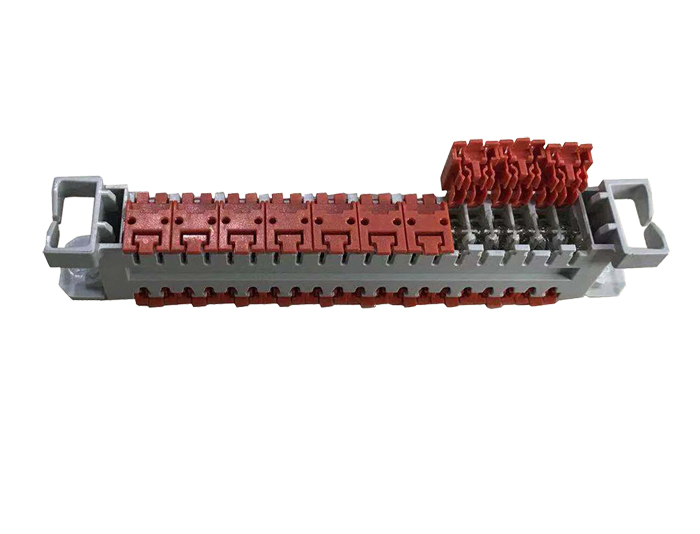

Re-opened without breaking the circuit.

Simple termination practices help increase technician productivity.

High-performance, compact solution to help deploy high-speed networks.

High integrity connection for network reliability & broadband performance.

The ability to inspect jumper termination allows validation of connection, minimizing rework.

Protection from dust and other environmental contaminants.


Product Details:

 TypeRGP-TSF-101G3Style10 Pair Gel Filled Tool-less Connection Module
Transmission and reliabilityExceeds Cat.5 (100 Mhz)Dimensions (HxWxD)

5.31"x1.02"x0.79"

(Size: 135x26x20mm);

Insulation resistance> 1x1010 ΩContact resistance< 10 mΩ
Dielectric strength3000 V rms, 60 Hz ACHigh voltage surge3000 V DC surge
 MaterialHousing: Thermoplastic, UL 94 V-0 materials usedContact: Bronze, tin (Sn) plating. Capacity 10/50 Pairs



Application:

In cross-connection cabinets and terminating boxes.

In building entrance distributors.

In-floor distributors or in PABXs for voice and data distribution.

Tool-less connection module can be used throughout the network as the common interconnectivity and termination platform.

Ideal for use in Building Entrance Terminals (BET/PET), pole or wall-mount cable terminals, distribution pedestals, strand or drop wire terminals.


Configuration

Order Info:

  Item No. Product Description
RGP-TSF-101G110 Pair High-Density STG Disconnection Module
RGP-TSF-101G210 Pair High-Density STG Connection Module
RGP-TSF-101G310 Pair Tool-less Connection Module / Quick Connect System (QCS)
RGP-TSF-101G4 Blue Picabond Connector
