48 Cores ADSS All Dielectric Self-Supporting Aramid Single Jacket Fiber Cable

Publisher: MJADOM

Author: Andy


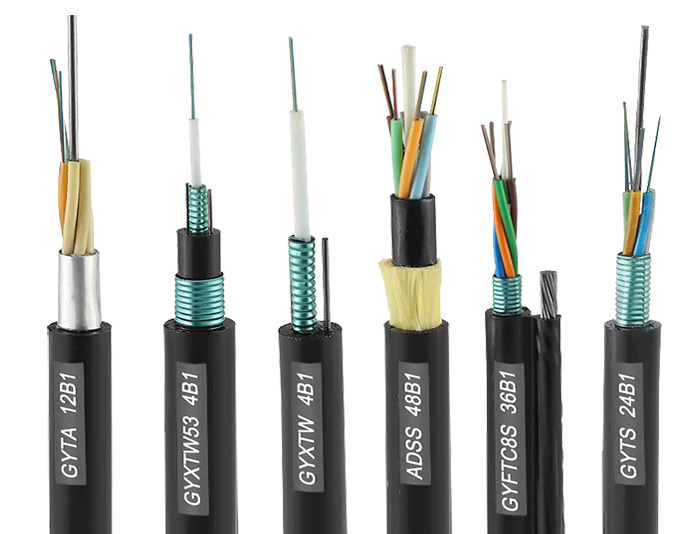

48 Cores ADSS All Dielectric Self-Supporting Aramid Single Jacket Fiber Cable



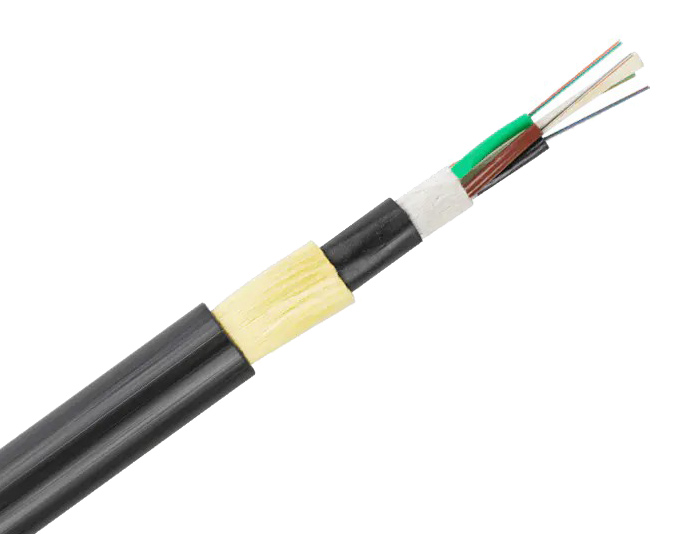

Description:



ADSS (All Dielectric Self-Supporting) Fiber Cable is stranded loose tube. Fibers, 250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound.



Description:



ADSS (All Dielectric Self-Supporting) Fiber Cable is stranded loose tube. Fibers, 250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound. The tubes (fillers) are stranded around a Flat FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, aramid yarn reinforced and PE or AT sheathed. The economical single-jacket design can span distances of 100m, 150m and 200m in light conditions. ADSS Fiber Cable is suspended from poles or towers in telecommunication and power outside plant applications.



Feature:

S-Z stranded (up to 144 fibers).

Metallic, non-metallic armored or unarmored.

Steel wire or FRP for center strength member.

Good water penetration, mechanical and environmental performance.

Reinforced aramid yarn, Flat FRP or Round FRP armor providing good anti-rodent performance.


ADSS Fiber Optic Cable, Fiber Optic ADSS 12 hilos.

PE or AT outer sheath.

Crush resistance and flexibility.

Loose tube filling compound.

Reasonable design, precise residual length control and cabling process.

make the cable have excellent mechanical and environmental performance.

In accordance with IEC, ITU and EIA standards.



Application:

All dielectric self-supporting aerial.

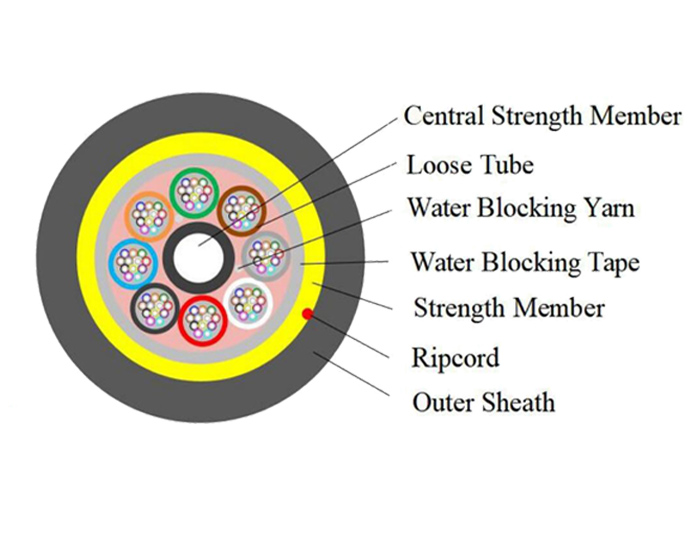

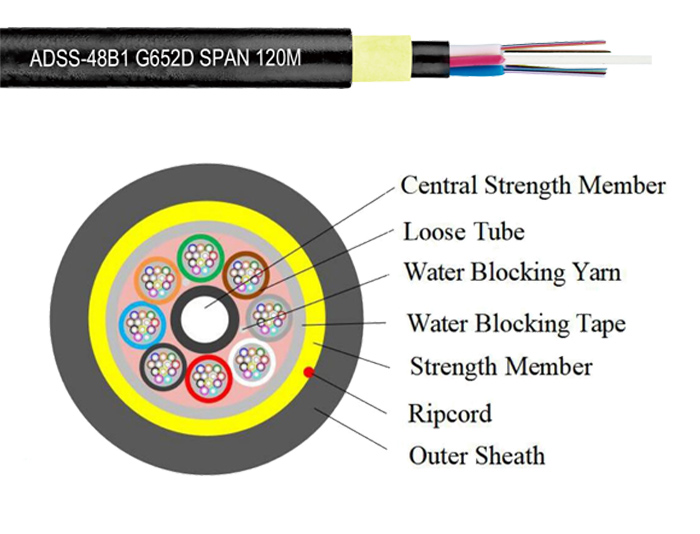

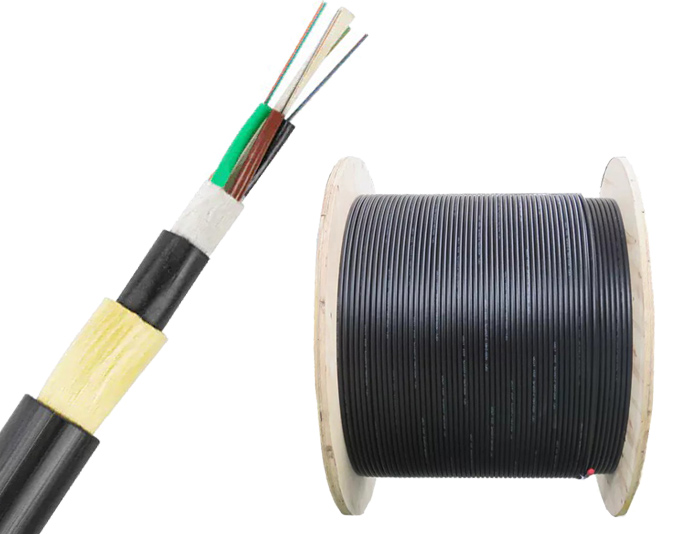

Configuration

Specification:

1Center Strength MemberFRP2.3+/-0.1
2Fiber UnitLoose TubePBT2.1+/-0.1
Fiber12-144 Single Mode FibersG652D
Fiber Quantity12 Pcs Fiber× 1-12 Loose Tubes
Fiber ColorBlue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua
Loose Tube ColorBlue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua
Filling (Fiber jelly)Thixotropy Jelly
3Water BlockingWater Blocking Yarn
4Filler0-5 Pcs2.1+/-0.1
5Water BlockingWater Blocking Tape
6Strength MemberFRP
7ArmorAramid Yarn
8Rip Cord1 pc
9Outside SheathHDPE17.9+/-0.5


Optical Characteristic:



G652DG655C50/125μm62.5/125μm
 Attenuation (+20℃)@850nm//≤ 3.0 dB/km≤ 3.3 dB/km
@1300nm//≤ 1.0 dB/km≤ 1.0 dB/km
@1310nm≤ 0.36 dB/km≤ 0.40 dB/km//
@1550nm≤ 0.22 dB/km≤ 0.23 dB/km//
Bandwidth (Class A)@850nm

≥ 500 MHz.km≥ 200 MHz.km
@1300nm

≥ 1000 MHz.km≥ 600 MHz.km
Numerical Aperture

0.200±0.015 NA0.275±0.015 NA
Cable cut-ff Wavelength λcc≤ 1260 nm
Attenuation vs. Bending(60mm x100turns)(30mm radius, 100ring)≤ 0.1dB @ 1625nm
PMD (Polarization Mode Dispersion) maximum individual fibre≤0.2ps/(km1/2)
Mode Field Diameter9.2mm ± 0.4mm at 1310nm10.4mm ± 0.5mm at 1550nm
Zero-dispersion wavelength1312±12nm
Zero-dispersion slope≤0.091ps/(nm2.km)
Core-Clad Concentricity≤ 0.5mm
Cladding Diameter125mm±1mm
Cladding Non-circularity≤ 1%
Cladding diameter primary245mm±10mm
Proof test level≥ 0.69Gpa


Cable Specification:

ItemUnitParameter
Cable Standard Weightkg/km86
Rated Tensile Strength(RTS)KN4.5
Maximum Allowable Tension(MAT)KN1.8
Every Day Strength(EDS)KN1.15
Min-Bending RadiusDynamic
mm20D
Static
mm10D
Crush PerformanceShort-TermN/100mm1000
Long-TermN/100mm300
Suiting Line Voltage ClassNot more than 35 kV
Spanm120
Suitable Meteorological ConditionMax wind speed: 25m/s, No icing
OperationWhen working or in store-40℃-+70℃
TemperatureWhen laying-10℃-+50℃
Fiber Attenuation Coefficient in CabledB/km(1310nm)≤0.36dB/km
dB/km(1550nm)≤0.22dB/km

Color-coding of fiber will be clearly, and not fade in temperature of working and installation.


Order Information:

Cable TypeMaximum CoresCable DiameterCable Weight
ADSS-12B112 Core10.6±0.586KGS
ADSS-24B124 Core10.6±0.586KGS
ADSS-48B148 Core10.6±0.586KGS
ADSS-72B172 Core12.8±0.5119KGS
ADSS-96B196 Core12.8±0.5119 KGS
ADSS-144B1144 Core15.7±0.5192 KGS
