Description:

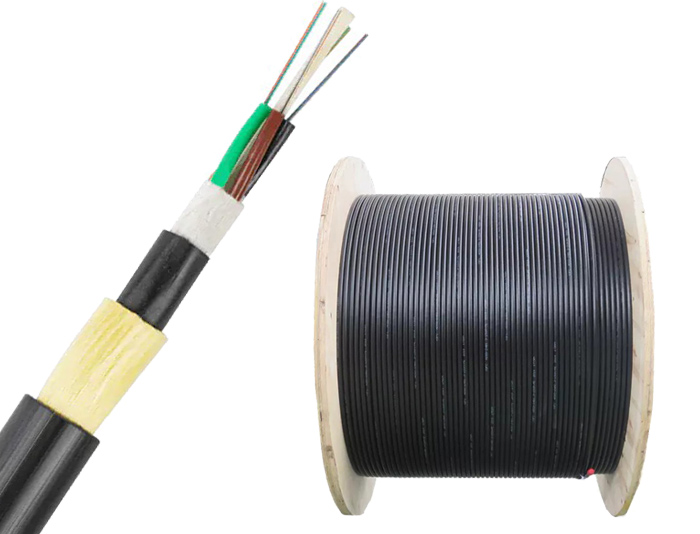

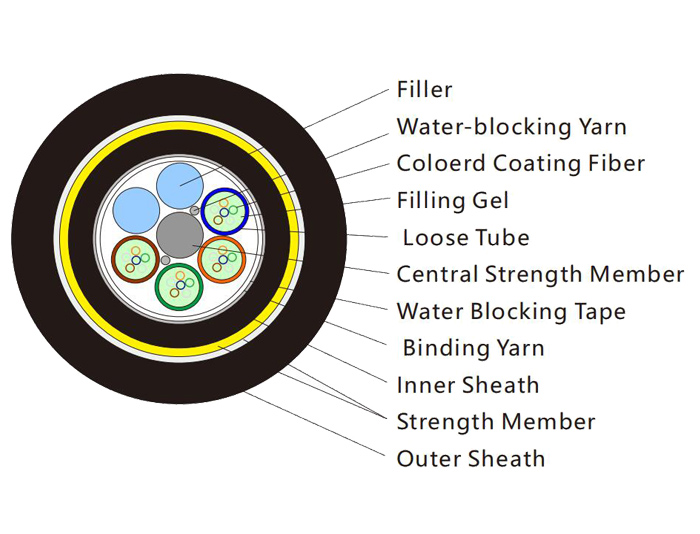

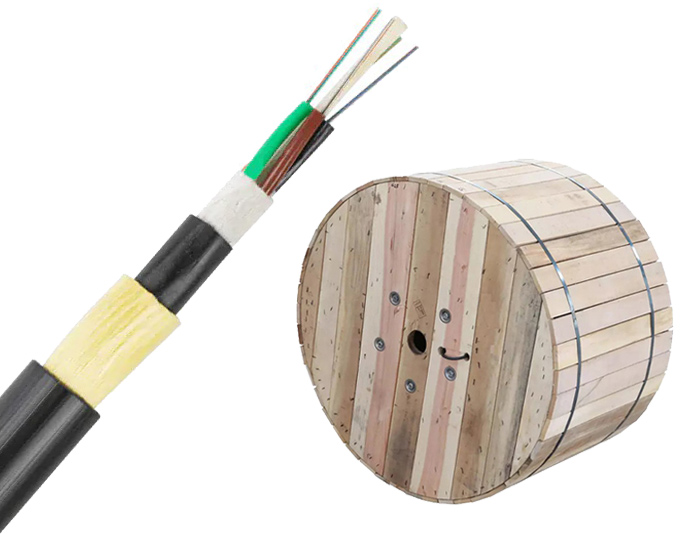

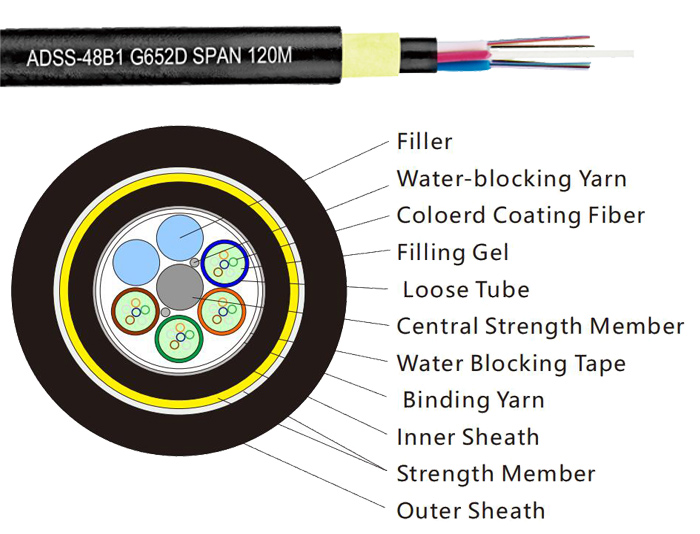

ADSS (All Dielectric Self-Supporting) Aramid Double Jacket Optical Fiber Cable supports Short Span, Medium Span and Long Span. Fibers, 250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound. The tubes (fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, aramid yarn reinforced and PE or AT sheathed. The double jacket design can span distances of 100m, 150m and 200m in light conditions. ADSS Fiber (All Dielectric Self-Supporting) Cable is suspended from poles or towers in telecommunication and power outside plant applications.
Feature:
S-Z stranded, Double Jacket.
Fiber Optic Cable Core Up to 144 fibers.
Metallic, non-metallic armored or unarmored.
Steel wire or FRP for center strength member.
Good water penetration, mechanical and environmental performance.
Reinforced aramid yarn, Flat FRP or Round FRP armor providing good anti-rodent performance.
ADSS Fiber Optic Cable, Fiber Optic ADSS 24 hilos, ADSS Fiber Cable, ADSS Optical Cable.
PE or AT outer sheath.
Crush resistance and flexibility.
Loose tube filling compound.
Reasonable design, precise residual length control and cabling process.
make the cable have excellent mechanical and environmental performance.
In accordance with IEC, ITU and EIA standards.
Application:
All dielectric self-supporting aerial.
