Description:

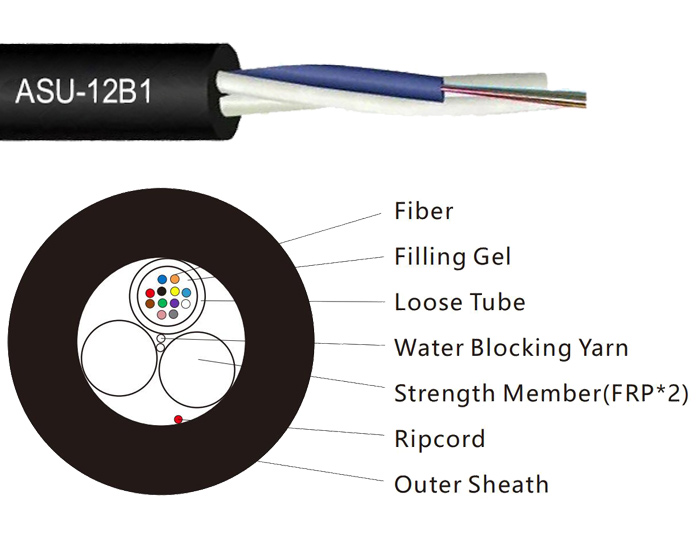

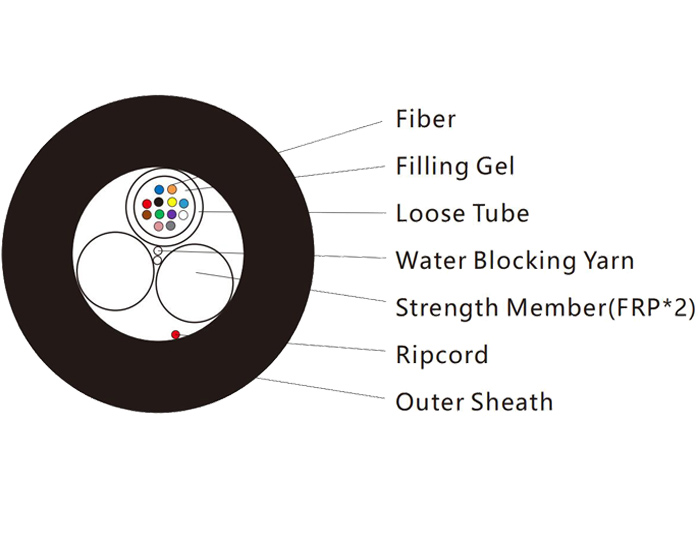

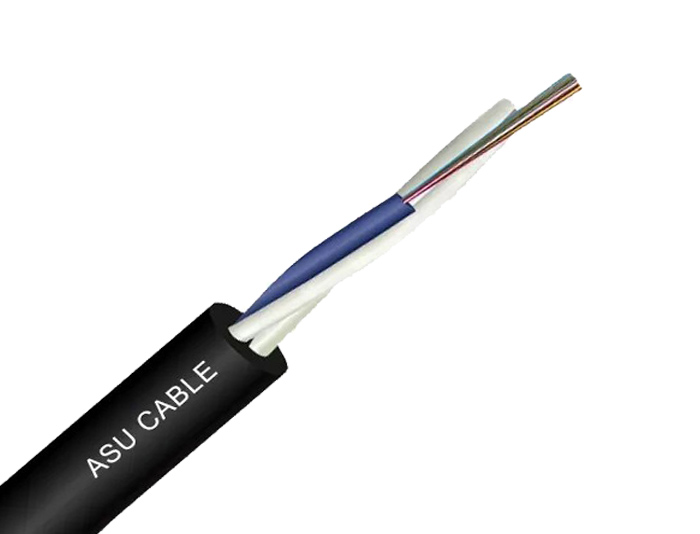

Mini ADSS (All Dielectric Self-Supporting) ASU 3 Strand Fiber Optic Cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound. The tubes (fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, It is covered with thin PE (Polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member. Finally, the fiber cable outdoor is completed with PE outer sheath.
Features:
3 stranded (up to 24 fibers), Gel-filled Cable.
Non-metallic armored or unarmored.
Two FRP as strength member to provide good tensile performance.
Good water penetration, mechanical and environmental performance.
Reinforced aramid yarn, Flat FRP or Round FRP armor providing good anti-rodent performance.
Crush resistance and flexibility.
Loose tube filling compound.
Reasonable design, precise residual length control and cabling process.
make the cable have excellent mechanical and environmental performance.
Applicable for short span aerial and duct installation.
In accordance with IEC, ITU and EIA standards.
Application:
All dielectric self-supporting aerial.
