Description:

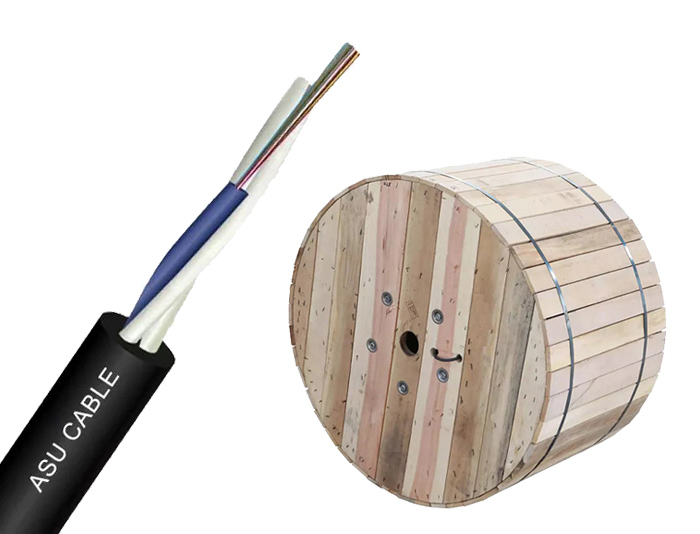

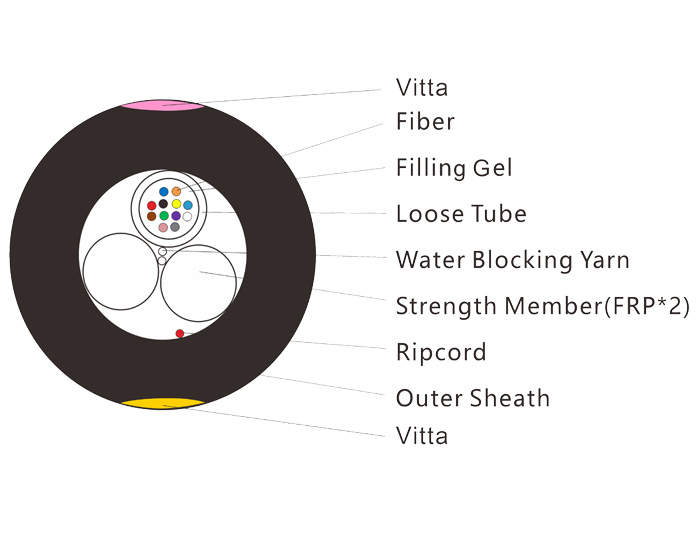

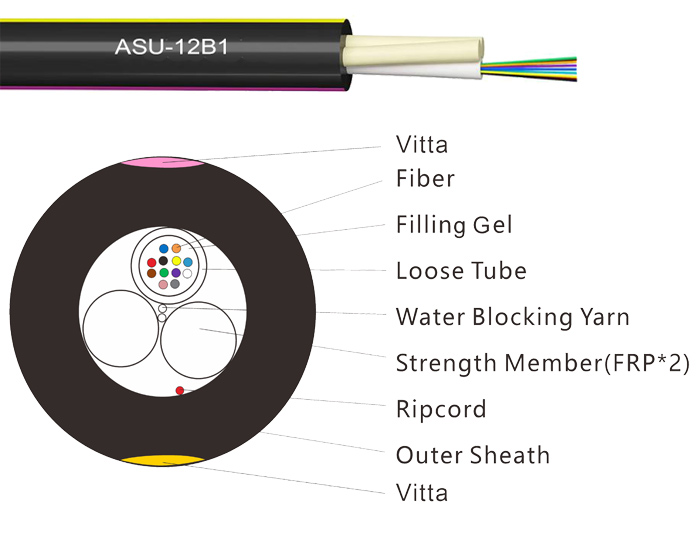

Mini ADSS (All Dielectric Self-Supporting) ASU 3 Strand Fiber Optic Cable With Color Stripe is stranded loose tube cable. Fibers, 250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound. The tubes (fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, Finally, the fiber cable 12 core is completed with PE outer sheath.
Features:
3 stranded (up to 24 fibers).
Non-metallic armored or unarmored.
Two FRP as strength member to provide good tensile performance.
Good water penetration, mechanical and environmental performance.
Reinforced aramid yarn, Flat FRP or Round FRP armor providing good anti-rodent performance.
Crush resistance and flexibility.
Loose tube filling compound.
With Red & Yellow color stripes on outer sheath or Customized.
Reasonable design, precise residual length control and cabling process make the cable have excellent mechanical and environmental performance.
Applicable for short span aerial and duct installation.
In accordance with IEC, ITU and EIA standards.
Application:
All dielectric self-supporting aerial.
