Description:

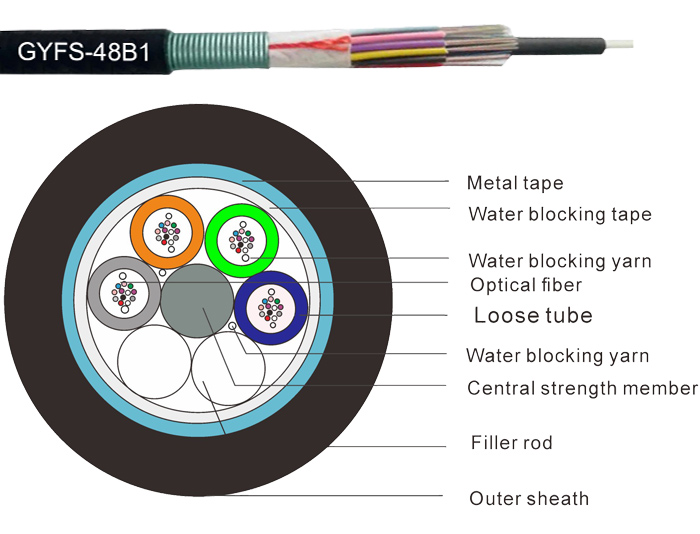

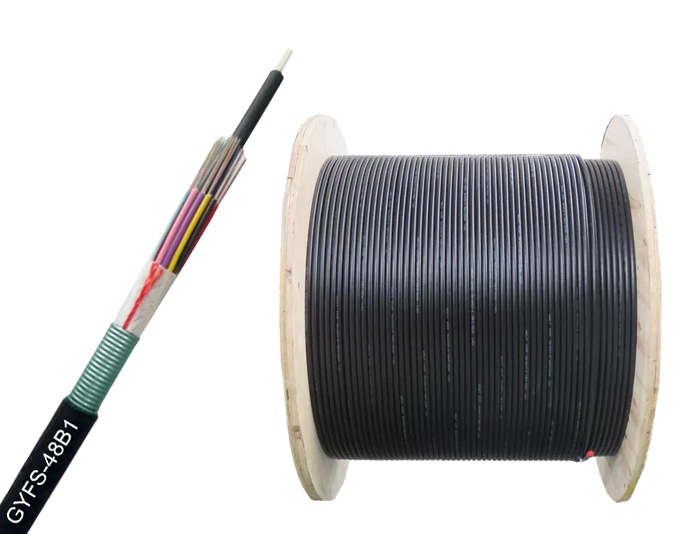

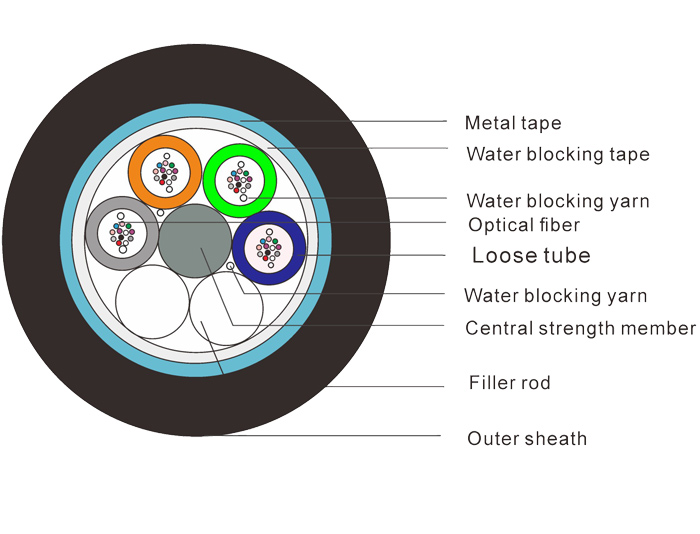

GYFS, Outdoor Steel Tape Armored Gel-Free (All Dry) Loose Tube Optical Fiber Cable is stranded loose tube. Fibers, 250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-blocking yarn. The tubes (fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. The cable core is wrapped with water-blocking tape, then the tube is wrapped with a layer of corrugated steel tape longitudinally. Finally, All Dry cable is completed with a PE outer sheath.
Feature:
S-Z stranded, Water-blocking material.
Gel-Free (All Dry) Cable, Fiber Optical Cable Core up to 144 fibers.
Metallic, non-metallic armored or unarmored.
FRP for center strength member.
Good water penetration, mechanical and environmental performance.
Reinforced aramid yarn, Flat FRP or Round FRP armor providing good anti-rodent performance.
Crush resistance and flexibility.
Loose tube filled with water-blocking yarns.
All Dry type cable core.
Single PE Outer Sheath.
Reasonable design, precise residual length control and cabling process make the cable have excellent mechanical and environmental performance.
In accordance with IEC, ITU and EIA standards.
Application:
Duct or Non-self supporting aerial.
