Description:

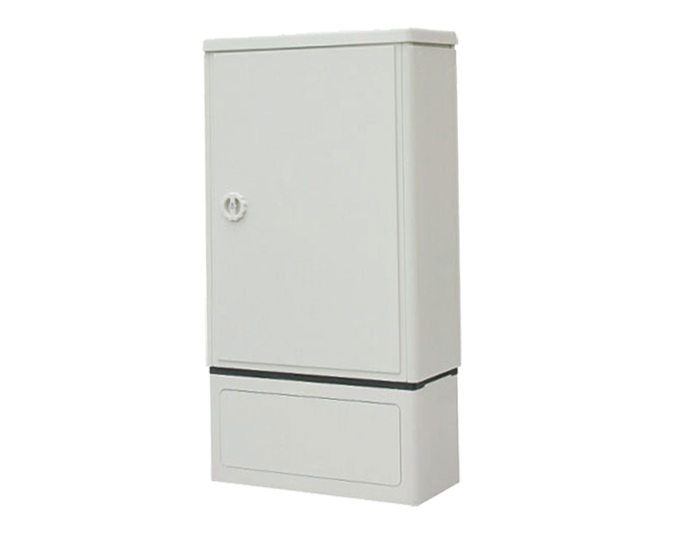

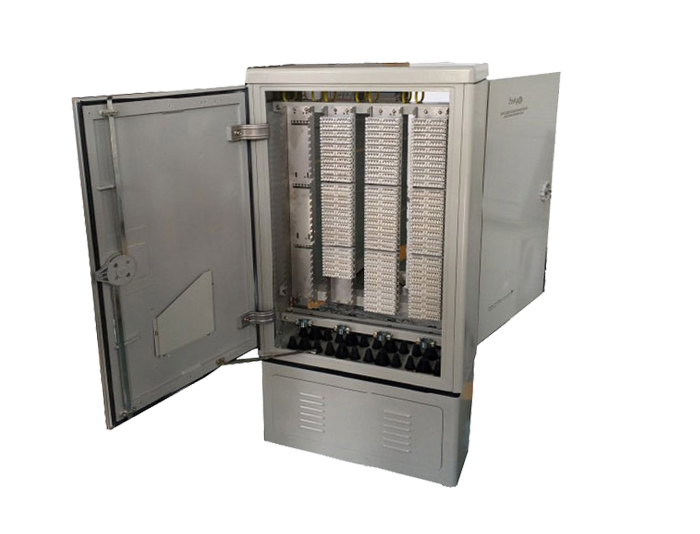

RGP-TSF-204A Copper Cross Connection Cabinet and cable terminal blocks also called Krone Box which is designed to provide a flexibility point between primary and secondary cable in the local line network, the cross cabinet are consist of shell, door, internal frame, base plate, and base, which are erected, a reconstructed, horizontal concrete base using four foundation bolts.
The Krone Cabinet offers the primary cables are partly pressure-monitored so that suitable cable heads must be used. Line protection against over-voltage and electromagnetic interference require suitable earthing equipment for connecting cable screens and over-voltage arrestors. Secondary cables are further distributed either in underground junctions or above ground in connection and distribution boxes.
MJADOM offers a full range of Krone Cabinet 1200 /2400 Pair Outdoor Cross-Connection Cabinet, LSA-PLUS Disconnection Module & Connection Module & Dp Box.
Features:
The krone data cabinet could be used as a distribution box for copper and FO cables.
The krone communication cabinet is made up of glass-fiber reinforced polyester (GRF, the percentage of glass fiber ≥ 20%).
Available with or without ventilation, depending on the application.

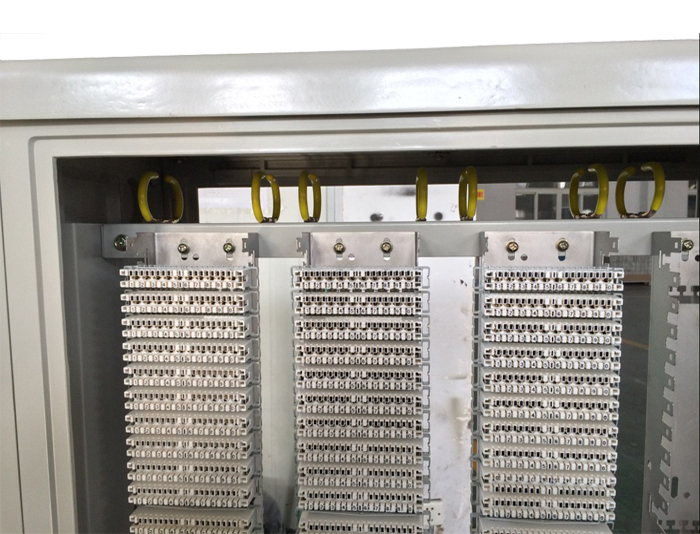

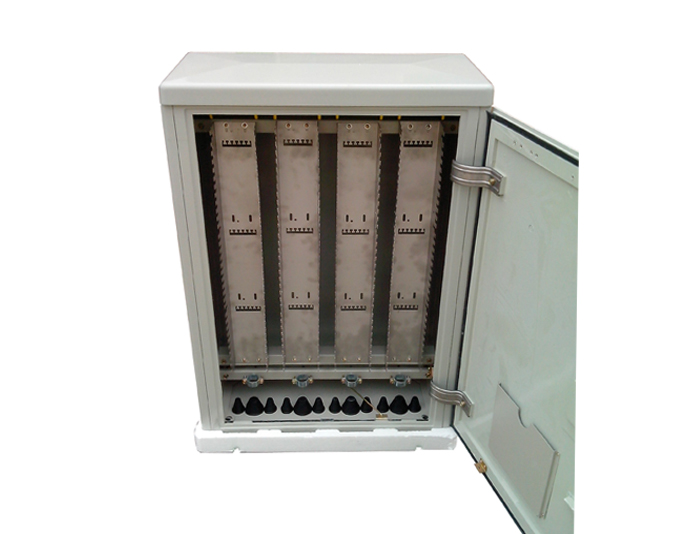

Pre-install 1x4 or 2x4 Back-Mounting frames 2/10.
The door is designed as a slot-in unit.
The cabinet with the plinth comes ready for installation.
Pre-stressed break-off joints reduce repair costs and downtime after an accident because of the underground base.
Design to facilitate ease of installation.
Hinges can be fitted on the right or left.
One-door and two-door versions available.
Product Details:
| Type | RGP-TSF-204A | Style | 1200 Pair Outdoor Cross-Connection Cabinet |
| Transmission and reliability | Exceeds Cat.5 (100 Mhz) | Dimensions (HxWxD) | 57"x29.5"x12.6" (Size: 1450x750x320mm); |
| Flammability class | UL 94V-0 | Colour | Grey (similar to RAL 7038) |
| Tensile strength | ≥ 70 N/mm² | Bending Strength | ≥ 120 N/mm² |
| Impact Strength | ≥ kj/m² | Young's Modulus | ≥ 5x103 N/mm² |
| Roof | ≥ 3000 N | Protection class | IP65 |
| Cantilever strength | ≥ 1500 N | Max. Load of Hinges And Door Stop | ≥ 200 N |
| Max. Door Locking Force | ≥ 200 N | Max. Locking Force of Door Catch | ≥ 200 N |
| Material | Housing: Glass-Fiber Reinforced Polyester; Back mount frame: Stainless steel | Capacity | 1200/2400 Pair |
Application:
Telecommunication Networks.
In cross-connection cabinet.
In building entrance distributors.
In-floor distributors or in PABXs for voice and data distribution.
