Description:

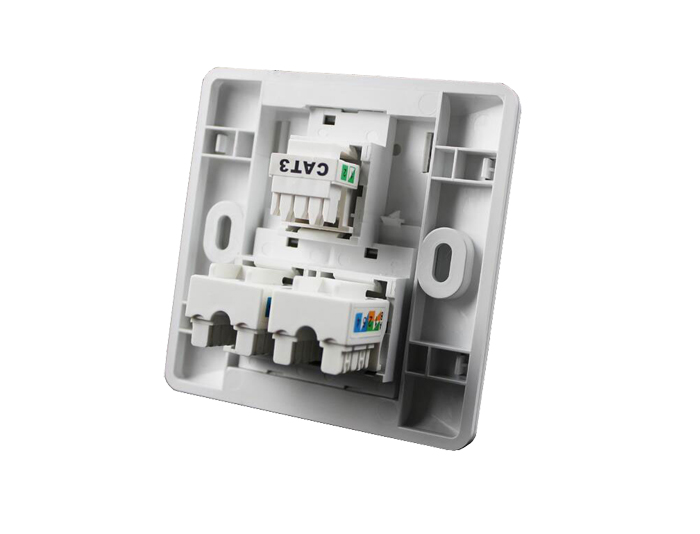

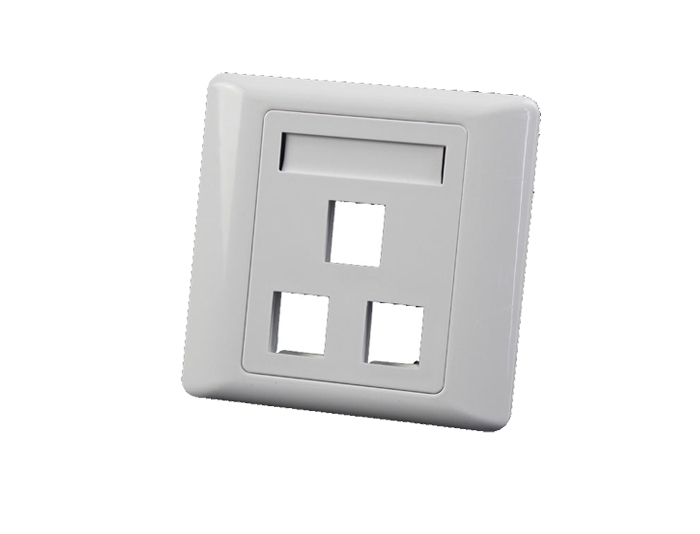

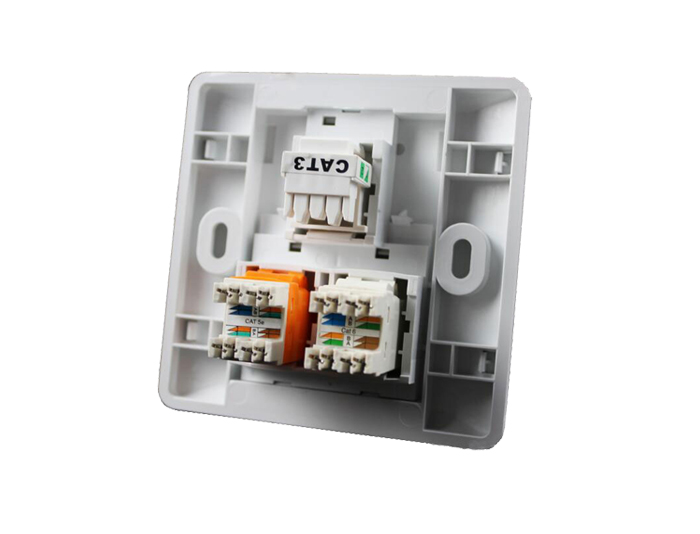

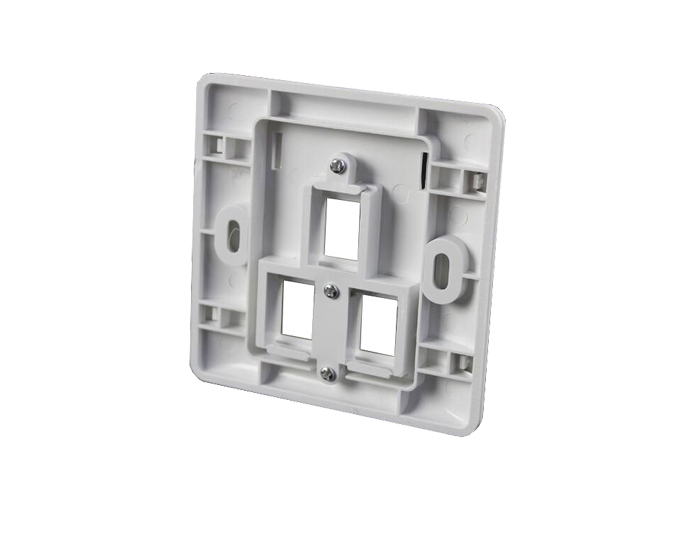

The faceplates also known as Faceplate RJ45 or Wall Plates, MJADOM offers faceplates that are configured to fit a standard single gang outlet box. They come with two-port which can be configured with modular connectors for voice, data, audio, video, and fiber-optic connectivity. Also offers a full range of colored Keystone Jacks to help identify the port to the workstation. These faceplates are made with tough Polycarbonate (PC) plastic for long-lasting use and comply with UL 94 plastics flammability standard.
Faceplate Outlet shall be applied together with all kinds of Modular Jack, Available in single port, double ports, triple ports, quad ports, and six ports.
Keystone faceplates are wall mount fittings that house Krone 110 RJ45 data sockets, USB, HDMI, RCA and 3.5mm Stereo audio sockets.
Features:
Faceplate Outlet designed to support the distribution of voice, data, and other communication.
Rugged and durable construction.
Works with all RJ45 Keystone Jacks, USB, HDMI, RCA modular connectors that easily snap-in.
Available in single port, double ports, triple ports, quad ports, and six ports.
Impact resistant plastic - Polycarbonate(PC).
Exceeds ANSI/TIA-568-C requirements for permanent performances.
Technical Details:
| Material | |||
| Plastic | Polycarbonate PC, UL94V-0 | Color | White or Ivory |
| Module Accept | RJ45 data sockets, USB, HDMI, RCA | Screws | M-3.5mm |
| Environmental Conditions: | |||
| Storage Temperature | -60℃ ~+80℃ | Operational Temperature | -10℃ ~+60℃ |
| Relative Humidity | Maximum Noncondensing 93%. | ||
Application:
Compatible with keystone jack wall plates.
Compatible with keystone jack surface mount boxes.
Telecommunication or Equipment Room Inter-connect or cross-connect termination.
