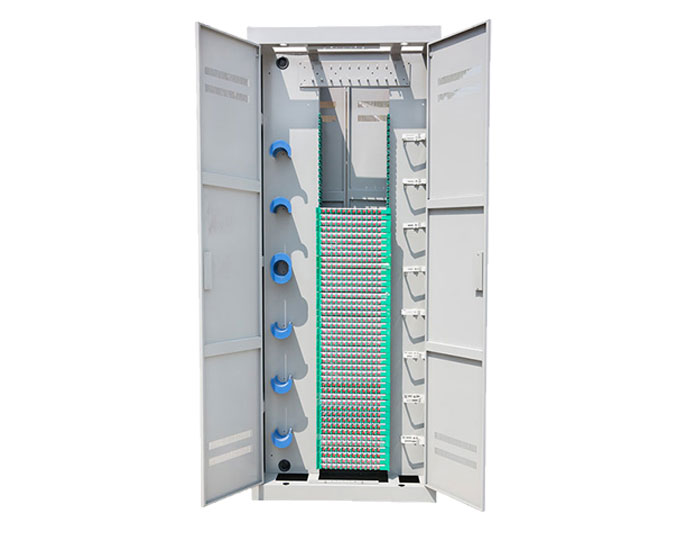

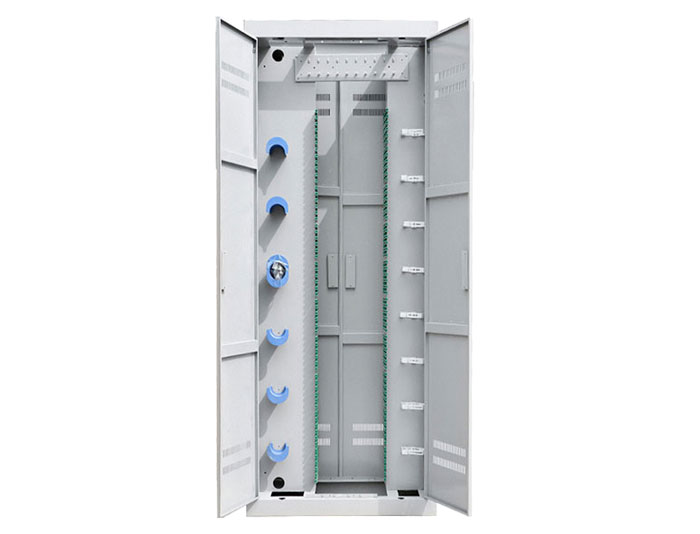

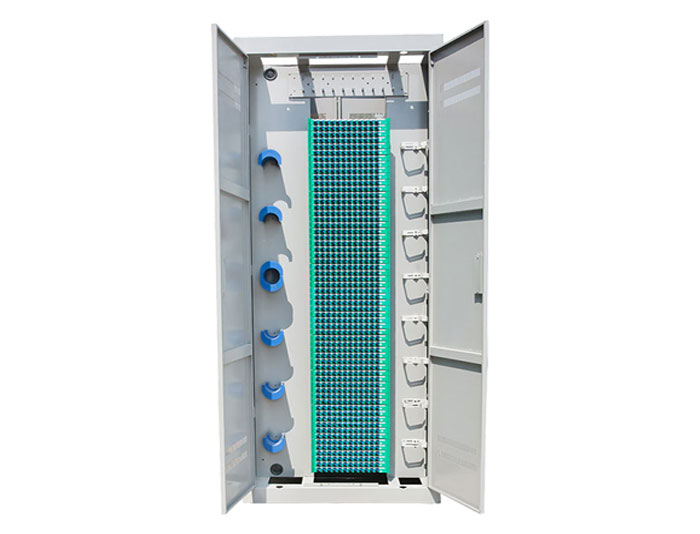

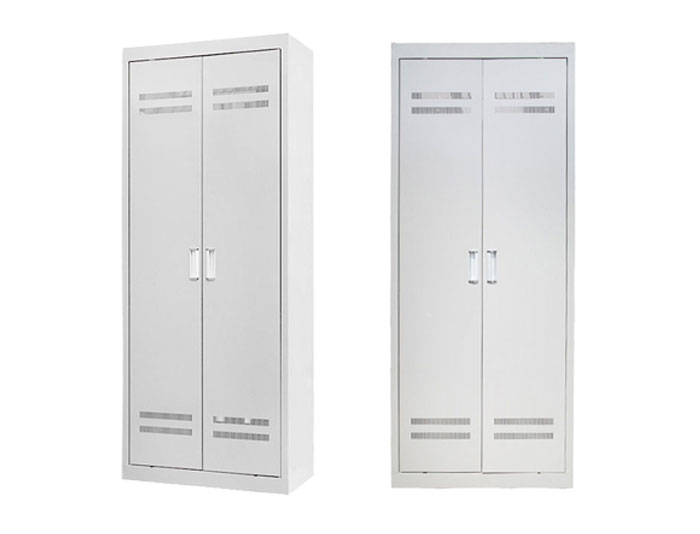

GPX109B, As an integrated splicing and distribution frame, it is applicable to central offices and optical branches, it serves such functions as leading in fixing and protecting optical cables, storing and managing pigtails, and fixing and cross-connection. Meanwhile, such value-added modules as optical splitters and wave-division multiplexers ( WDM ) can be installed as a requirement by customers.
It is used for the intermediate distribution of optical cables, implementing cross-connection and route configuration of optical fibers between optical transmission nodes. After the optical introduction unit is installed, it can serve as the optical distribution cabinet for either splicing & distribution. It is a high-density, moderate-capacity, and front-facing operation optical distribution cabinet, used for splicing and distribution or intermediate distribution.
Buy High-Performance Optical Distribution Frame (Rack Mount /Wall Mount, Fiber Distribution Panel, Fiber Patch Panel, 12-144 Fibers, LC/SC adapter ) for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.
Feature:
Material: Cold-Roll Steel Box and anticorrosive paint (housing).
Fully-closed structure with the advantages of good performance of dust-proof, pleasing, and neat appearance.
Fibre-management-unit structure, modular design, flexible configuration, convenient installation.
Enough space for fiber distribution and storage space and very easy for installation and operations.
Fully front side operation, convenient for maintenances.
The Cable inlet system is installed on the top of the frame which has excellent performance for fixing the cables.
Cables can be inlet either from the top or the bottom of the frame subject to different requirements.
This frame is suitable for both common bundle cables and ribbon type cables.
Reliable cable fixture cover and earth protection device provided.
Integrated splice and distribution unit is adopted. Each unit holds up to 12 FC adapters and up to 24 SC/LC adapters. All units have specially designed slots and can be easily pulled out for operation at any time.
Fiber separation hook of the splice and distribution module (the hook on the left) can be disassembled to fit for both wide and narrow structure frames.
Up to 6 units make up a module.
The worktable is provided if one module contains 6 units.
All adapters are installed 30 degrees inclining to the operation surface which is easier for connecting and also protect installers’ eyes from the lights.
No screw needed for installing adapters.
Reasonable fiber route, ensure fiber bending radius larger than 37.5mm at any position.
Working Environment:
Working temperature: - 5°C ~ + 40°C.
Relative humidity: < 85% ( +30 °C ).
Atmosphere pressure: 70 kpa ~ 106 kpa.
Storage temperature: - 25°C ~ + 55°C.
Technical Parameters:
Fiber Connector Insertion Loss: ≤ 0.3 dB.
Fiber Connector Return Loss: ≥ 50 dB (UPC); ≥ 60 dB (APC).
Flammability: ABS, UL 94V-0 standard.
Application:
FTTX application.
Consolidation point.
Datacenter & Central Office.
Cellular tower base station.
LAN & WAN projects.
Complied Standards :
Meet national standards, such as
YD/T925-2009, GB/T2423-2008, GB/T3873-1998, GB/T 9286-1998, and
international standards, such as IEC 61300-3-15, IEC 61300-3-16, IEC
61300-3-17, IEC 61300-3-23, etc.
