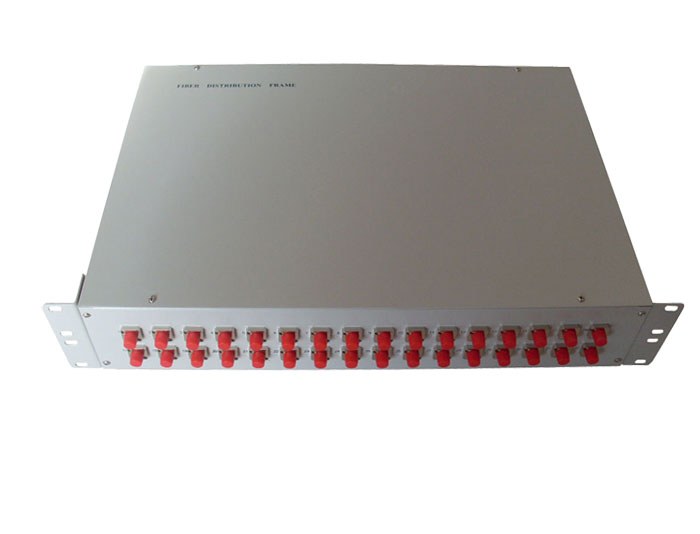

19 Inch Fixed 48 Port Fiber Optic Patch Panel GZFB-2055A

Publisher: MJADOM

Author: Andy

RGP-GZFB-2055A  19 Inch Fixed 48 Port Rack Mount Fiber Patch Panel also called Fiber Termination Box is a fiber organization solution that is mounted in place and does not slide out. The patch panel is made of 16 gauge cold rolled steel(CRS) with a black or grey powder-coated finish. MJADOM provides 12 core to 96 core Fiber Patch Panel also called Fiber Termination Box which is made up of SPCC-Cold Rolled Steel Steel.


RGP-GZFB-2055A  19 Inch Fixed 48 Port Rack Mount Fiber Patch Panel also called Fiber Termination Box is a fiber organization solution that is mounted in place and does not slide out. The patch panel is made of 16 gauge cold rolled steel(CRS) with a black or grey powder-coated finish.


It provides physical security and order for fiber network connections, allowing for easier terminations, superior cable management, and greater capacity. This well-established product line of ours provides cost-effective and high-density options for just about any fiber network.


Buy Fiber Patch Panel (Rack Mount /Wall Mount, Fiber Termination Box, 12-96 Fibers, LC/SC adapter ) for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.


Features:

Fixed type tray to access pigtails.

Fixed type rack mount bracket to adjust the depth.

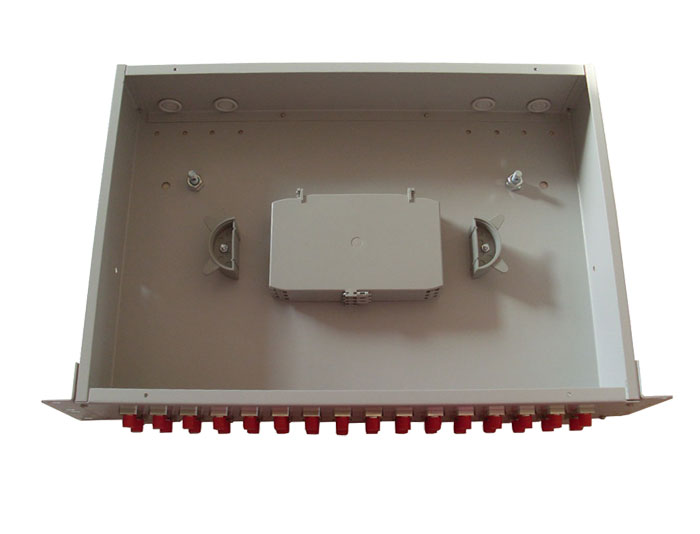

Welded screw in the middle of inner surface for splice cassette.

Standard color is RAL 9005 black ; RAL 7035 light grey is also available.

Cable clamps on the inner surface for fixing cable.

Front and back flexible wire guard.


Installation hardware and instruction manual included.

Compatible with 19 and 23 inches racks and cabinets.

Fixed does not slide out structure, Pre-loaded Adaptor Plate, convenient for use, maintenance and operation.

Unified rack, a variety of adapter panels can be chosen, flexible for modification and expansion.

Application to FC (D type), SC/ LC (duplex) and other adapters by choosing different adapter panels.


Performance:

Operating temperature: -5℃~+40℃(Indoor type),-20℃~+60℃(Outdoor type).
Ambient humidity: ≤95%(+40℃).
Atmospheric pressure: 70 kPa~106 kPa.
Insulation resistance: not less than 2 x 104 M Ω / 500 V (DC).


Withstand Voltage: not less than 3000V(DC/1min.
Insertion loss (dB): ≤0.3dB ;

Return loss (dB): PC type≥45dB, UPC type≥50dB, APC type≥60dB.

Application:
FTTX application.
Consolidation point.
Datacenter & Central Office.
Cellular tower base station.
LAN & WAN projects.


Complied Standards :
Meet national standards, such as YD/T925-2009, GB/T2423-2008, GB/T3873-1998, GB/T 9286-1998, and international standards, such as IEC 61300-3-15, IEC 61300-3-16, IEC 61300-3-17, IEC 61300-3-23, etc.


Configuration

Order Info :

NameTypeDimension (HxWxD)Adapter PanelMax. Capacity(Cores)Max diameter of cable(mm)Working EnvironmentNote

19 Inch Fiber Optic

Patch Panel

RGP-GZFB-2055A 485×220×50 (1U~12U)Pre-loaded Adaptor Plate 288 Cores φ22 Indoor

Pre-loaded Adaptor Plate /

Without Separate Dust Cover
