128 Core Mechanical Sealing TELEFONICA Dome Fiber Splice Closure TSB-501A

Publisher: MJADOM

Author: Andy

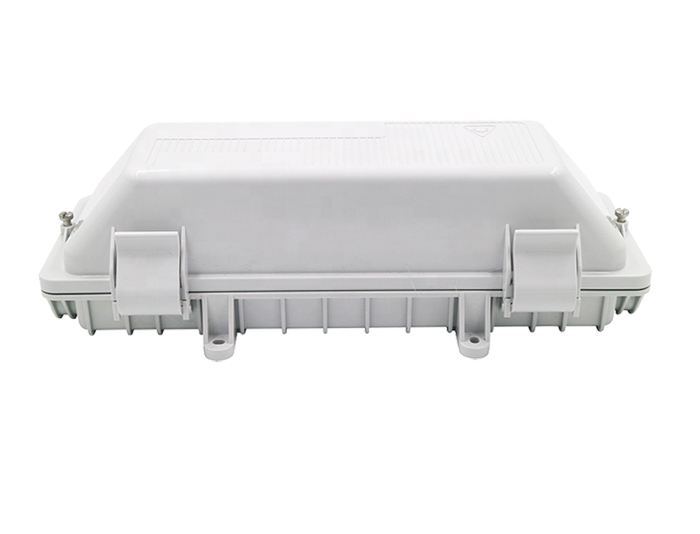

RGP-TSB-501A 128 Core Mechanical Sealing TELEFONICA Dome Fiber Splice Closure is a multifunctional fiber optic cable splicing box, which aims to provide and manage maximum numbers of fiber terminations in a limited space. Equipped with the optical cable docking function of the optical cable splicing box and the fiber optic cabling, branching, and distribution functions.



Description:

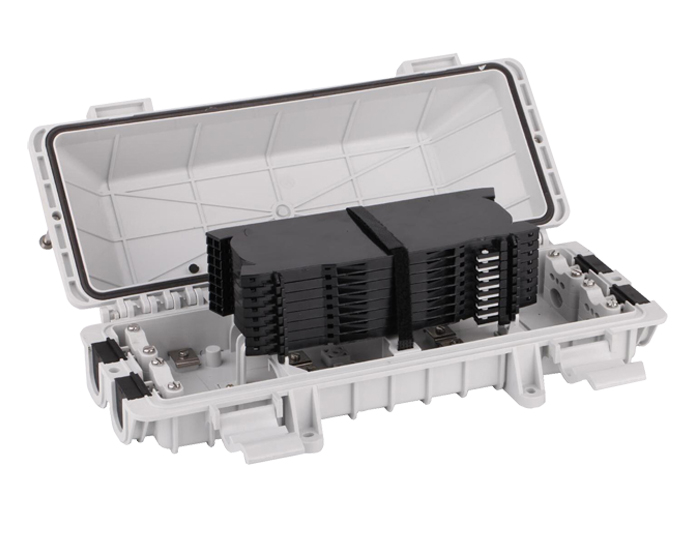

RGP-TSB-501A 128 Core Mechanical Sealing TELEFONICA Dome Fiber Splice Closure is a multifunctional fiber optic cable splicing box, which aims to provide and manage maximum numbers of fiber terminations in a limited space. Equipped with the optical cable docking function of the optical cable splicing box and the fiber optic cabling, branching, and distribution functions. Can be used for wall hanging, pole holding, and overhead installation. The Fiber Enclosures can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.

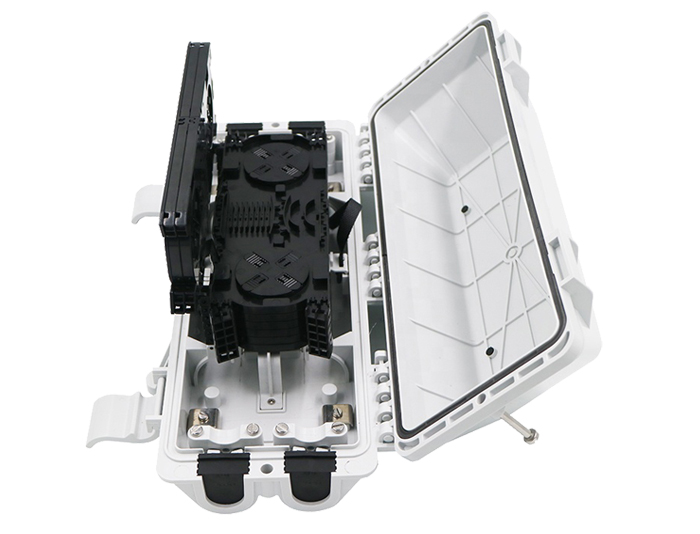

Horizontal Fiber Optic Closure (RGP-TSB-501A), is made of plastic molded parts and has a new gasket seal making them ideal for a wide variety of applications. TSB-501A Fiber Optic Closures adopts 4 Rubber Round Port design, 2 Inlet & 2 Outlet. A reusable gasket makes tool-less re-entry easy, while hinge design provides greater security than that of dome closures, you can re-enter, re-configure and add or remove cables in all outside plant and inside plant environments.



Feature:



Fully enclosed structure.

Fiber Closure Material: PC+ABS Alloy.

Sealing Structure: Mechanical Sealing.

Closure Seal Material: Thermoplastic rubber.

Waterproof design, with a protection level of IP67.

Impact test: IK09, tensile force: 1000N, completely sturdy design.

Integrated with flap-up splice cassette and cable management system.

The bending radius of the optical fiber should be controlled above 40mm.

Multiple fiber optic cable plugs can be selected to adapt to various fiber optic cable docking operations.

8 pieces of 16-core optical cable fusion discs, with a maximum fusion of 128 cores.

1x8 PLC splitter can be installed as an option in each splicing tray.



Hinged tray design, Splice trays can be easily increased and reduced according to capacity.

Unique strength member clamp assembly & Spacious fiber management areas.

Compatible with most common cable types: e.g. Loose tube, central core, slotted core, ribbon fiber.

Standardized dimensions, according to the recommendations of TELEFÓNICA, approved for the main operators.

Reusable & Re-entry Test.

RoHS compliance.



Application:

FTTH access network.

Telecommunication Networks.

Data communications Networks.

Local Area Networks.


Configuration

Technical Specification:


MaterialPC+ABS AlloyDimension (W*H*D)380mmx180mmx98mmMax Splicing (Core)128 Core
IP RateIP67Weight1.53kgPLC Splitter1x8 or 1x16 PLC Splitter
Insertion loss≤0.15dBUPC return loss≥50 dBAPC return loss≥60 dB
Working temperature-25°C - 60°CRelative humidity5 to 95% relative humidityAtmospheric pressure70KPa~106 KPa
Max. diameter of cable(mm)1 uncut of port can support Φ8~16 mm; 2 round ports for distribution cable Φ8~16.5mm;

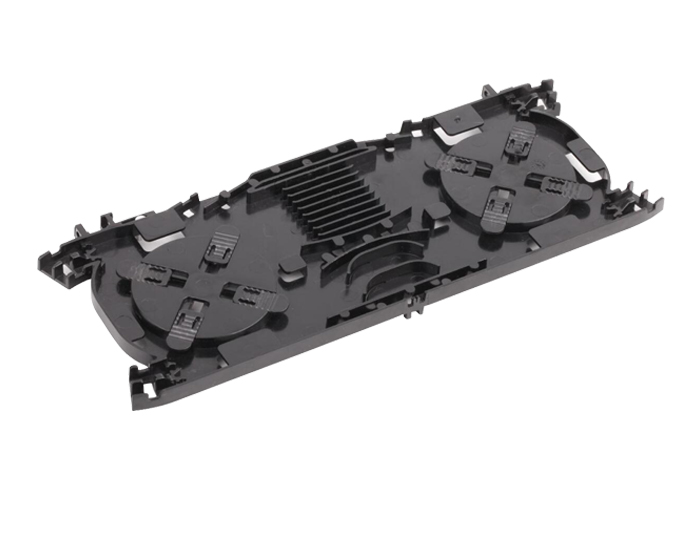

Splice Tray:


ItemSplicing tray APLC Splitter
Dimensions(H x W x D)210mmx80mmx10mm60mmx7mmx4mm
Net weight (unit: kg)130g70g
ColorBlackBlack, G657A1
MaterialNew ABSStainless Steel+G657A1
Splicing capacity of a tray(cores)16F, No PLC SplitterSplice 96 Fibers, (6 trays,16 fiber/tray)8 PCS 1x8 PLC Splitter16 pcs 1x8 PLC Splitter



Configuration:


ModelCapacityDimensionPLC splitterNumber and size of cable entriesPCS/CartonG.W/CartonSize of Carton
 RGP-TSB-501A  Splice 128 Fibers(8 trays,16 fiber/tray)  380mmx150mmx98mm8 pcs 1x8 PLC Splitteror16 pcs 1x8 PLC Splitter4 Ports X Ø 22mm (2 in 2 out)Accessory2 Ports X Ø 22mm+2xØ 7mm; 5 PCS 20 KGS 590mmx320mmx620mm
