Description:

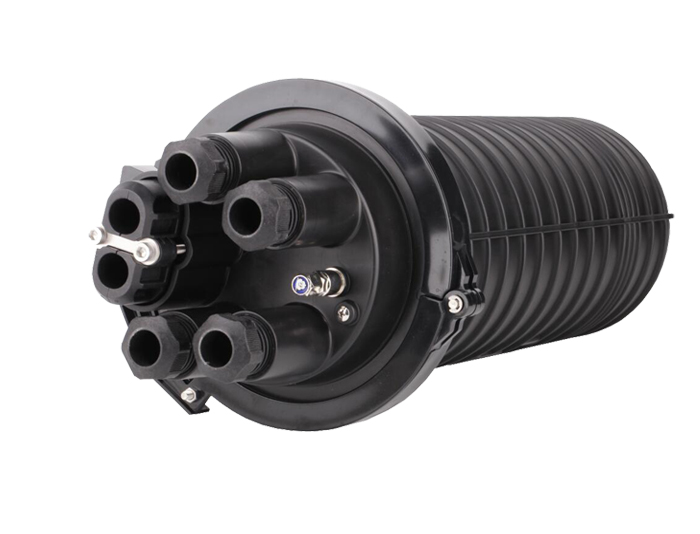

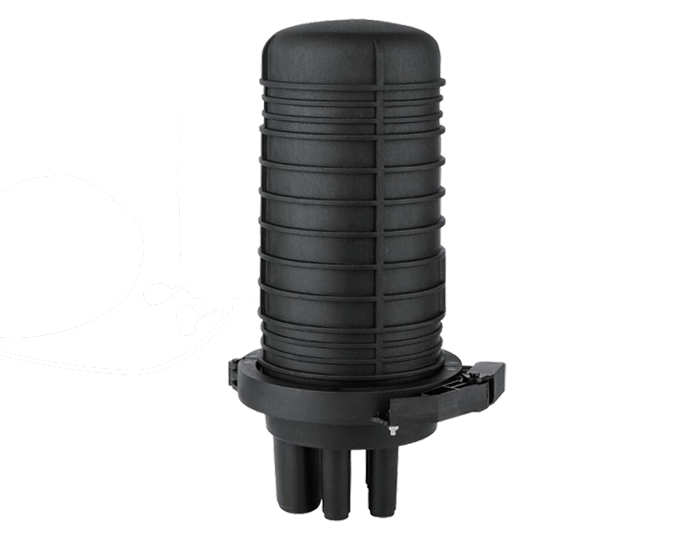

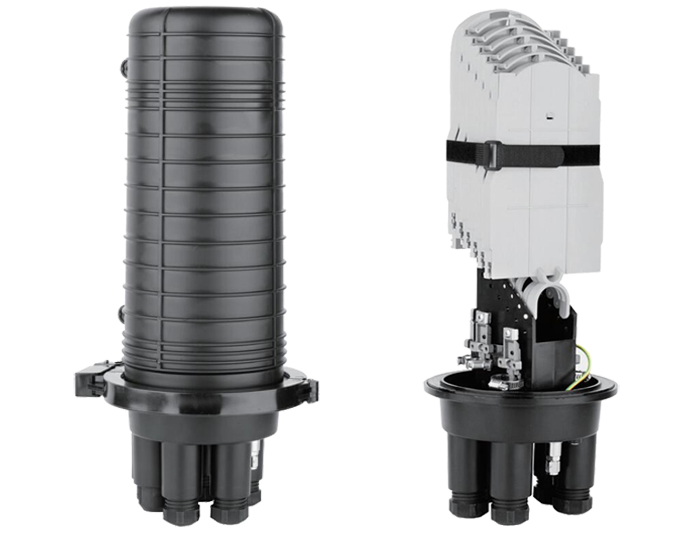

RGP-TSB-206A 144 Core Mechanical Sealing Dome Fiber Closure has one oval port for express cable applications and four round cable ports, the dome fiber optic splice closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes mechanical sealing technology for cable sealing which helps provide a watertight seal.

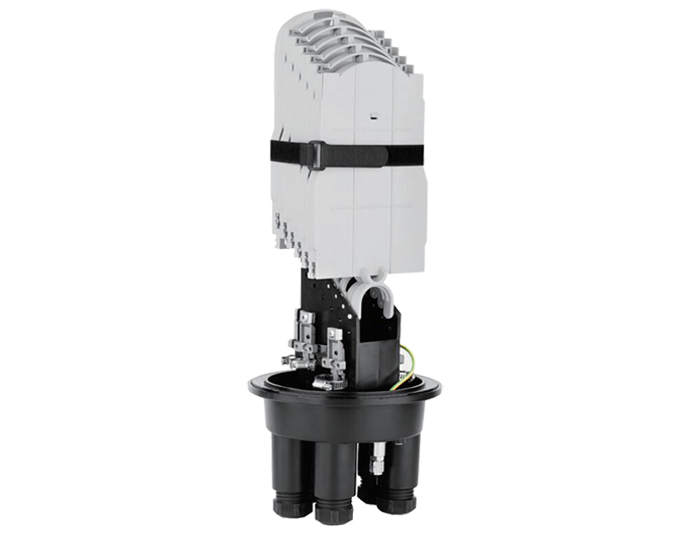

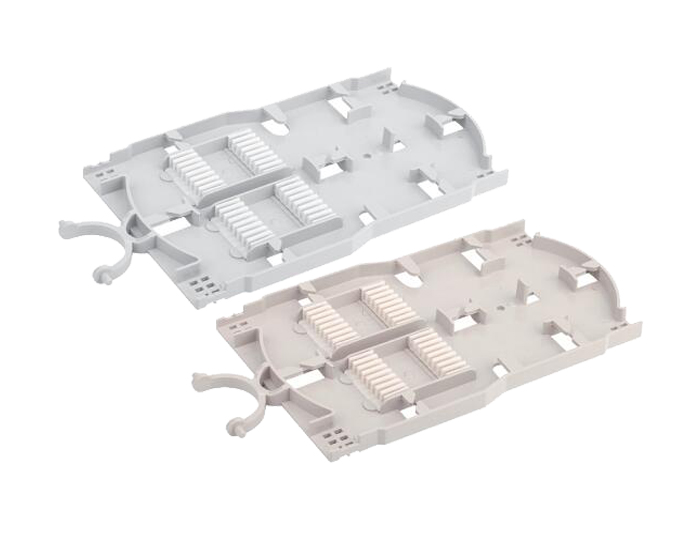

The Fiber Closure is equipped with a built-in fiber management system which provides a separate area for storing, fiber optic cabling, protecting, and "expressing" buffer tubes, singles and ribbon fibers. The hinged splice trays include a modular splice holder design which allows them to accept single fusion, single mechanical, and various mass fusion splice (4-,6-,8- and 12- fiber ribbon) by simply replacing the splice holder.
An optional built-in air valve is designed to allow flash testing.
Feature:
Closure Material : MPP-Modified P.P.
Closure Seal Material : Innovative latching / locking O-ring closure sealing system.
May be used for all fiber optic cable.
May be used for cut, uncut and taut sheath applications.
Sheath retention & central strength member fasten system included.
Built-in integral multipurpose fiber storage system.
Mechanical sealing Technology.
Splice Closure for Optical Fiber Cable.
1 oval hole and 4 round holes for cable entrance.
Maximum capacity : 144 Fibers (6 trays,24 fiber/tray)
Applicable Splitter: 1x8 or 1x16 PLC Splitter can be installed in each splice tray as option.
Hinged tray design, Splice trays can be easily increased and reduced according to capacity.
Modular splice holder design.
Installation and reentry with a minimum of tools.
Closure can be flash tested.
Protection class: IP68.
RoHS compliance.
Applications:
Aerial mounting, Wall Mounting, Pole Mounting, Buried, Under-ground, Vault, Handhole & Manhole.
