288 Core FTTH Fiber Optic Caja de Distribución F2E-503B

Publisher: MJADOM

Author: Andy


RGP-F2E-503B 288 Core FTTH Drop Cable Type Fiber Optic Caja de Distribución provides a high density wall mounted & pole mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.



Description :


RGP-F2E-503B 288 Core FTTH Drop Cable Type Fiber Optic Caja de Distribución provides a high-density wall mounted & pole mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting pole mounting. features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures.


The Caja de Distribución can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.



Feature:


Closure Material: Modified P.P.

Sealing Structure: Mechanical Sealing.

Closure Seal Material: Thermoplastic rubber.

180-degree access with buckled lock structure

Dis-mountable adaptor panel, Supports mid-span termination.

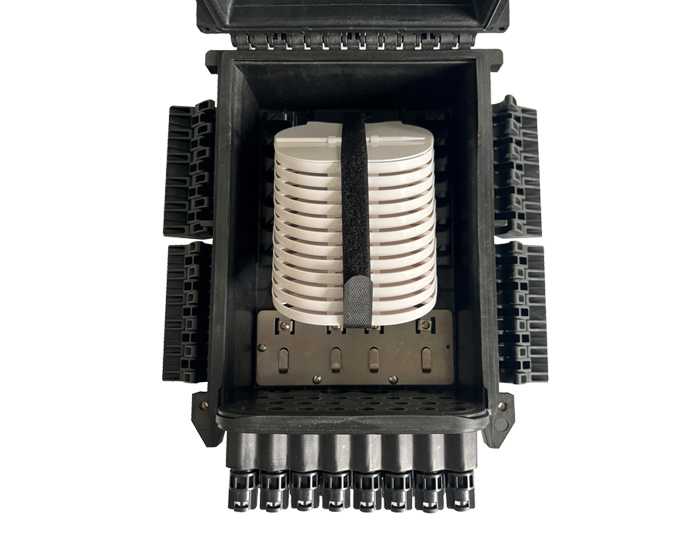

Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation, easy for maintenance and expansion.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.



Impact test:1K10. Pull Force:100N. Full Rugged design.

1*8 or 1*16 PLC splitter can be installed in each splice tray as an option.

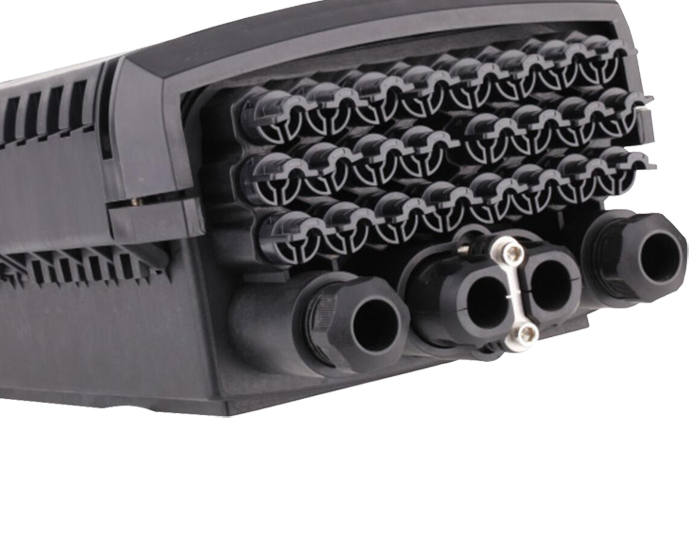

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 2 branch ports for distribution cable(Φ10-17.5mm),16 ports cable entrance for pre-terminated distribution cables.

Protection class: IP68.

RoHS compliance.



Applications:

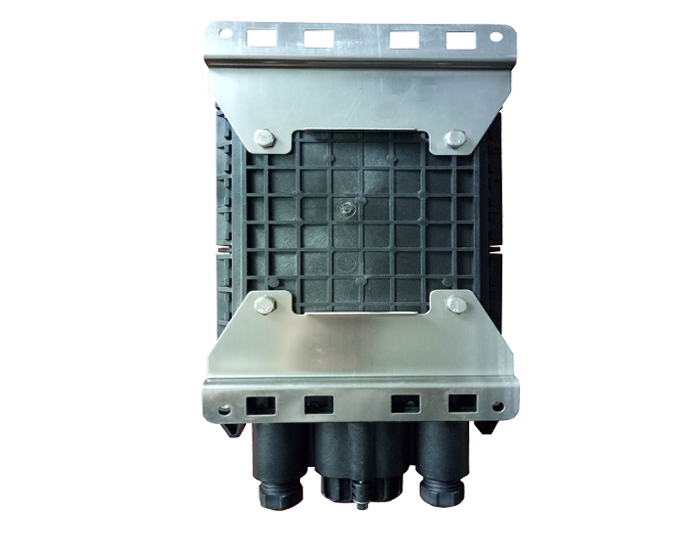

Aerial Mounting & Wall Mounting & Pole Mounting installation.


Configuration


Standard Accessories:


ItemNameUsageQuantity
1Fiber Optic Caja de Distribución CoverProtecting fiber cable splices in whole1 pc
2Fiber Optic Caja de Distribución BottomProtecting fiber cable splices in whole1 pc

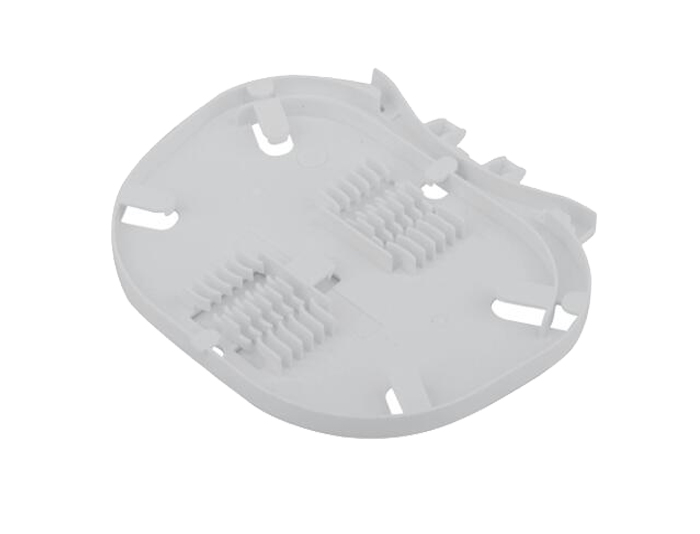

3Splice cassetteTo splice the fiber opticSame as capacity
4Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
5Nylon TieTo fix buffer tubes with fibers insideSame as capacity
6Grounding WireTo connect with grounding device1pc
7Abrasive ClothTo polish fiber optic cable1pc
8Labelling PaperTo label fibers1 set
9Buffer TubeTo protect fibers and be fixed on splice trays1pc
10Installation bolts and nutsTo fix splice cassette1 set



Shipping Infomation:



SpecificationSizePcs/CartonWeight
Internal Carton Box390mmx250mmx155mm1 pc5.2 KGS
Outside Carton Box520mmx430mmx380mm4 pcs21 KGS



Order Information :


Model No.Spliced fiber storage capacitySize(mm)Height * diameterCable portsMax. diameter of cable(mm)Applicable Cable DiameterAdaptors
RGP-F2E-503B288 Splices (4*24 Splices)385mm*245 mm *150mm1 Uncut Port & 2 Round Port + 24 Drop Cable Outlet Ports1 uncut of port can support Φ10~17.5 mm;2 branch ports for distribution cable Φ10~17.5mm; 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable1 pc of 1*16 PLC Splitter or 2 pcs of 1*8 PLC Splitter




Related Products

32 Ports FTTH Fiber Optic Caja de Distribución F2E-503C
32 Ports FTTH Fiber Optic Caja de Distribución F2E-503C

RGP-F2E-503B 32 Ports FTTH Drop Cable Type Caja de Distribucion de Fibra Optica provides a high-density wall-mounted & pole-mounted solution for next-generation networks.

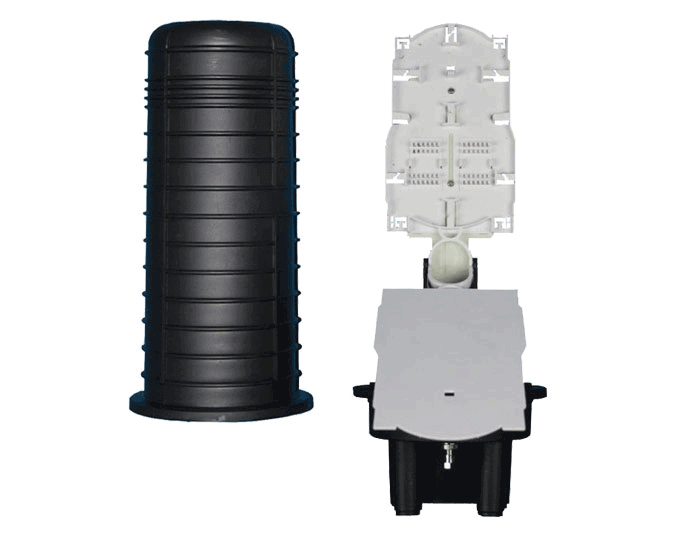

144 Core, 6 Trays, Heat Shrink Sealing Dome Fiber Optic Splice Closure TSB-201B
