Description :
RGP-F2E-503B FTTH Drop Cable Type Caja de Distribucion de Fibra Optica provides a high-density wall mounted & pole mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting pole mounting. features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration and extreme temperatures.
The Caja de Distribucion de Fibra Optica can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Closure Material: Modified P.P.
Sealing Structure: Mechanical Sealing.
Closure Seal Material: Thermoplastic rubber.

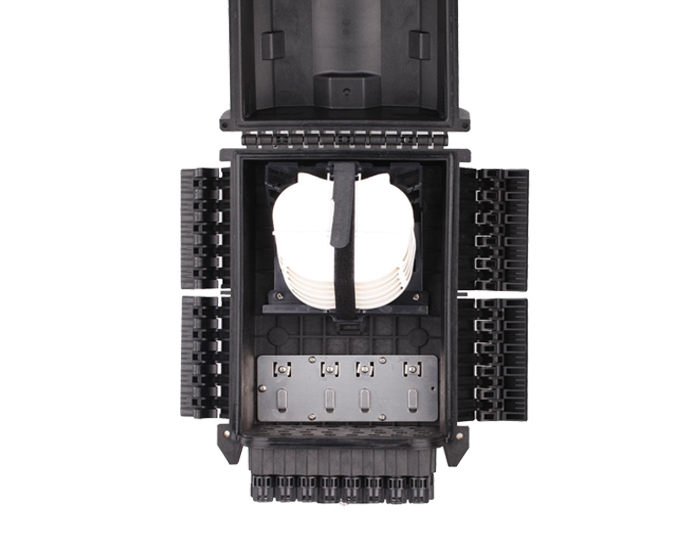

180-degree access with buckled lock structure
Dis-mountable adaptor panel, Supports mid-span termination.

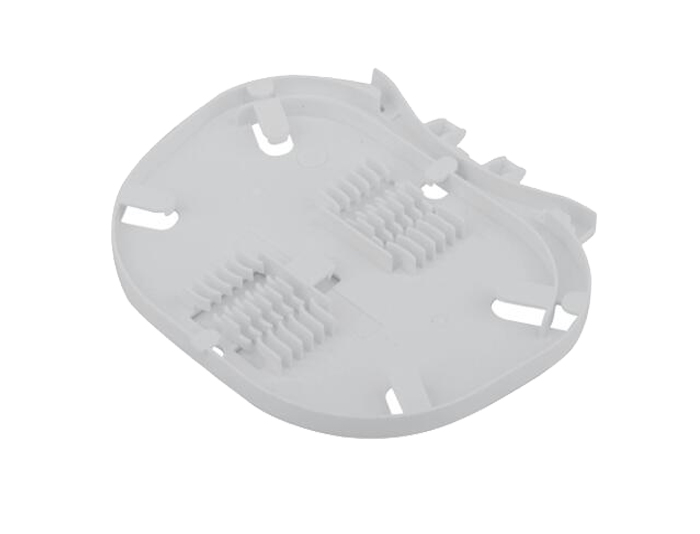

Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, easy for maintenance and expansion.
Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Impact test:1K10. Pull Force:100N. Full Rugged design.
1*8 or 1*16 PLC splitter can be installed in each splice tray as an option.

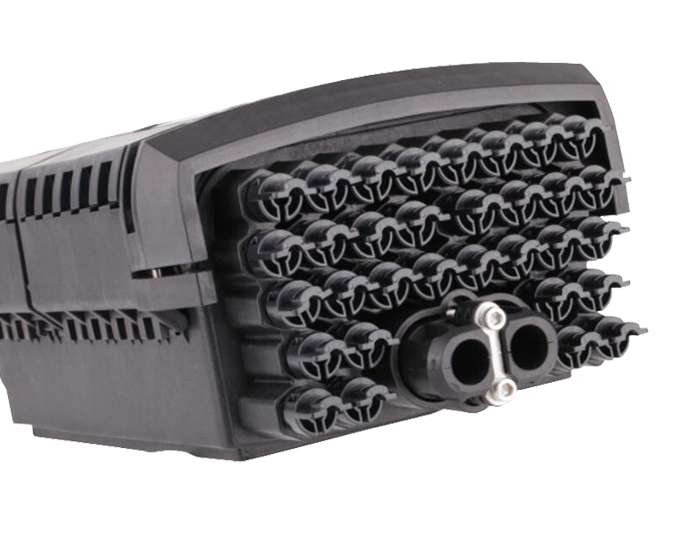

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 2 branch ports for distribution cable(Φ10-17.5mm),16 ports cable entrance for pre-terminated distribution cables.
Protection class: IP68.
RoHS compliance.
Applications :

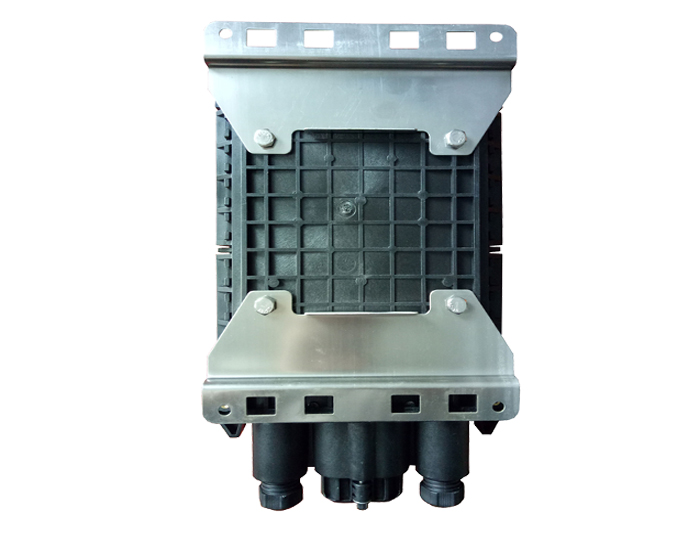

Aerial Mounting & Wall Mounting & Pole Mounting Installation.
