Description:

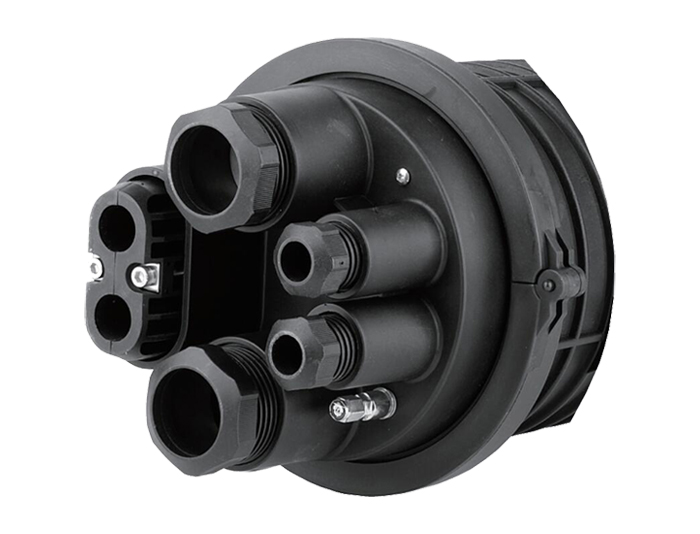

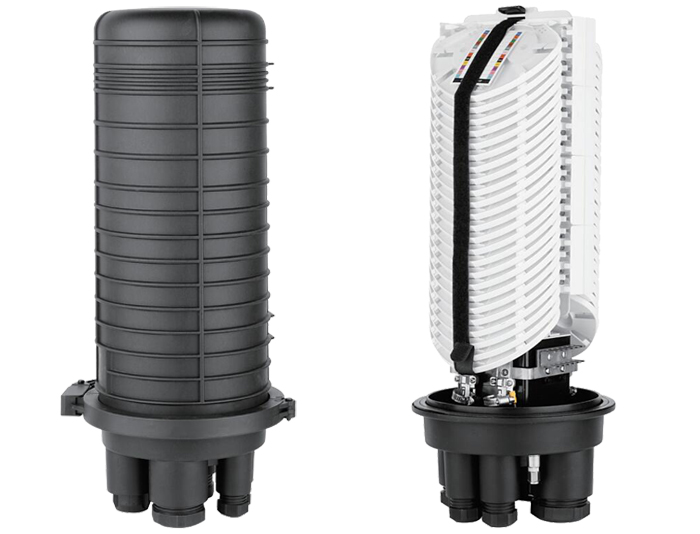

RGP-TSB-302B 576 Core Mechanical Dome Fiber Optic Closure has one oval port for express cable applications and 4 round cable ports (2xBig Round ports+2xSmall Round ports), the optical closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes Mechanical sealing technology for cable sealing which helps provide a watertight seal.

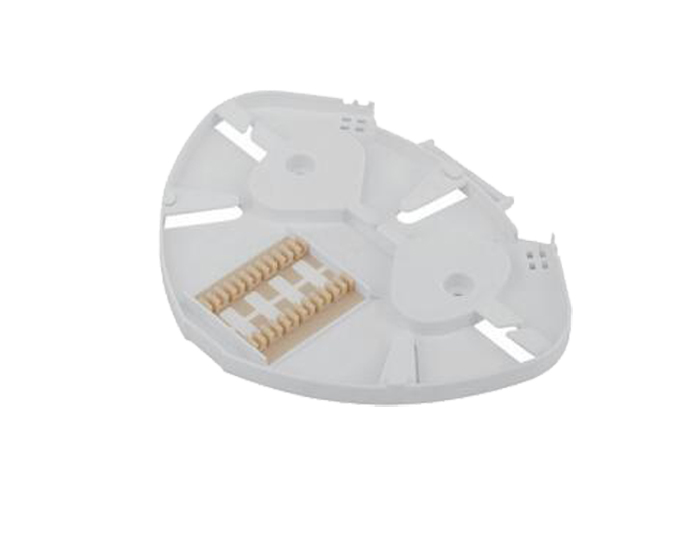

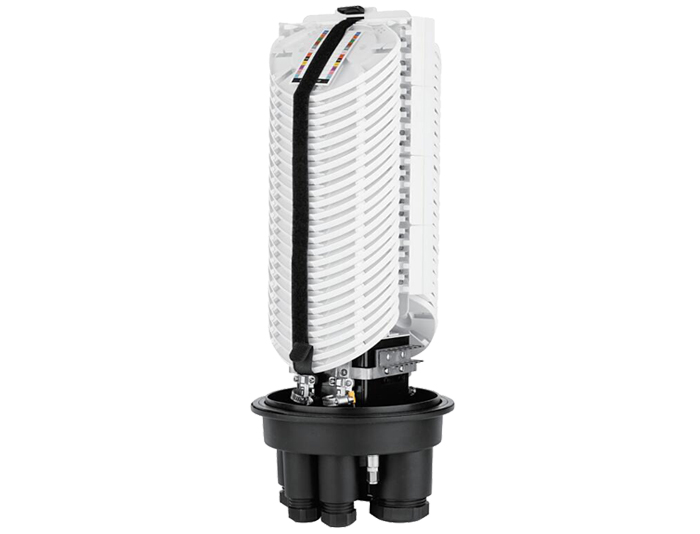

The fiber optic dome closure is equipped with a built-in fiber management system which provides a separate area for storing, fiber optic cabling, protecting, and "expressing" buffer tubes, singles and ribbon fibers. The hinged splice trays include a modular splice holder design that allows them to accept single fusion, single mechanical, and various mass fusion splice (4-,6-,8- and 12- fiber ribbon) by simply replacing the splice holder.
An optional built-in air valve is designed to allow flash testing.
Feature:
Closure Material: MPP - Modified Polymer Plastic.
Closure Seal Material: Innovative latching / locking O-ring closure sealing system.
May be used for all fiber optic cable.
May be used for cut, uncut and taut sheath applications.
Sheath retention & central strength member fasten system included.
Built-in integral multipurpose fiber storage system.
One oval hole and six round holes for cable entrance.
Suitable for cable diameter 5mm-38mm.
360 degrees access, fiber bending > 40mm.
Maximum capacity: 288F single (24Fx12pcs) or 864F ribbon.
Mechanical sealing cable seal.
Hinged tray design, Splice trays can be easily increased and reduced according to capacity.
Modular splice holder design.
Installation and reentry with a minimum of tools.
Closure can be flash tested.
Protection class: IP68.
RoHS compliance.
Applications:
Aerial mounting, Wall Mounting, Pole Mounting, Buried, Under-ground, Vault, Handhole & Manhole.
