72 Core Mechanical Dome Fiber Optic Closure TSB-204B

Publisher: MJADOM

Author: Andy

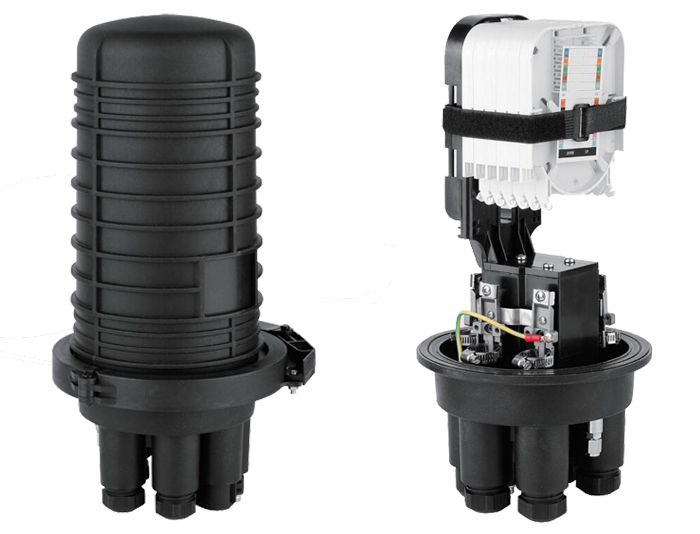

RGP-TSB-204B 72 Core Mechanical Dome Fiber Optic Closure have one oval port for express cable applications and four round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable technology for cable sealing which helps provide a watertight seal.



Description:


RGP-TSB-204B 72 Core Mechanical Dome Fiber Optic Closure has one oval port for express cable applications and four round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable technology for cable sealing which helps provide a watertight seal.

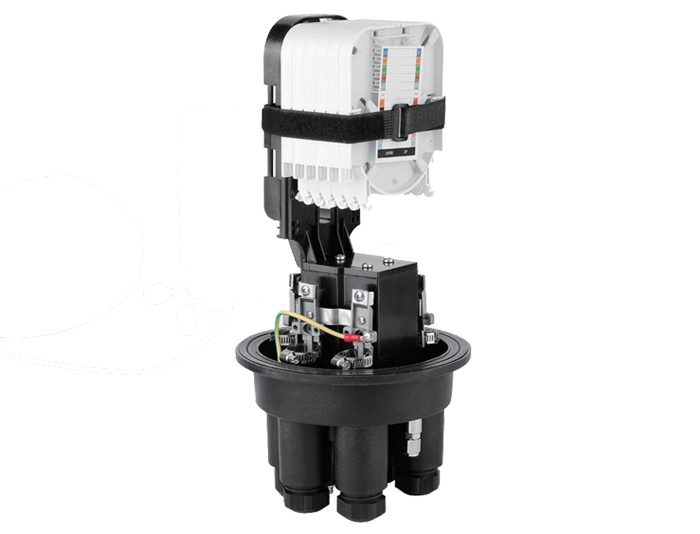

The closure is equipped with a built-in fiber management system which provides a separate area for storing, fiber optic cabling, protecting, and "expressing" buffer tubes, singles and ribbon fibers. The hinged splice trays include a modular splice holder design which allows them to accept single fusion, single mechanical, and various mass fusion splice (4-,6-,8- and 12- fiber ribbon) by simply replacing the splice holder.


An optional built-in air valve is designed to allow flash testing.



Feature:

Closure Material: Modified P.P

Closure Seal Material: Innovative latching / locking O-ring closure sealing system.

May be used for all fiber optic cable.

May be used for cut, uncut and taut sheath applications.

Sheath retention & central strength member fasten system included.

Built-in integral multipurpose fiber storage system.



Mechanical seal.

Hinged tray design, Splice trays can be easily increased and reduced according to capacity.

Modular splice holder design.

Installation and reentry with a minimum of tools.

Closure can be flash tested.

Protection class: IP68.

RoHS compliance.



Applications :

Aerial mounting, Wall Mounting, Pole Mounting, Buried, Under-ground, Vault, Handhole & Manhole.


Configuration

Standard Accessories:


ItemNameUsageQuantity
1FOSC CoverProtecting fiber cable splices in whole1 pc
2FOSC BaseFixing internal and external structure1 pc

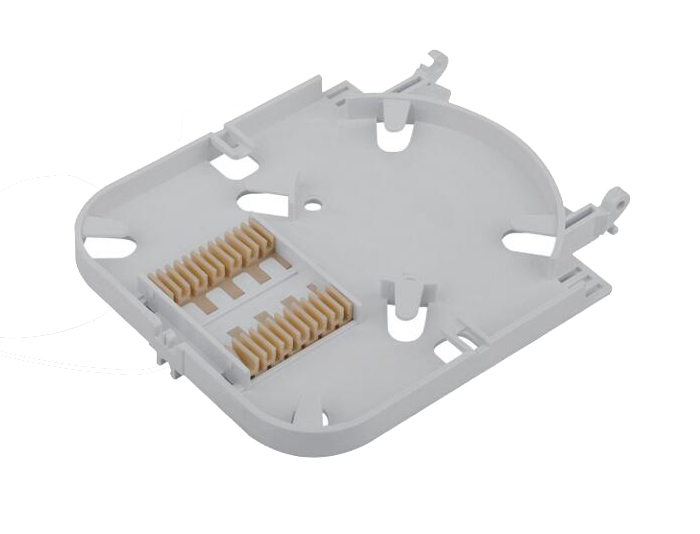

3Splice cassetteFixing heat shrink protective sleeve and holding fibersMax. 6 trays (Configuration as per capacity)
4Fiber Holding TrayHolding fibers with protective coatN/A
5Pressure Testing ValveAfter inject air, it is used for pressure testing and sealing testingConfiguration as per requirement.
6Earthing Deriving DeviceDeriving metallic parts of fiber cables in FOSC for earthing connectionConfiguration as per requirement.
7Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
8Nylon TieTo fix buffer tubes with fibers insideSame as capacity
9Grounding WireTo connect with grounding device1pc
10Abrasive ClothTo polish fiber optic cable1pc
11Labelling PaperTo label fibers1 pc
12Buffer TubeTo protect fibers and be fixed on splice trays1 pc
13Installation bolts and nutsTo fix splice cassette1 pc



Shipping Information:


SpecificationSizePcs/CartonWeight
Internal Carton Box390mmx Ø210mm1 pc6.8 KGS
Outside Carton Box6000mmx490mmx440mm6 pcs17.5 KGS


Configuration:


Model No.Splice TraySpliced fiber storage capacitySize(mm)L*W*HCable portsMax. diameter of cable(mm)
RGP-TSB-204B

 Tray 109D

Capacity : 12 splices

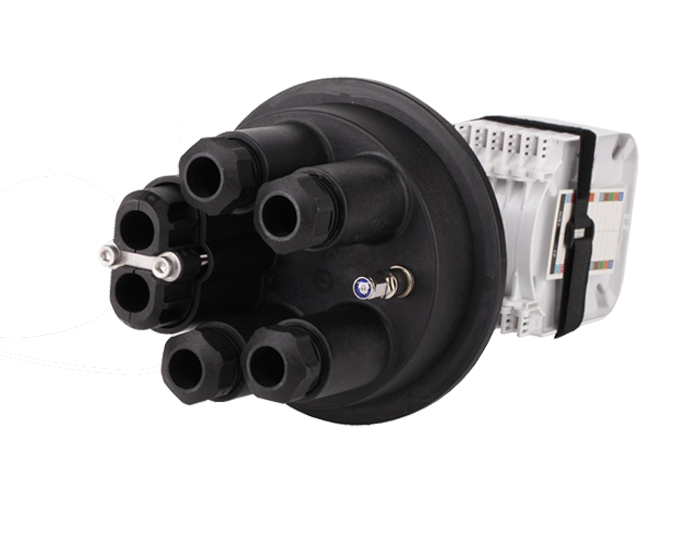

 72 Splices (6x12 Splices)  390mmx Ø210mm1 Oval Port + 4 Round Ports

 1xOval port for Looped cable, Ø 8-35mm

 4 x Round port , Ø 8-20mm
