96 Core Heat Shrinkable Dome Fiber Optic Closures TSB-203-S

Publisher: MJADOM

Author: Andy

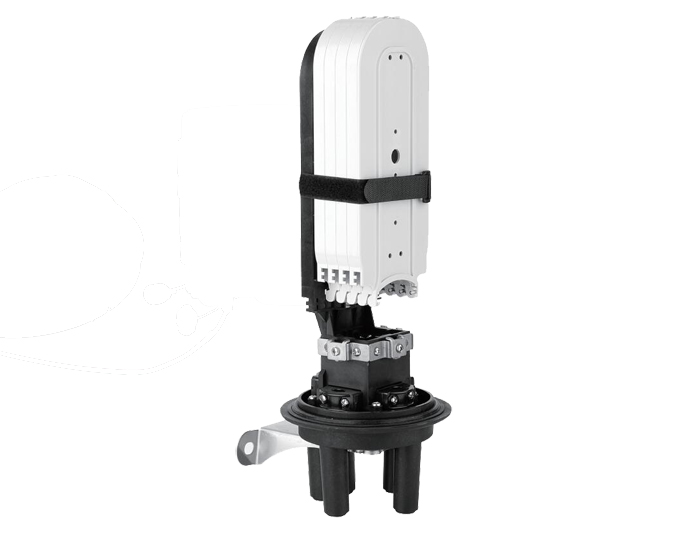

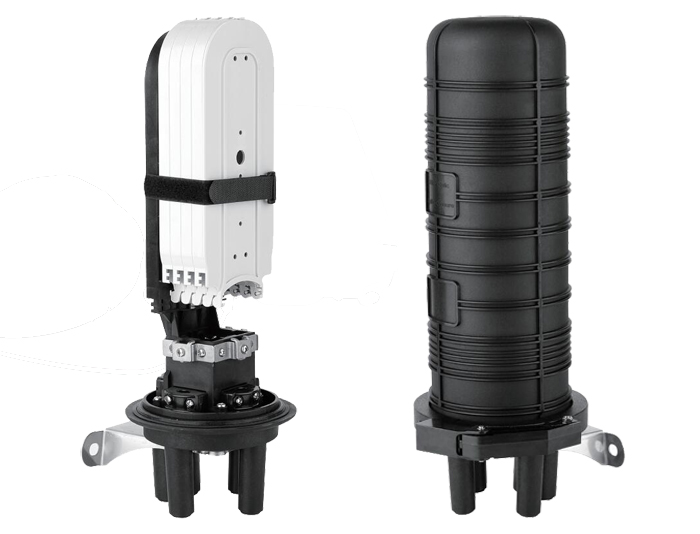

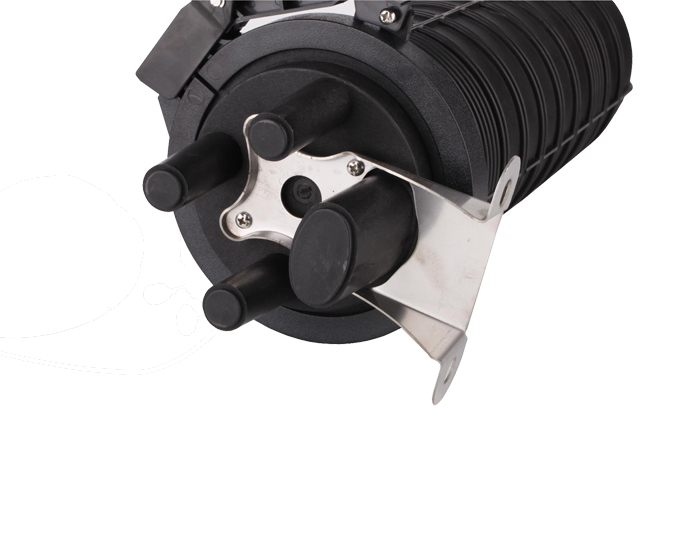

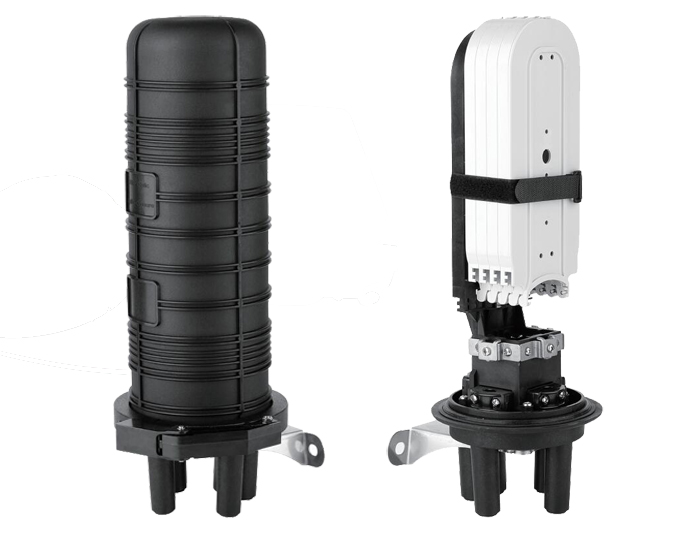

RGP-TSB-203-S 96 Core Heat Shrinkable Dome Fiber Splice Closures have one oval port for express cable applications and three round cable ports, the fiber splice closure features an O-ring sealing system along with an innovative latching/locking mechanism.



Description:


RGP-TSB-203-S 96 Core Heat Shrinkable Dome Fiber Splice Closures have one oval port for express cable applications and three round cable ports, the fiber splice closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable tubing technology for fiber optic cable sealing which helps provide a watertight seal.


The Fosc is equipped with a built-in fiber management system which provides a separate area for storing, routing, protecting, and "expressing" buffer tubes, singles and ribbon fibers.


An optional built-in air valve is designed to allow flash testing.



Feature:


Closure Material: Modified P.P.

Closure Seal Material: Innovative latching / locking O-ring closure sealing system.

May be used for all fiber optic cable.

May be used for cut, uncut and taut sheath applications.

Sheath retention & central strength member fasten system included.

Built-in integral multipurpose fiber storage system.



Heat shrinkable tubing seal.

Hinged tray design, Splice trays can be easily increased and reduced according to capacity.

Modular splice holder design.

Installation and reentry with a minimum of tools.

Closure can be flash tested.

Protection class: IP68.

RoHS compliance.



Applications :

Aerial mounting, Pole Mounting, Buried, Under-ground, Vault, Handhole & Manhole.


Configuration

Standard Accessories:


ItemNameUsageQuantity
1FOSC CoverProtecting fiber cable splices in whole1 pc
2FOSC BaseFixing internal and external structure1 pc
3Splice cassetteFixing heat shrink protective sleeve and holding fibersMax. 2 trays (Configuration as per capacity)
4Fiber Holding TrayHolding fibers with protective coatN/A
5Pressure Testing ValveAfter inject air, it is used for pressure testing and sealing testingConfiguration as per requirement.
6Earthing Deriving DeviceDeriving metallic parts of fiber cables in FOSC for earthing connectionConfiguration as per requirement.
7Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
8Nylon TieTo fix buffer tubes with fibers insideSame as capacity
9Grounding WireTo connect with grounding device1pc
10Abrasive ClothTo polish fiber optic cable1pc
11Labelling PaperTo label fibers1 pc
12Buffer TubeTo protect fibers and be fixed on splice trays1 pc
13Installation bolts and nutsTo fix splice cassette1 pc



 Shipping Infomation:


SpecificationSizePcs/CartonWeight
Internal Carton Box440mmx190mm1 pc2.90 KGS
Outside Carton Box540mmx430mmx470mm6 pcs18.0 KGS



Configuration :


Model No.Splice TraySpliced fiber storage capacitySize(mm)L*W*HCable portsMax. diameter of cable(mm)
 RGP-TSB-203-S

Tray 109

DCapacity : 24 splices

96 Fibers (4x24 Splices) 440mmxΦ190mm1 Oval Port + 3 Round Ports1 oval port for Looped cable, Φ8-25mm; 3 x round ports, Φ8-16mm.
