Fiber Optic Splice Closure TSB-103B

Publisher: MJADOM

Author: Andy

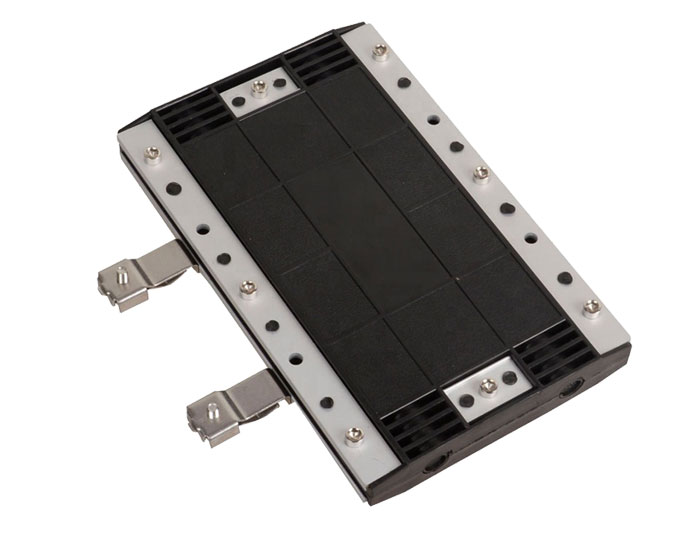

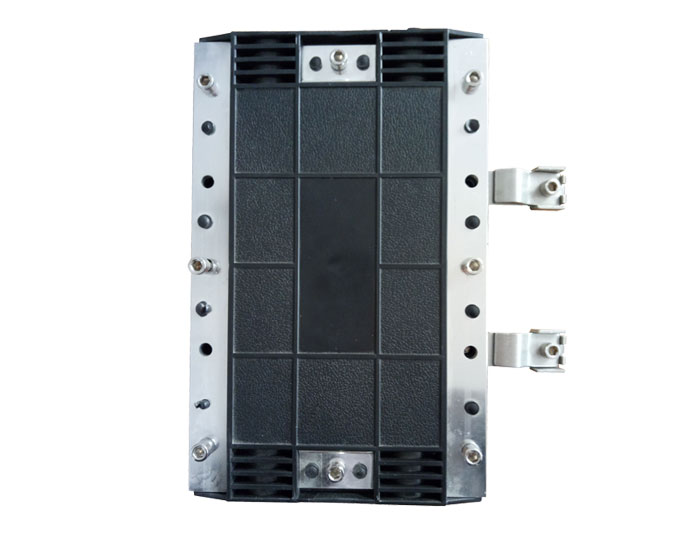

RGP-TSB-103B Fiber Optic Splice Closure are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure.


The body of the closure is made up of Modified P.P and the inner splice tray is 100% New ABS, It has a good high-pressure resistance and corrosion resistance.

RGP-TSB-103B Fiber Optic Splice Closure is used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as Aerial, man-hole of the pipeline, embedded situation, etc. Comparing with the terminal box, the closure requires a much stricter requirement of the seal.



The installation of closure is very easy and requires no special tools or complicated training procedures. Re-enterable to allow easy access to the enclosed splices.


Fiber Optic Splice Closure F2E-605A ▏FTTH Products Manufacturer.

Box Material: Modified P.P

Two halves (cover and base) structure.

Rotatable stack type fiber tray design.

Flexible configuration design inside closure.

No special tool needed, easy and low cost en-entry.

Removable cable port sealing tube design.

Inline and Butt configuration closure for single and ribbon fibers splice.



The protection grade reaches IP67.

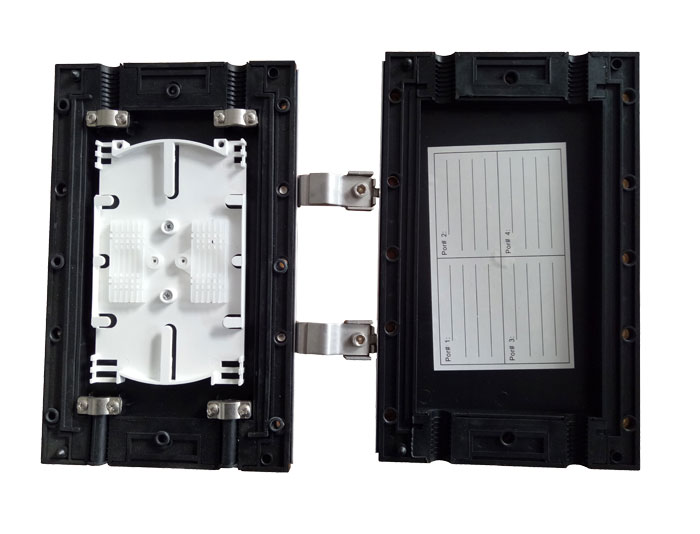

The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.

The closure is of small volume, big capacity and convenient maintenance.

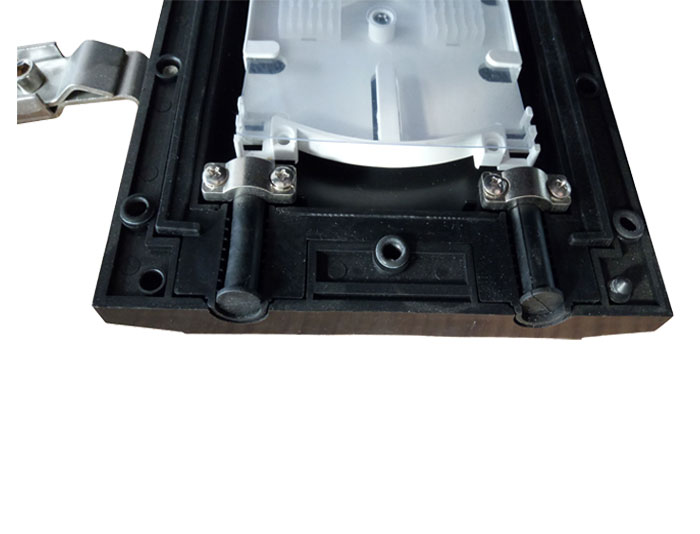

The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.

The casing can be opened repeatedly without air leakage.

No special tools are required.

The operation is easy and simple.



Wall mounting installation.

Pole mounting installation.


Configuration

Physical characteristics:

ModelRGP-TSB-103B
Dimension (L*W*H)248mmx156mmx33mm
Quantity of Splice Tray1 pc
TypeInline type
Minimal Fiber bending radius inside≥37.5mm
Maximum Capacity12-24 fibers
Sealing PerformanceIP67
Fire RetardantUL-94v0
Standard ComplianceITU-T L. 13 2003, YD/T 814.1-2004, Rohs 2002/95/EC and 2011/65/EU


Standard Accessories:

ItemNameUsageQuantity
1Splice cassetteTo splice the fiber opticSame as capacity
2Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
3Nylon TieTo fix buffer tubes with fibers insideSame as capacity
4Grounding WireTo connect with grounding device1pc
5Abrasive ClothTo polish fiber optic cable1pc
6Labelling PaperTo label fibers1 set
7Buffer TubeTo protect fibers and be fixed on splice trays1pc
8Installation bolts and nutsTo fix splice cassette1 set


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box250mmx158mmx35mm1 pc1.0 KGS
Outside Carton Box440mmx290mmx400mm20 pcs22.8 KGS
