Fiber Termination Enclosure TSB-102A

Publisher: MJADOM

Author: Andy

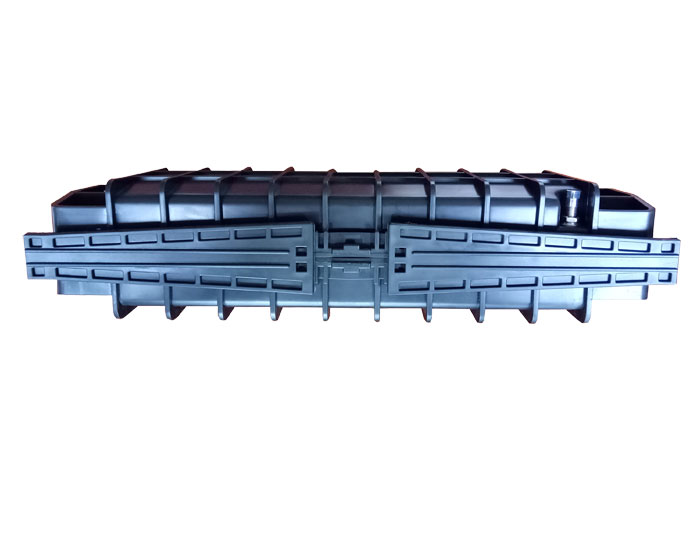

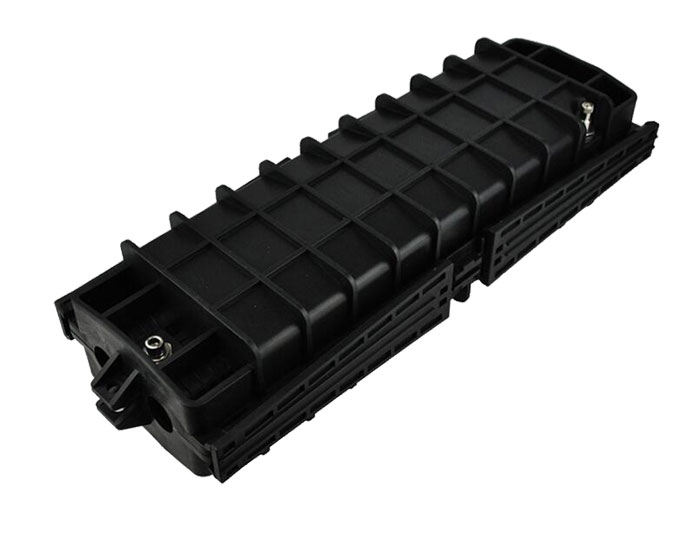

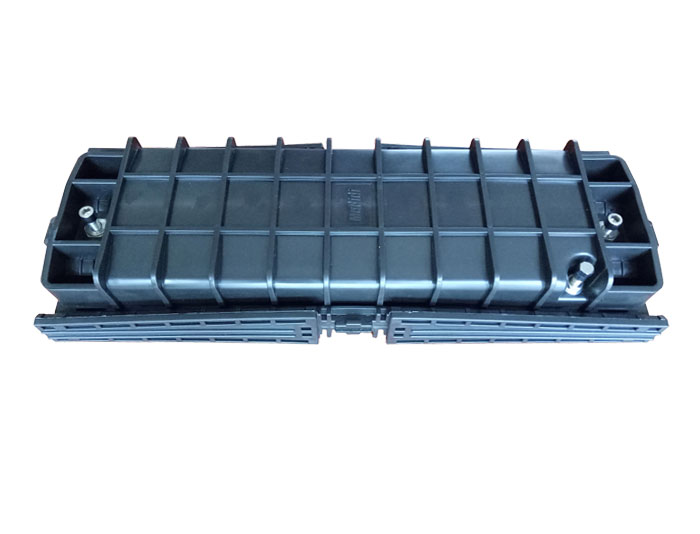

Inline Mechanical Gel Sealing Fiber Optic Splice Closure (RGP-TSB-102A), It is made of plastic molded parts and gasket sealing materials.


MJADOM offers Fiber Optic Splice Closure (Aerial / Pole Mount / Underground, Heat Shrink Sealing / Mechanical Sealing, 24-576 Fibers, LC/SC adapter, Protective Level IP68, 1x8/1x16 PLC Splitter).


The body of the closure is made up of Modified P.P and the inner splice tray is 100% New ABS, It has a good high-pressure resistance and corrosion resistance.

Inline Mechanical Gel Sealing Fiber Optic Splice Closure (RGP-TSB-102A), It is made of plastic molded parts and gasket sealing materials.

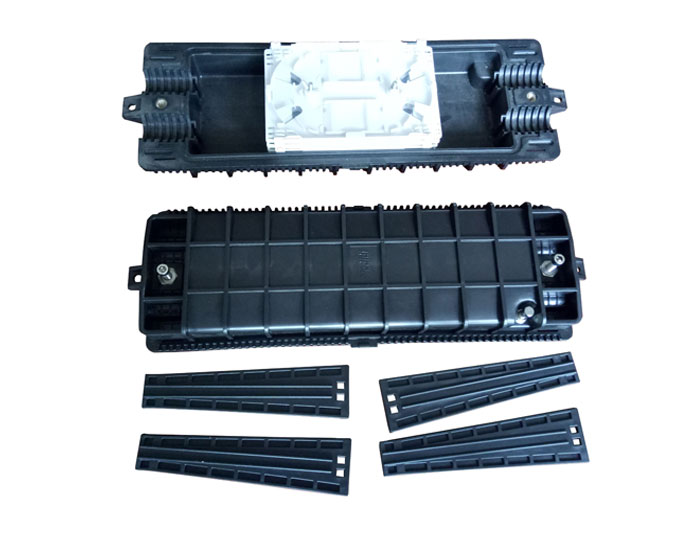

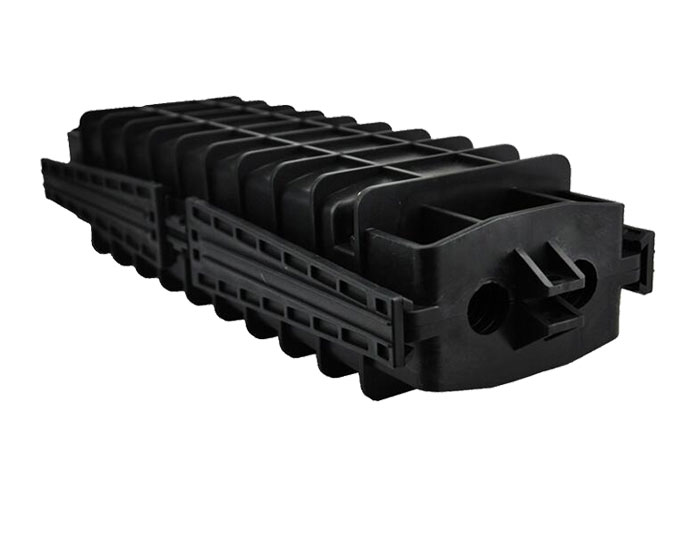

It's a Mechanical Gel Sealing type FOSC and adopts 4 Round Port design, 2 Inlet & 2 Outlet. Closing of the closure is simply done by the sliding latching mechanism.


The latching system provides short installation time and easy re-entry. There is no need for special tooling for closing and opening the closure.

Closure Material: MPP-Modified P.P.

Closure Seal Material: Vualcanized silicone rubber.

May be used for cut, uncut and taut sheath applications.

May be used for all fiber optic cable.

Sheath retention & central strength member fasten system included.

Ribbed closure construction and lightweight plastic provides strength and resistance to chemical and U.V attack.


Sliding latch mechanism.

Compatible with most common cable types: e.g. Loose tube, central core, slotted core, ribbon fiber.

It applies to multiple environments ( Underground, Aerial, Pole, Bracket, Pipe-lined, Manhole.).

Protection class: IP67.

RoHS compliance.

Reusable & Re-entry Test.

The Closure is suitable for applications up to 48 single fibers, which can cover most of the applications in the fiber distribution networks like Fiber To The Home / Fiber To The Curb (FTTH/FTTC) Under-ground, aerial, pedestal or direct buried applications are possible with the closure. TSB-102A closure has chemical and mechanical resistance for all the application areas in the fiber networks. Can be used in Butt or In-line configuration.


Aerial mounting & Under-ground, pedestal or direct buried applications.

Configuration

Standard Accessories:

ItemNameUsageQuantity
1Splice cassetteTo splice the fiber opticSame as capacity
2Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
3Nylon TieTo fix buffer tubes with fibers insideSame as capacity
4Grounding WireTo connect with grounding device1pc
5Abrasive ClothTo polish fiber optic cable1pc
6Labelling PaperTo label fibers1 set
7Buffer TubeTo protect fibers and be fixed on splice trays1pc
8Installation bolts and nutsTo fix splice cassette1 set


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box490mmx165mmx115mm1 pc2.3 KGS
Outside Carton Box530mmx365mmx370mm4 pcs16.5 KGS


Order Information:

Model No.Splice TraySpliced fiber storage capacitySize(mm)LxWxHCable portsMax. diameter of cable(mm)
RGP-TSB-102A

Tray 301K

Capacity: 24 splices

120 Splices

(5x24 Splices)

480mmx155mmx110mm4 round ports

4 port, each port for 1 cable

with max 22 mm.
