Description:

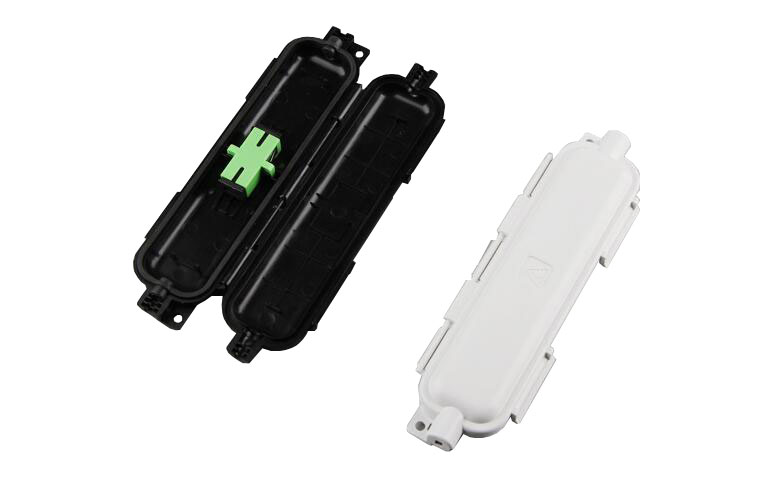

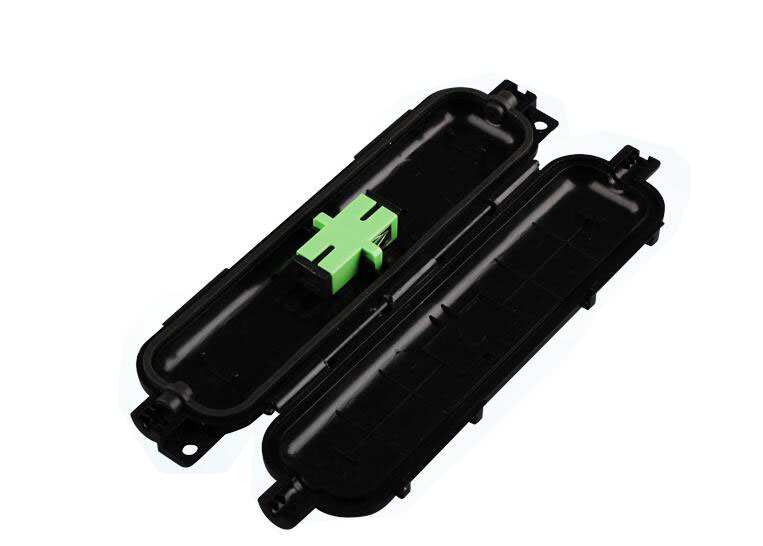

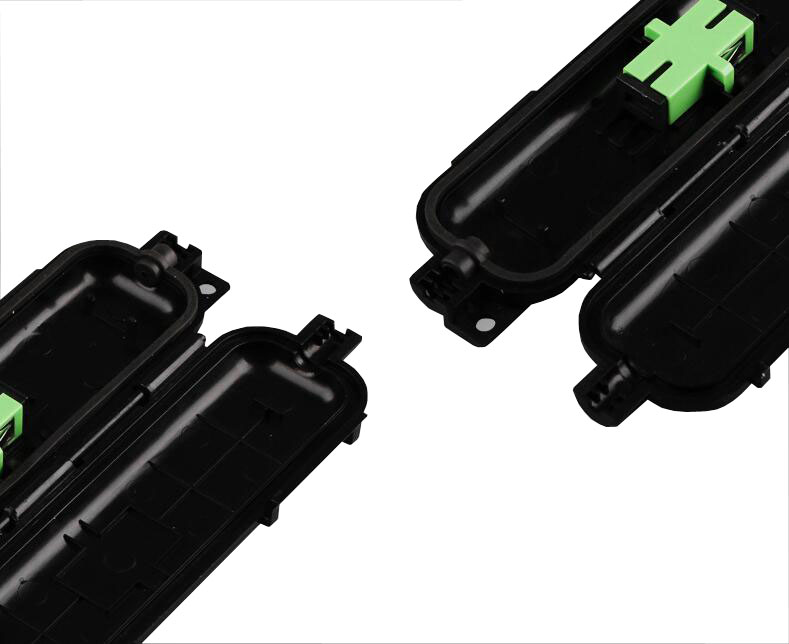

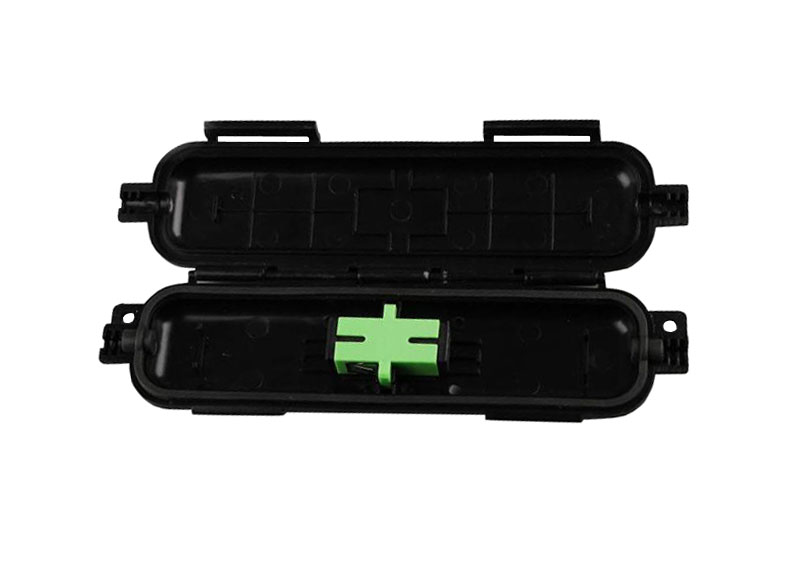

Drop cable splicing protecting box is applicable to the network access of bow-type drop cable and terminal end output. There is a fiber splicing protector to protect the splicing and connecting point of optical fibers. It can be used as both an Indoor and Outdoor Cable Protector.
This new type of butterfly fiber optic cable protective box is a case to put in a butterfly cable with a thermal protection tube after hot melting so that the splice spot can get better protection. Relative to cold welding, the hot one can improve the optical performance of connectors, make the effective connection rate increased to one hundred percent, prolong the service life of the product, and lower maintenance costs.
This Fiber Drop Repair Splice Closure is installed indoor or outdoor, it provides good connection and protection in FTTH Constructions.
Features:
Dimension: 0.64"x1.88"x6.29"
Used for: FTTH drop cable
"FTTH Drop Splice Closure", "FTTH Drop Cable Splicing Protecting Box", "FTTH Drop Repair Splice Closure", "FTTH Drop Repair joint kits".
Bow Type Drop Cable Protection Box is used for protecting of connection between access drop cable and drop cable or between access drop cable and fiber optic pigtail.
Small Size, Nice Appearance, Smooth Body, Convenient Installation.
Material: ABS, Flame Retardant V0.
The fixing port can fit both bow-type drop cables and common pigtails.
The reliable protection for splicing points avoids any breaking caused by external forces.
Operating Temperature: -25℃~+65℃.
Atmosphere Pressure: 70Kpa~106Kpa.
Product Specification:
| Material | 100% New ABS | Color | White |
| Capacity | 1 Inlet and 1 Outlet | Dimensions (HxWxD) | 0.64"x1.88"x6.29" |
| Life | 5000 times | Tensile Strength | >1000N |
| Connector Loss | ≤0.5dB | Back Wave Loss | UPC≥50dB, APC≥60dB |
| Working Environment | Suitable FTTH Drop Cable Ports (0.9mm, 2.0mm, 3.0mm) | Working Temperature | -40 to 55°C (-40 to 131°F) |
| Relative Humidity | ≤ 85% (30°) | Air Pressure | 70Kpa~106Kpa |
| Sealing Performance | Remain Unchanged for 72h on Pressure 70kpa | Application | FTTH Fiber Splice Enclosure, FTTH Fiber Termination Box. |
Application:
FTTH Drop Cable Connection.
Telecommunication Networks.
Data communications Networks.
Local Area Networks.
