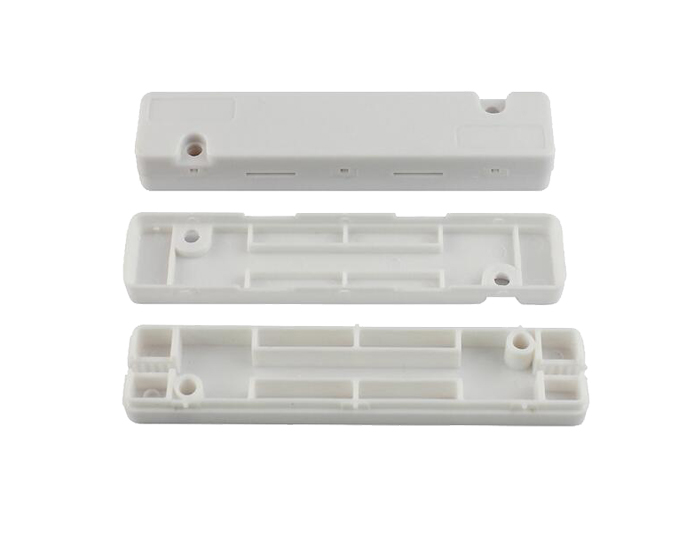

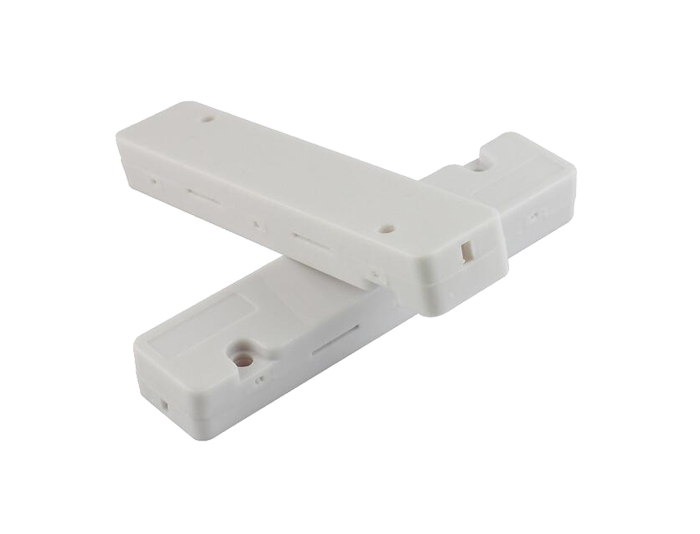

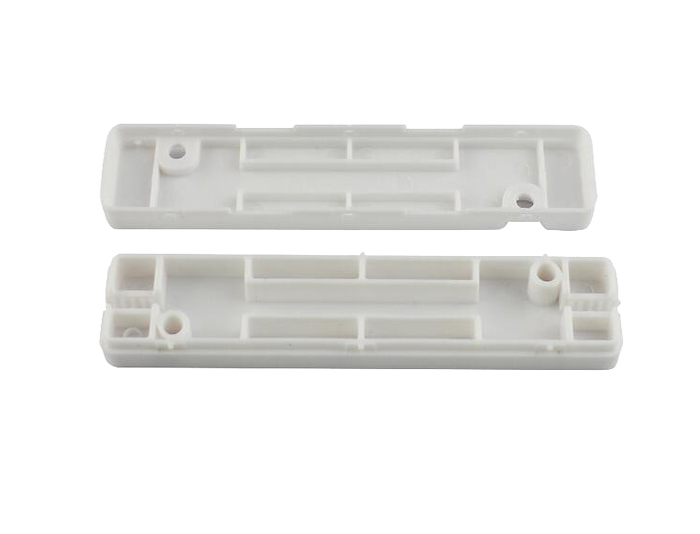

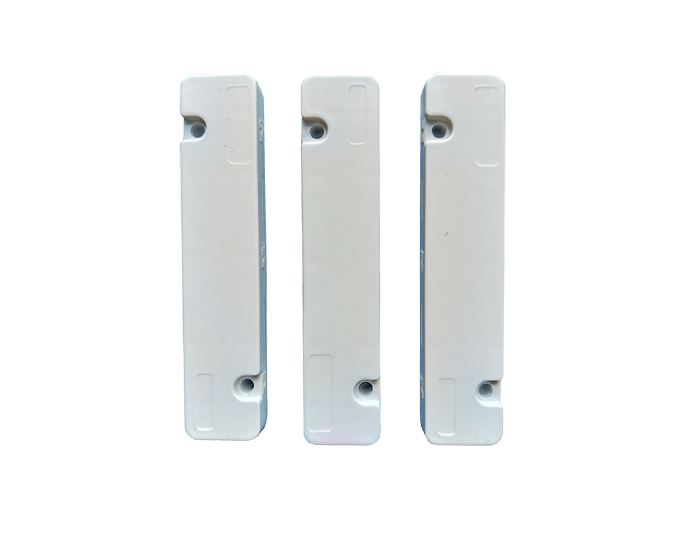

FTTH Terminal Box, FTTH Drop Cable Splice Protector, OST-501A3

Publisher: MJADOM

Author: Andy

Drop cable splicing protecting box also called FTTH Terminal Box is applicable to the network access of bow-type drop cable and terminal end output. There is a fiber splicing protector to protect the splicing and connecting point of optical fibers. It can be used as both an Indoor and Outdoor Cable Protector.

Description:

Drop cable splicing protecting box also called FTTH Terminal Box is applicable to the network access of bow-type drop cable and terminal end output. There is a fiber splicing protector to protect the splicing and connecting point of optical fibers. It can be used as both an Indoor and Outdoor Cable Protector.



This new type of butterfly fiber optic cable protective box is a case to put in a butterfly cable with a thermal protection tube after hot melting so that the splice spot can get better protection. Relative to cold welding, the hot one can improve the optical performance of the connector, make the effective connection rate increased to one hundred percent, prolong the service life of the product, and lower maintenance costs.

This Fiber Drop Repair Splice Closure is installed indoor or outdoor, it provides good connection and protection in FTTH Constructions.



Features:

Dimension: 0.47"x0.47"x4.05"

Used for: FTTH drop cable.

"FTTH Drop Cable Splice Closure", "FTTH Drop Cable Splicing Protecting Box", "FTTH Drop Repair Splice Closure", "FTTH Drop Repair joint kits".

Bow Type Drop Cable Protection Box is used for protecting of connection between access drop cable and drop cable or between access drop cable and fiber optic pigtail.

Small Size, Nice Appearance, Smooth Body, Convenient Installation.

Material: ABS, Flame Retardant V0.

The fixing port can fit both bow-type drop cables and common pigtails.

The reliable protection for splicing points avoids any breaking caused by external forces.

Operating Temperature: -25℃~+65℃.

Atmosphere Pressure: 70Kpa~106Kpa.


Product Specification:

Material100% New ABSColorWhite
Capacity1 Inlet and 1 OutletDimensions (HxWxD) 0.43"x0.67"x3.34"
Life5000 timesTensile Strength>1000N
Connector Loss≤0.5dBBack Wave LossUPC≥50dB, APC≥60dB
Working EnvironmentSuitable FTTH Drop Cable Ports (0.9mm, 2.0mm, 3.0mm)Working Temperature-40 to 55°C (-40 to 131°F)
Relative Humidity≤ 85% (30°)Air Pressure70Kpa~106Kpa
Sealing PerformanceRemain Unchanged for 72h on Pressure 70kpaApplicationFTTH Fiber Splice Enclosure, FTTH Fiber Termination Box.


Application:

FTTH Drop Cable Connection.

Telecommunication Networks.

Data communications Networks.

Local Area Networks.

Configuration

Order Information:

Model No.Product Description

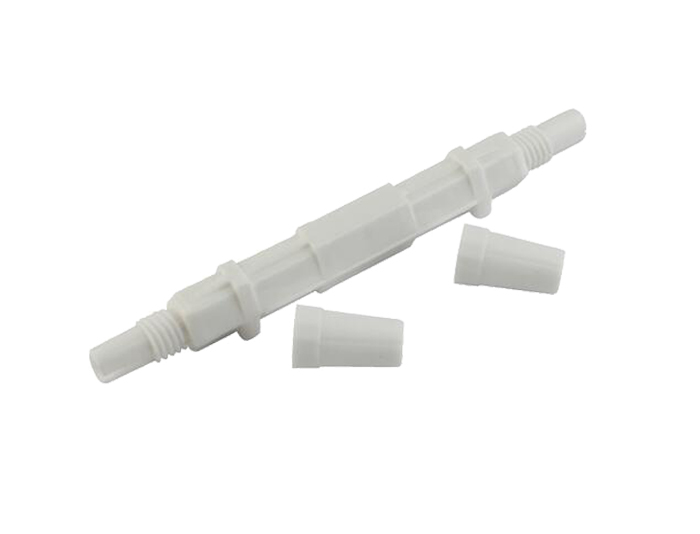

RGP-GZF-A09FTTH Drop Cable Splice Box, 1 Inlet and 1 Outlet, Black, 0.64"x1.88"x6.29"
RGP-OST-501A1FTTH Drop Cable Splice Box, 1 Inlet and 1 Outlet, Black, 0.47"x0.47"x4.05"
RGP-OST-501A2FTTH Drop Cable Splice Box, 1 Inlet and 2 Outlet, Black, 0.47"x0.47"x4.05"
RGP-OST-501A3FTTH Drop Cable Splice Box, 1 Inlet and 1 Outlet, Black, 0.43"x0.67"x3.34"
RGP-OST-501A4FTTH Drop Cable Splice Box, 2 Inlet and 2 Outlet, Black, 0.47"x1.89"x3.78"


Related Products

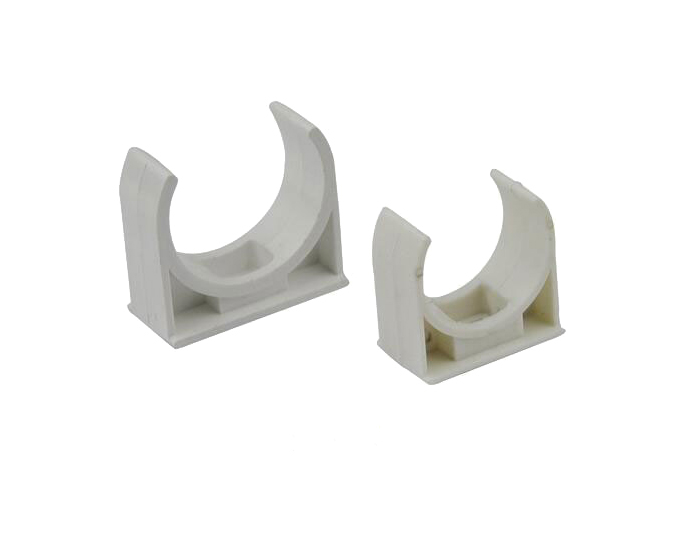

FTTH Accessories For Installing Indoor Drop Cable, OSA-505A
FTTH Accessories For Installing Indoor Drop Cable, OSA-505A

MJADOM provides FTTH Drop Cable Accessories for Cable Duct, Cable Management, Retractor, Fastener, Kook, Screw Kit, Fixing Accessories.

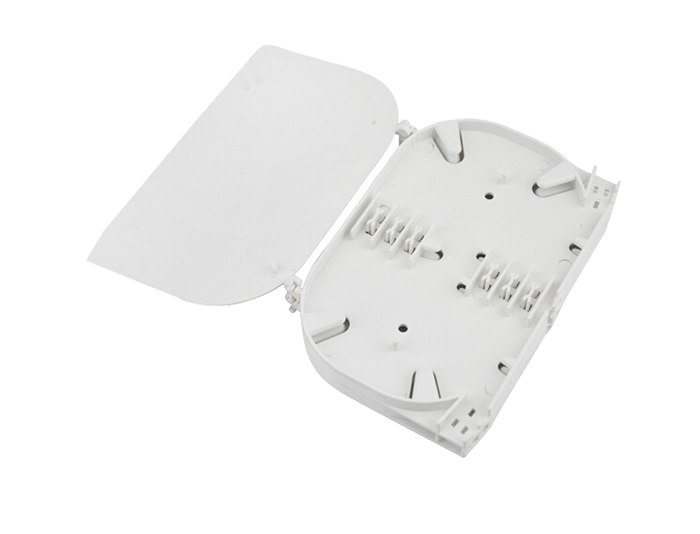

12 Fibers Fiber Cable Tray, Plastic, for Fiber Optic Closure OST-305A
