Description:

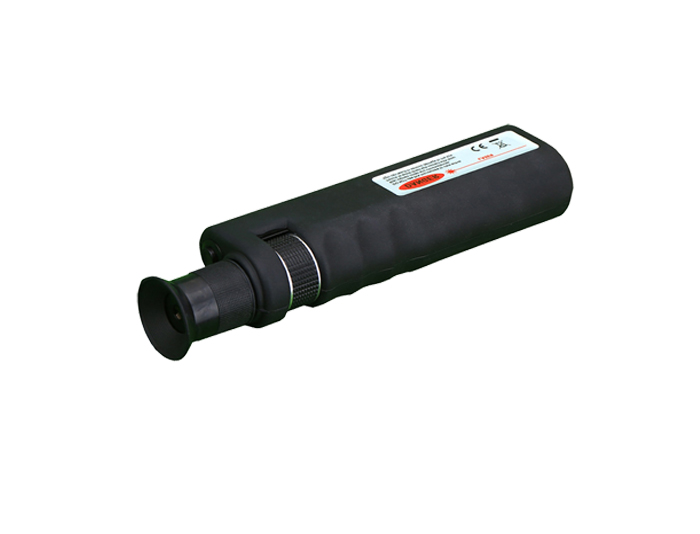

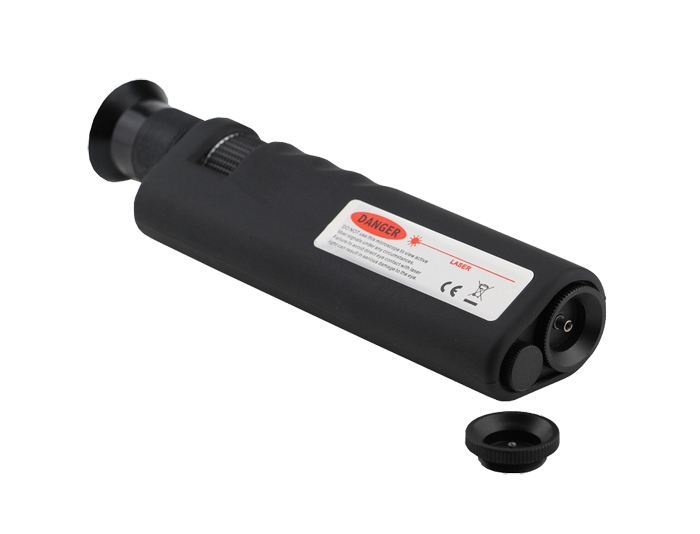

Fiber Optic Inspection Microscope uses a white LED for inspecting fiber terminations, It provides the most critical view of fiber and faces. This 400X handheld microscope produces excellent detail of scratches and contamination with its good optical performance and integrated laser safety filters. It has good optical performance and integrated laser safety filters and produces excellent detail of scratches and contamination. Light is introduced into the optical path (axis) so that it comes out the tip of the objective and strikes the sample perpendicular to the fiber end-face.
The Fiber Optic Inspection Microscope can detect both the PC end face and the APC end face, and with low pricing and solid quality. If need the critical examination of polish quality, we strongly recommend you to use this fiber microscope.
Features:
Suitable for detection of SC/FC/LC/ST connectors.
Equipped with LED illumination and a Laser filter installed for eye protection.
Comes with a versatile adapter interface.

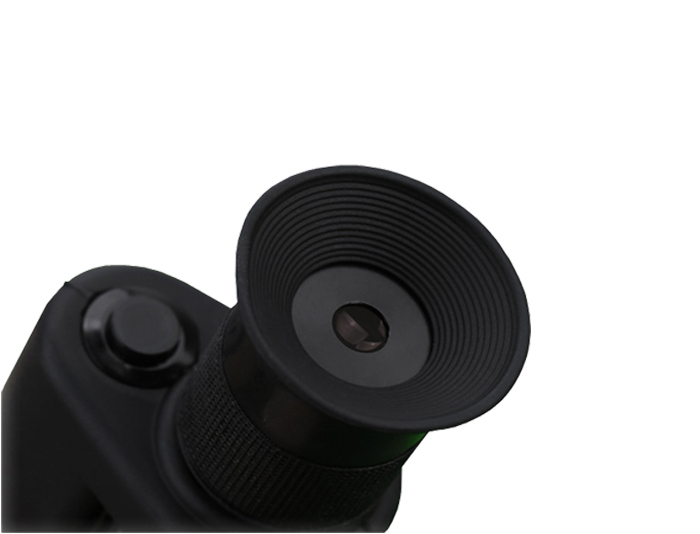

Provides clear bright images and smooth focus control.
Momentary push button on/off switch.
Universal 2.5mm and 1.25mm adaptors are included in the set.
Approved by strict quality and safety standards ensures long and trouble-free life.
Approved with CE and Passes the European Standards which ensures International standard Quality.

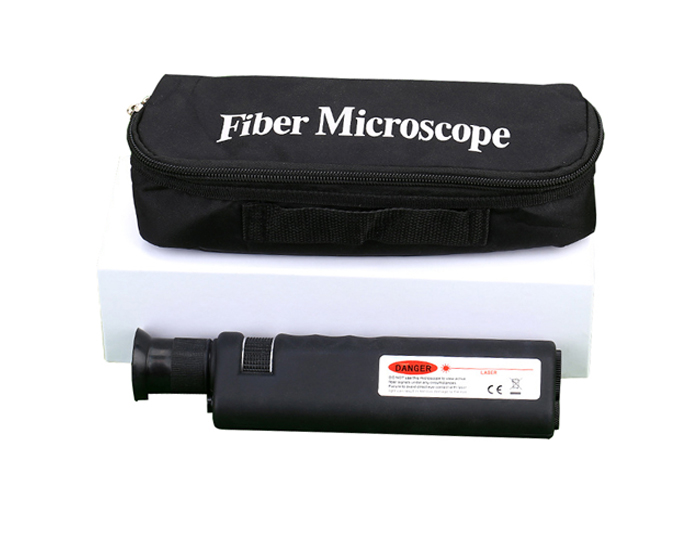

Set includes:
1 x 400x CL series Fiber Scope.
1 x 1.25mm Adaptor (EXTRA) (inside the small pocket of the bag).
1 x 2.5mm Adaptor (Installed).
1 x Soft Carrying Case.
1 x English Operation Manual.
Product Specification:
| Model Number | Fiber Inspection Microscope | Color | Black |
| Light Source | White LED | Dimensions (HxWxD) | 32mm x32mm x225mm |
| Optical Magnification | 400 times | Weight | 0.3 kg |
| Detection Range | LC/SC/ST/FC Connector | Polish type | PC/UPC/APC |
| Power Source | 3 x AAA batteries (not included) | Life of Lamp | 100,000 hours life |
| light source Controls | Momentary on/off switch | Wheel Control | Fine Focus control wheel |
| Housing Material | Aluminum with painting | Safety Filter | Built-in IR filter |
| Relative Humidity | ≤ 85% (30°) | Air Pressure | 70Kpa~106Kpa |
| Fiber Type | SMF/MMF fiber with 2.5mm/1.25mm ferrule | ||
| Working Environment | 0℃~+70℃ | ||
Applications:
1.Fiber network panels and assemblies.
2.Outdoor FTTX applications.
3.Cable assembly production facility.
4.Testing laboratories.
