Description:

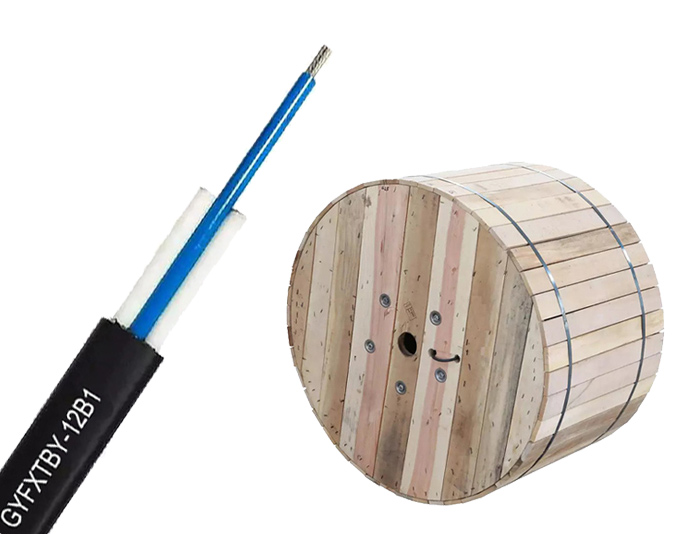

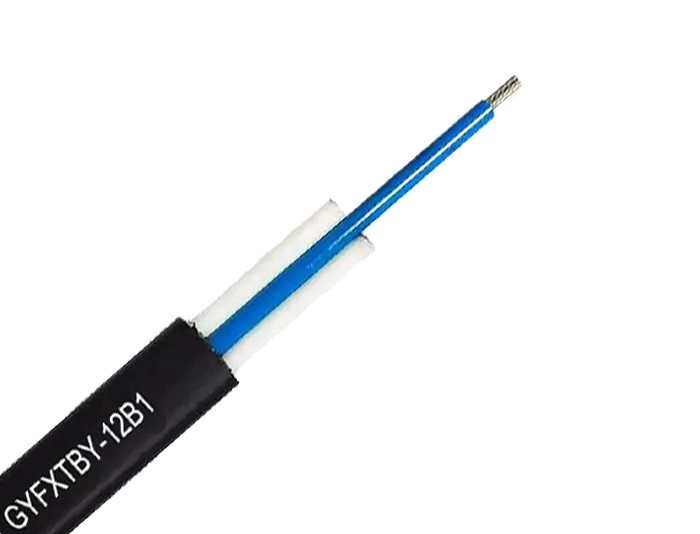

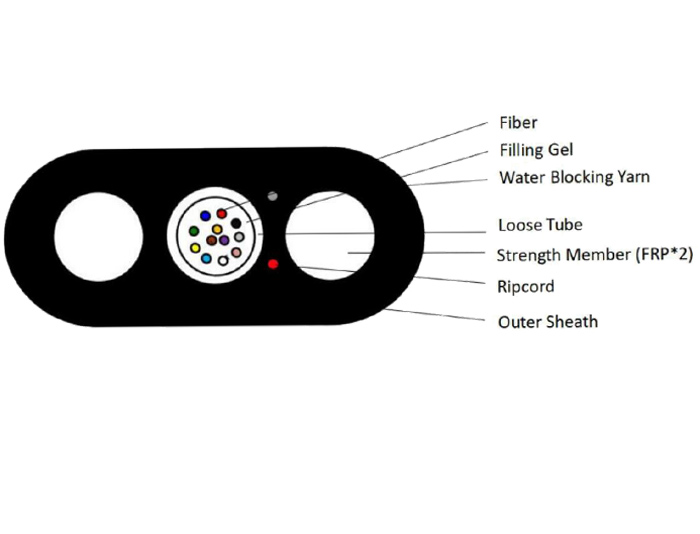

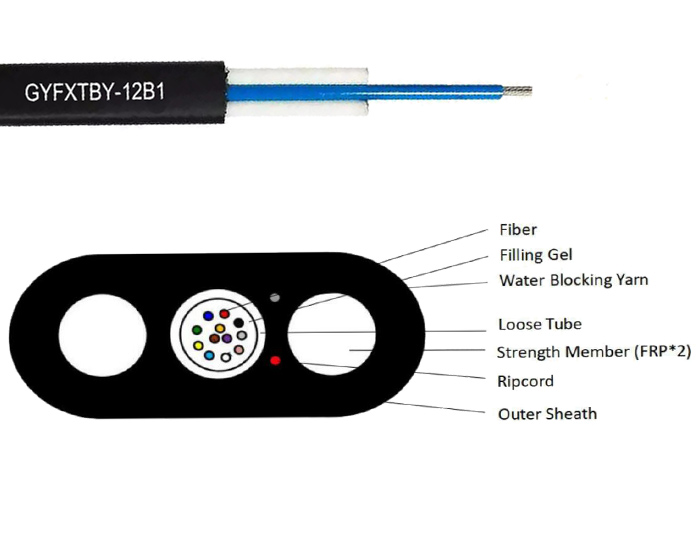

GYFXTBY, Non-Metallic Aerial Flat Drop Cable. which is designed with a central loose tube and made of multiple (1-12 cores) 250um colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element (FRP) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, Central Loose Tube all Dielectric Aerial Drop Cable is especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installation as as conduit builds. Finally, the aerial drop cable is completed with PE outer sheath.
Features:
Central Loose tube, Gel-filled.
Fiber Cable 4 Core, Fiber Cable 6 Core, Fiber Cable 8 Core, Fiber Cable 12 Core are Okay.
G652D, Low loss, low dispersion.
Good mechanical and temperature performance.
High-strength loose tube that is hydrolysis resistant.
Special tube filling compound ensures a critical protection for the fiber.
Two FRP as strength member to provide good tensile performance.
Good water penetration, mechanical and environmental performance.
Reinforced aramid yarn, Flat FRP or Round FRP armor providing good anti-rodent performance.
Crush resistance and flexibility.
Loose tube filling compound.
Reasonable design, precise residual length control and cabling process make the cable have excellent mechanical and environmental performance.
In accordance with IEC, ITU and EIA fiber cable standards.
Application:
All dielectric self-supporting aerial.
