Description:

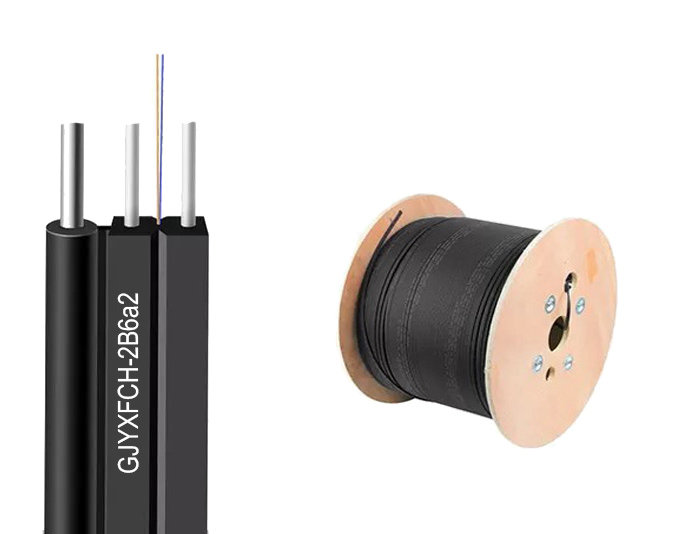

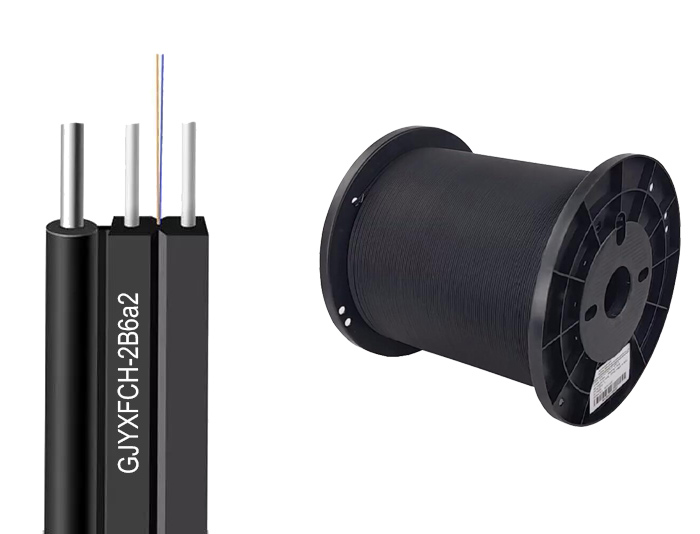

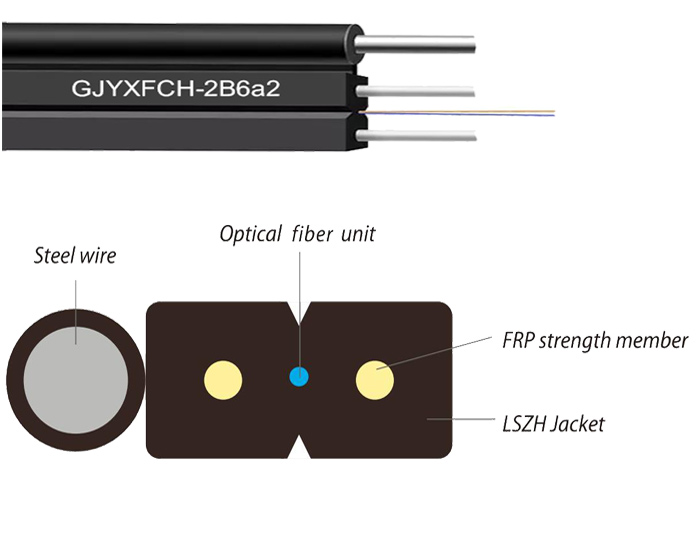

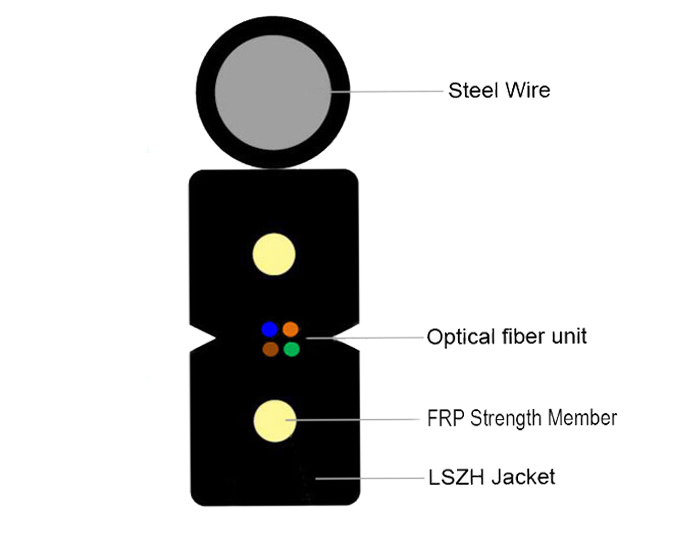

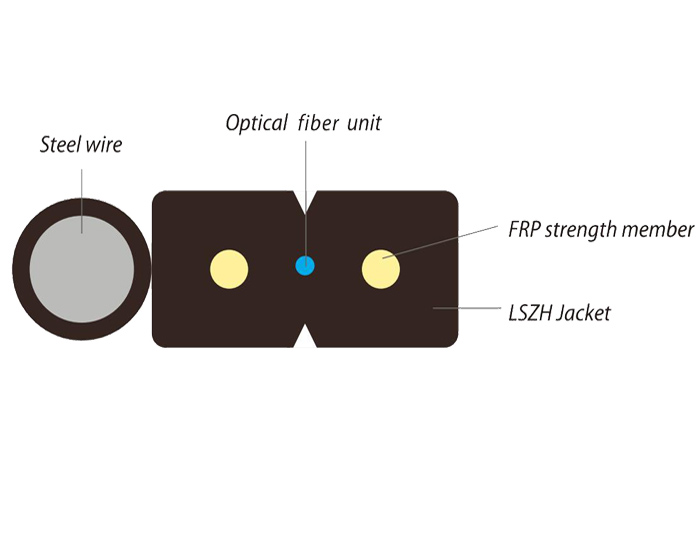

GJYXFCH FTTH 2 Core Fiber Drop Cable, which is the self-supporting bow-type FTTH drop cable. Fibers, φ250μm colored coating optical fibers are positioned in the center. With 2 parallel FRP/KFRP as the strength members placed on both sides, A galvanized steel wire as the additional strength member is applied. Then, the 6 core fiber cable is completed with a black or color LSZH sheath.
Features:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
G657A2 fiber put in the cable, ensure the very good micro-bending resistant performance.
Two parallel FRP/KFRP strength members ensure good performance of crush resistance to protect the fiber.
Self-supporting steel wire strength components withstand most parts of tension.
Simple structure, light weight and high practicability.
Novel flute design, easily strip and splice, simplified the installation and maintenance.
Low smoke, zero halogen, and flame retardant sheath.
Application:
Used in indoor/outdoor cabling.
Used as drop cable.
Access network, fiber to the home, connects the communication line from the LAN to the user.
End users use directly cabling.
