Description:

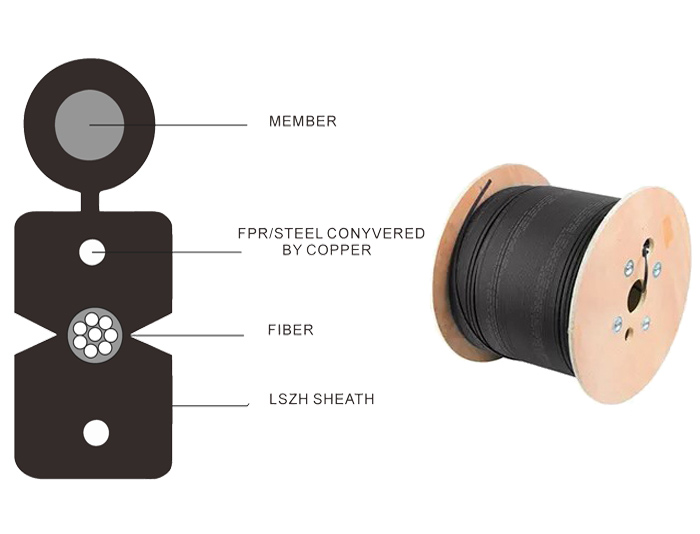

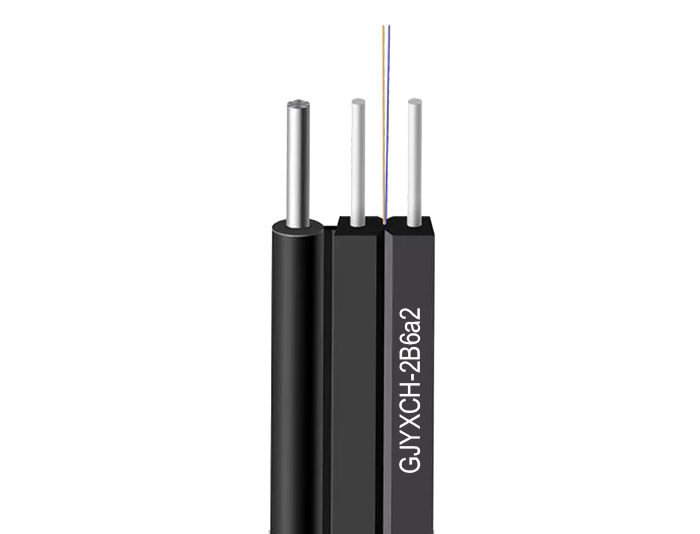

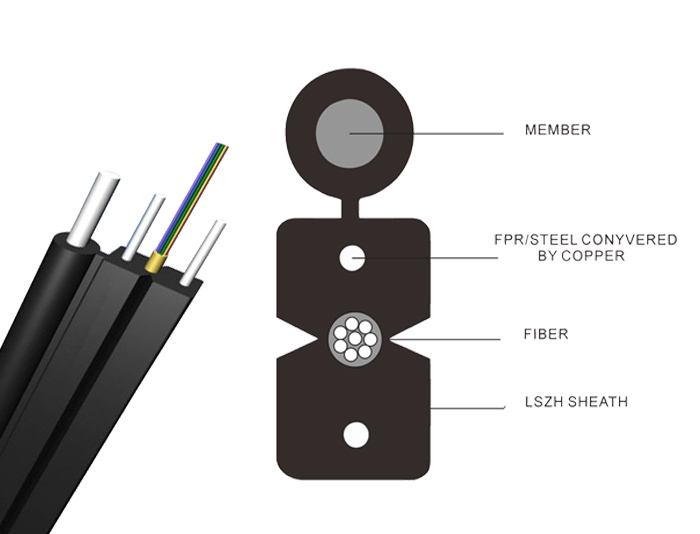

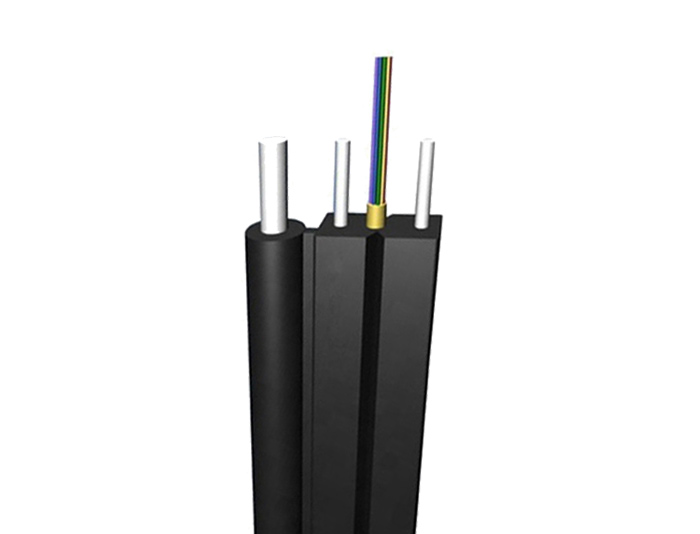

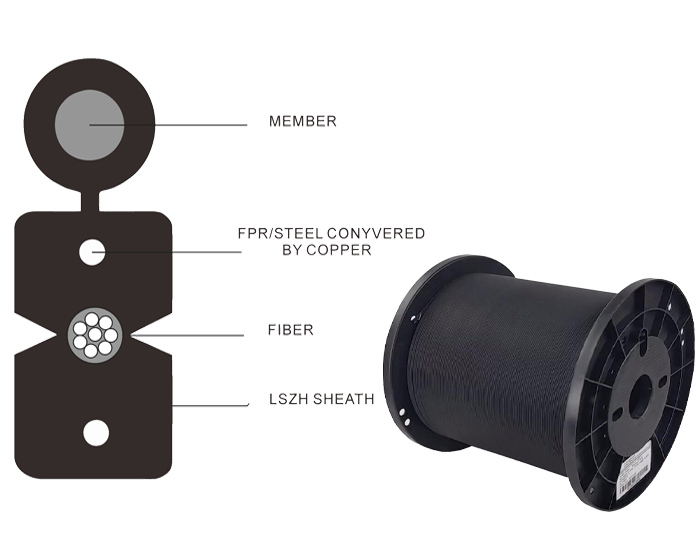

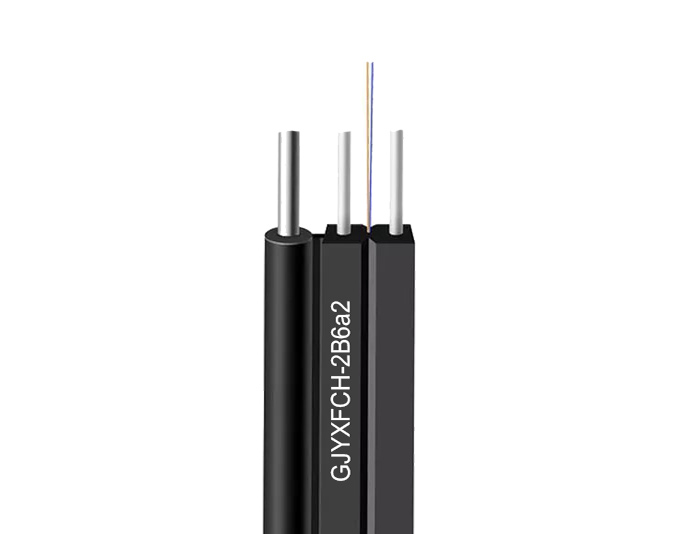

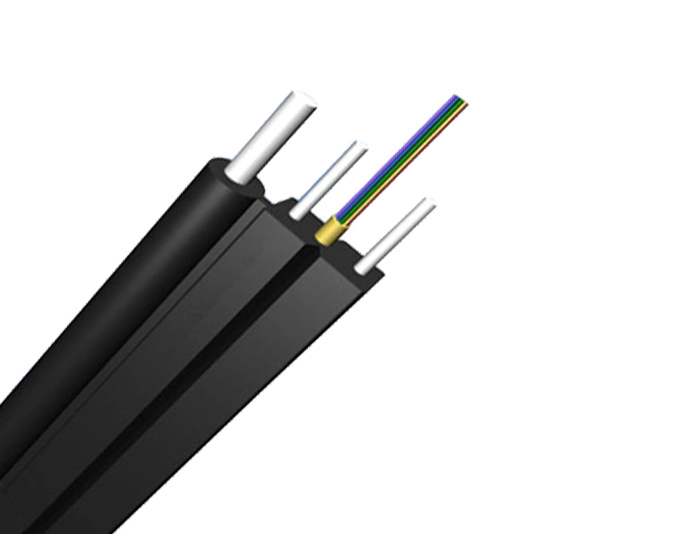

GJYXSCH-8B6a2 8 Core FTTH Fiber Drop Cable, which is the self-supporting bow-type FTTH drop cable. FTTH Fiber Cable, φ250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound. With 2 parallel galvanized steel wire as the strength members placed on both sides, A galvanized steel wire as the additional strength member is applied. Then, the 8 core fiber optic cable is completed with a black or color LSZH sheath.
Features:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
G657A2 fiber put in the cable, ensure the very good micro-bending resistant performance.
Two parallel galvanized steel wire strength members ensure good performance of crush resistance to protect the fiber.
Self-supporting steel wire strength components withstand most parts of tension.
6 Core Fiber Cable, 8 Core Fiber Cable, Fiber Cable 12 Core Drop Cable are Okay.
Simple structure, light weight and high practicability.
Novel flute design, easily strip and splice, simplified the installation and maintenance.
Low smoke, zero halogen, and flame retardant sheath.
Application:
Used in indoor/outdoor cabling.
Used as drop cable.
Access network, fiber to the home, connects the communication line from the LAN to the user.
End users use directly cabling.
