Description:

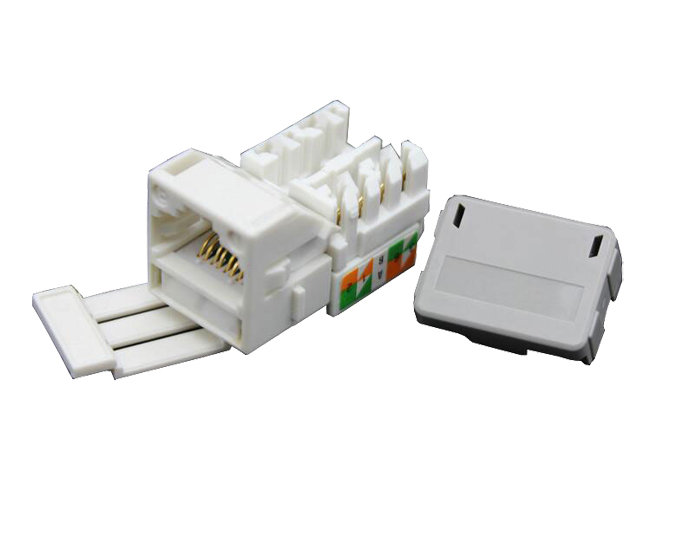

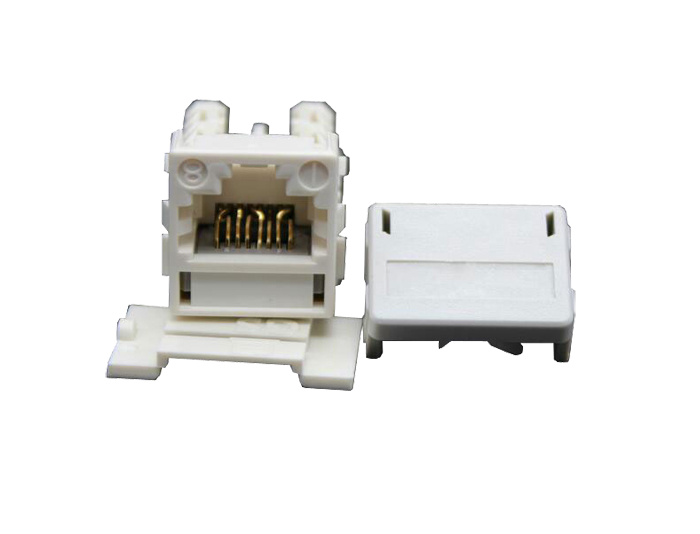

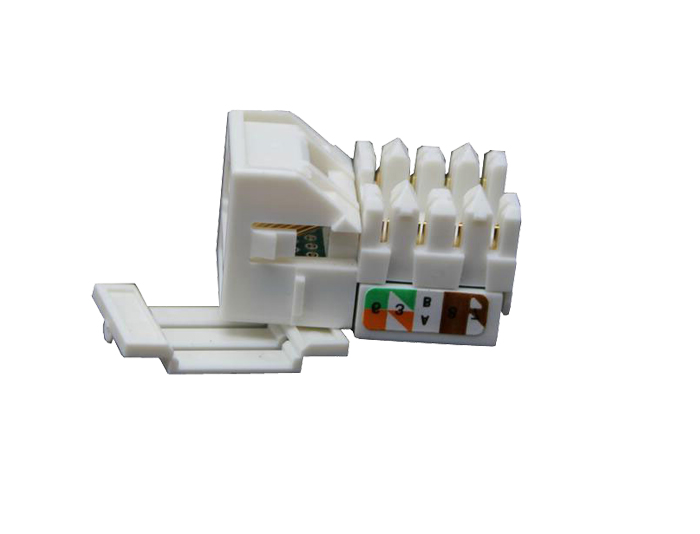

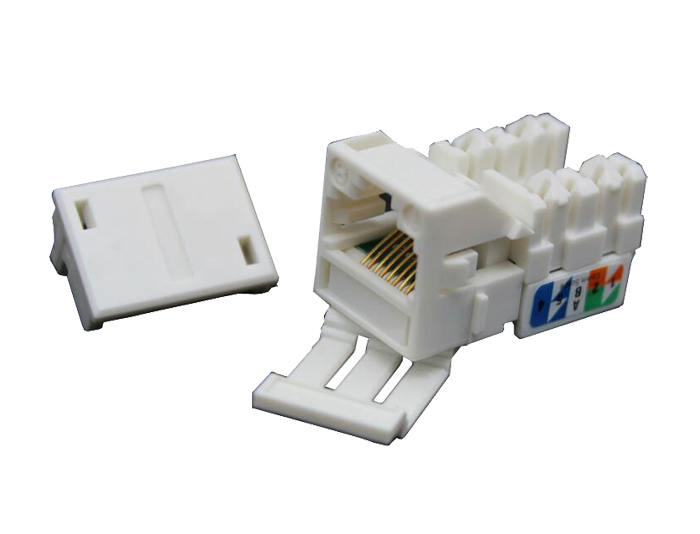

The RJ-45 Category5E CAT5E Keystone Jack (8P8C) is a punch-down UTP connector that complies with TIA/EIA-568-C.2 standard. The back of the module is an IDC termination interface offering two wiring schemes: T568A & T568B. The RJ45 Keystone Jack is compatible with 22 or 24 AWG solid cable into Patch Panels, Faceplates, and Surface Mount Boxes or any other keystone products.
The Keystone Jack RJ45 easy to snap-in retaining clip ensures a secure connection. The 110-type terminations are color-coded with both T568A and T568B wiring schemes. Dual IDC modules accommodate both 110 and Krone impact tools and include dust caps that assist with cable strain relief. It is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. Constructed of high-impact, fire-retardant plastic with gold-plated contacts, these keystone jacks meet or exceed Category 5e performance in compliance with the ANSI/TIA/EIA 568-C.2 standard.
Features:
CAT5E Keystone Jacks provide excellent performance for data networks.
Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
Exceeds Category 5e industry performance requirements.
Color-coded termination for T568A and T568B wiring schemes.
Ideal for a 22-24AWG solid wire.
Clear protective wire cap allowing security during wire management.
Universal IDC Module (Krone or 110) termination interface
Available in six colors to facilitate network management.
Compatible with Keywerks Patch Panels, Faceplates & Surface Mount or any other keystone products
Gold-plated contacts and easy snap-in retaining clip ensure a secure and corrosion free connection
Keystone Jack Cat5e for use with Category 5e patch cords.
Impact-resistant plastic
Exceeds ANSI/TIA-568-C requirements for permanent performances
UL 1863 compliant.
Technical Details:
| Electrical Details: | |||
| Current Rating | 1.5Amps | Insulation Resistance | 500 Megaohm |
| DC Resistance | 0.1ohm MAX | Voltage | 150 VAC MAX |
| Insertion Life | 1500 mating cycles | Plug Retention Force | 89N |
| IDC Accept | 22-24 AMG Solid Wire | Wire Scheme | T568A / T568B |
| Material | |||
| Spring | Phosphor Bronze with gold-painted (6U"~50U") over nickel-painted | IDC Contact | Phosphor Bronze with Tin-painted |
| Plastic | Polycarbonate PC | ||
| Environmental Conditions: | |||
| Storage Temperature | -60℃ ~+80℃ | Operational Temperature | -10℃ ~+60℃ |
| Relative Humidity | Maximum Noncondensing 93%. | ||
Application:
Compatible with keystone jack patch panels.
Compatible with keystone jack wall plates.
Compatible with keystone jack surface mount boxes.
Telecommunication or Equipment Room Inter-connect or cross-connect termination.
