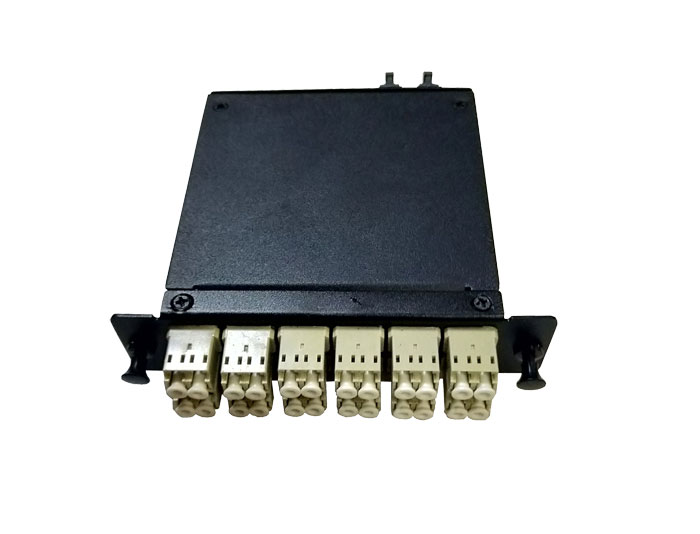

RGP-TSB-307TL MTP/MPO Pre-terminated Plug-N-Play Fiber Cassettes Module also called MPO Cassettes or MPO to LC Cassettes provide a high-density connection from LC or SC fiber ports to MTP/MPO backbone trunks. These MTP/MPO fiber cassettes are ideal for accompanying High-Density and MPO fiber distribution patch panel enclosures. Featured options include 12 fiber ports or 24 fiber ports in single-mode or multimode selections per MPO/MTP connection.

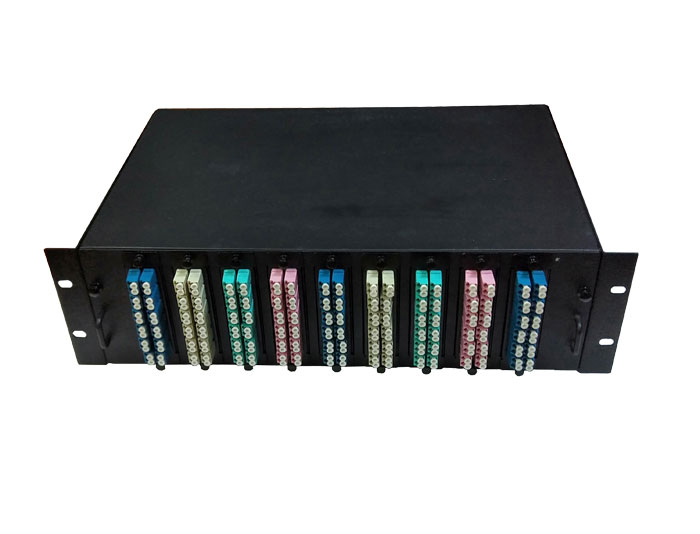

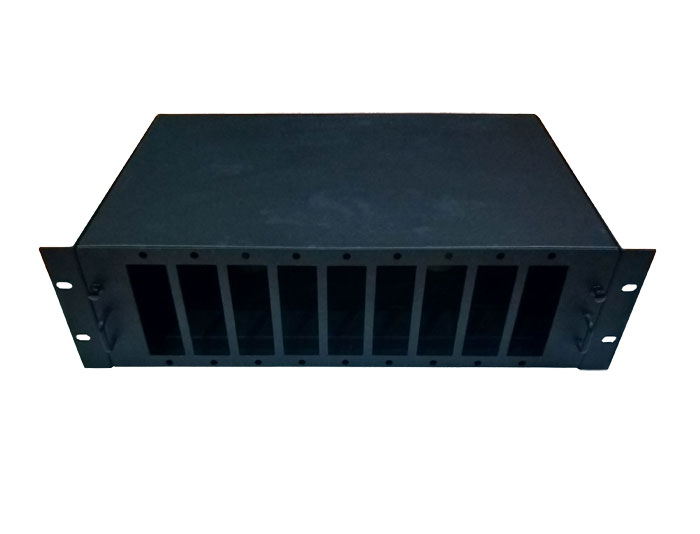

High-Density Distribution Frame is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers, and enterprise applications, 1U up to 96 LC fibers.
Buy High-Performance MPO-MPO Patch Cord, MPO-LC Breakout/Fanout Cable, MPO Fiber Optic Cassettes and MPO Patch Panel From reliable fiber optic supplier-MJADOM.COM. It's the ideal product for connecting multi-fiber MPO trunk cables and splitting.
Features:
The Panel and Modules are made of cold-rolled steel sheets.

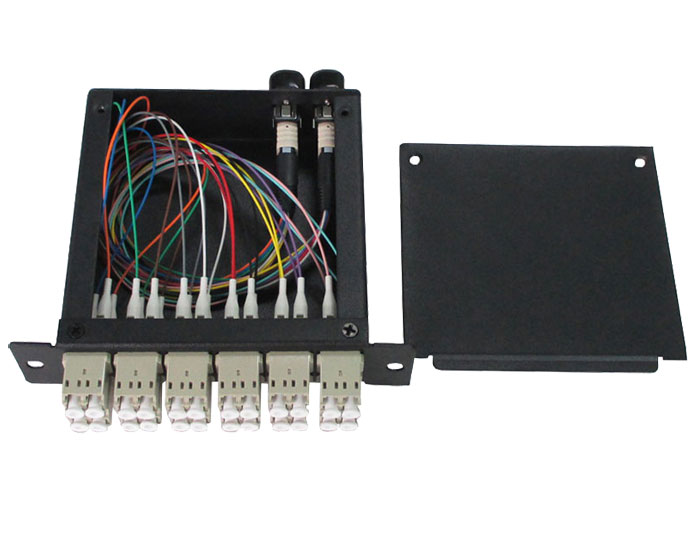

Plug-N-Play Fiber Cassette, Factory pre-terminated module, no need fiber splicing and cable wiring which saves labor cost.
Compatible with High-Density Rack-Mount TSB-307TG/TJ Series Fiber Patch Panels.
Up to 4 Fiber Cassettes per 1U Fiber Patch Panel.
Flexibility to Mix Adapter Plates with Cassettes in Patch Panel.
Available with LC, SC, and MTP/MPO Adapters.
Easily Accessible MTP/MPO Ports for Connection to Trunk Cable.
Reliability 100% tested - the combination of high-quality components and manufacturing quality control guarantees the product to the highest standards.
Application:
Telecommunication Networks.
Local Area Networks (LANs).
Data Processing Networks.
Premise Installations.
Wide Area Networks (WANs).
CATV, Metro.
Industrial, Medical & Military.
Standard:
TIA/EIA 604-5, IEC 61754, Telcordia GR-1435-CORE, GR-326-CORE, RoHS
Low smoke (IEC 61304), Zero Halogen(IEC 60754-1), Fire retardant (IEC 60332-3C), Corrosion resistance (IEC 60754-2).
