Description:

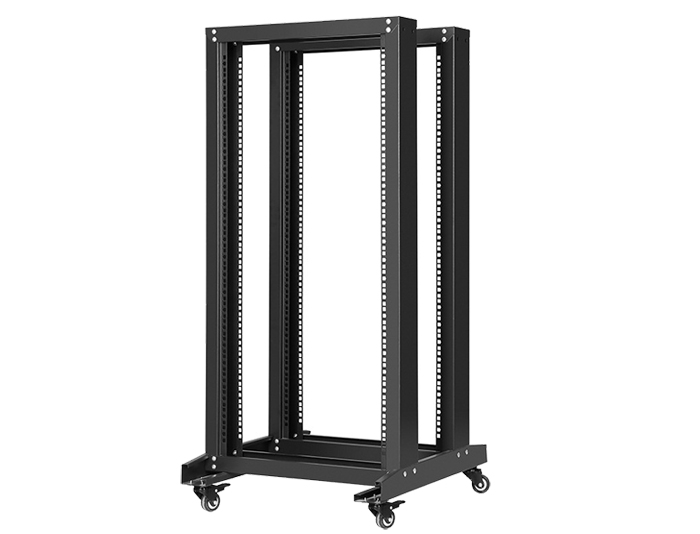

4 Post Open Rack accommodates 42U of rack space for 19-inch rack-mount applications. MJADOM provides 42U open frame racks that include two and four post designs. 42U Open Rack provides cable routing and storage while offering unobstructed airflow and fast, easy access to mounted equipment.
Server Rack Open easy to install, combined with 12-24 threaded and numbered mounting holes, and bolt down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization when required.
Open Frame Server Rack complies with ANSI/EIA, RS-310-D, IEC297-2, DIN41491, PAPT1, DIN41494, PART7, GB/T3047.2-92 standard.
Features:

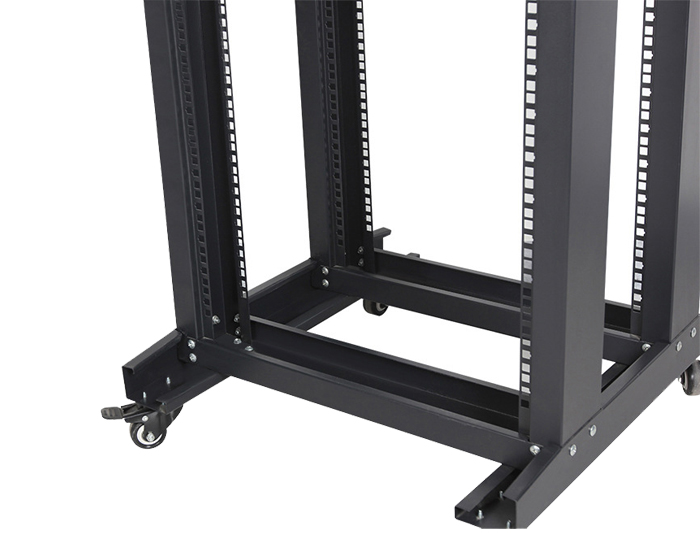

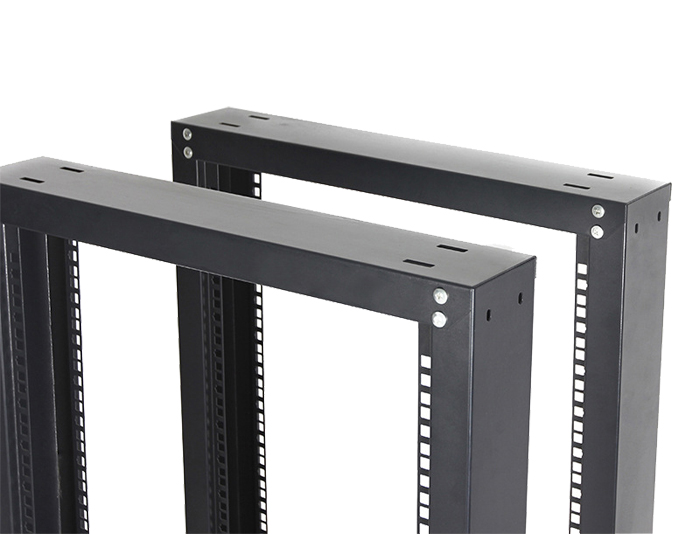

Single 19" steel frame formed by welding, curve, and hole punching.
Open Frame Server Rack made up of SPCC cold rolled steel construction with black powder-coated finish for durability.
Supports 750 lbs (362.9 kgs) of rackmount equipment.
12-24 threaded and numbered mounting positions.
Open Rack Server / Server Rack Open / Open Frame Server Rack.
The numbered square hole makes it easy to locate and position equipment when installing.
Color: Electrostatic Painting, Black (RAL9005), other colors are available upon request.
Toolless button keyhole mounting slots accept PDUs, Cable managers, Patch Panels, Fixed Shelf, Sliding Shelf, Blank panels, etc.
Knockdown design, easy to set up and transport.
Package: one carton, prevents crushing and punching, the wooden package is available.
Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491, PAPT1, DIN41494, PART7, GB/T3047.2-92 standard;
Product Details:
| Rack Type | Open Frame Rack | Style | Floor-Standing |
| Color | Black / Grey | EIA Mounting Rails | 12-24 threaded and numberedvertical mounting rails |
| Maximum Device Depth (cm) | 121.92 | Maximum Device Depth (mm) | 1,219 |
| Material | Frame: 1.2mm SPCC cold rolled steel construction;Base: 2.0 mm SPCC cold rolled steel construction. | Rack Height | 22U / 27U / 32U / 37U / 42U |
| Weight Capacity - Stationary (kg) | 363 KGS | Load Rating | 750 lbs |
| Installation | Standard EIA 19" Rack Rails | Device Compatibility | Patch Panel; Network Switch; UPS; Server |
| Number of Vertical Mounting Rails | 4 | Included Accessories | 28 pieces each of 12-24 screws and washers |
Application:
Data application / IT Equipment.
Perfect for Private / enterprise networks.
Ideal for switches, servers, patch panels, or copper cabling solutions.
