Description:
Network Cabinet are designed to meet various storage demands and guarantee maximum data security and protection. Networking Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, server rooms, data centers, and other areas with limited floor space where you need equipment to be secure and organized. Constructed from heavy-duty steel with a durable black powder-coated finish.
Network Cabinet For Home adopts ventilated or removable panel design that allows generous airflow to keep equipment operating safely. Toughened glass door or Perforated door with turning angle over 180 degrees, ensures protection, ventilation, and reliable operation of the equipment, which allows air to flow freely through the cabinet to keep equipment cool. Convenient top ports and an open bottom allow easy cable routing through the cabinet.
MJADOM has a powerful OEM service can undertake customized service according to your requirements.
Features:
Network Rack 42U adopts Exquisite design with precise craftsmanship.
Powder-coated finish with pretreatment process meeting all industry standards.
Floor-standing easy installation.
Optional adjustable feet and heavy-duty castors.
Network Rack Cabinet adopts removable side panels, easy to install and maintain.

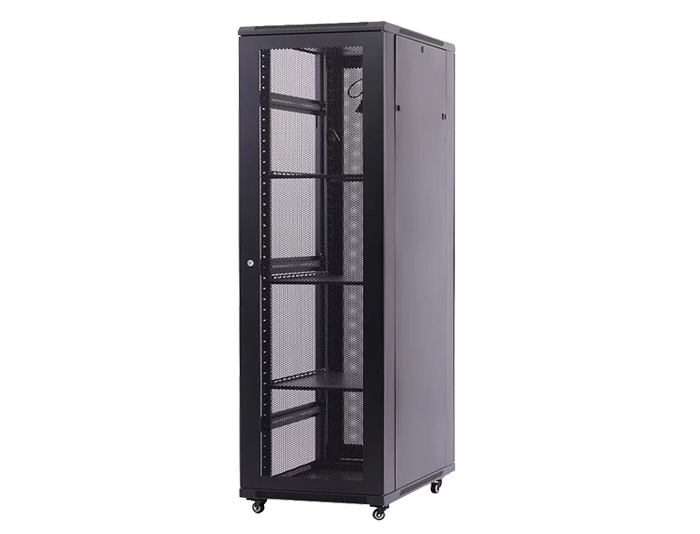

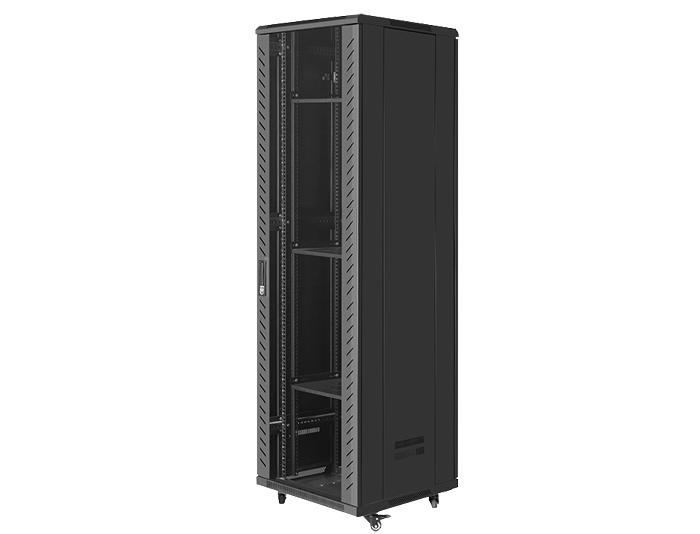

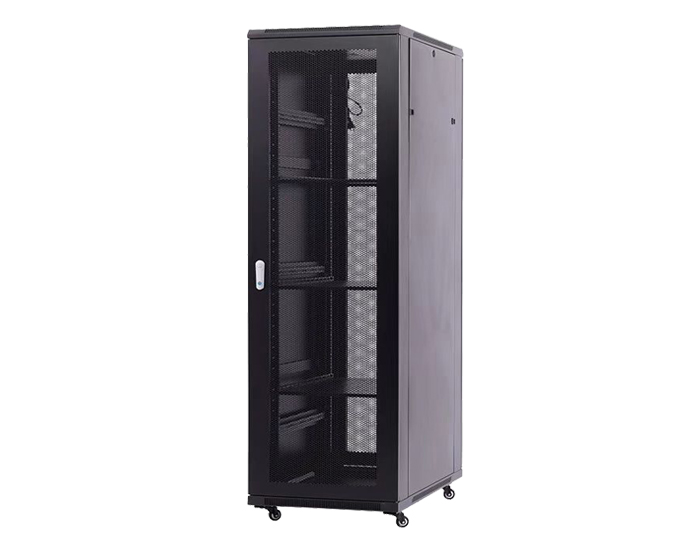

Toughened glass door or Perforated door with turning angle over 180 degrees.
Lockable and adjustable cable entries on the top cover and bottom panel ensure dust protection for the installed equipment
Provision to mount network cabinet cooling fans on the top panel. 4xFans (Network Cabinet Fan), Ø 4.7".
Intended for installation of 19"standard equipment.

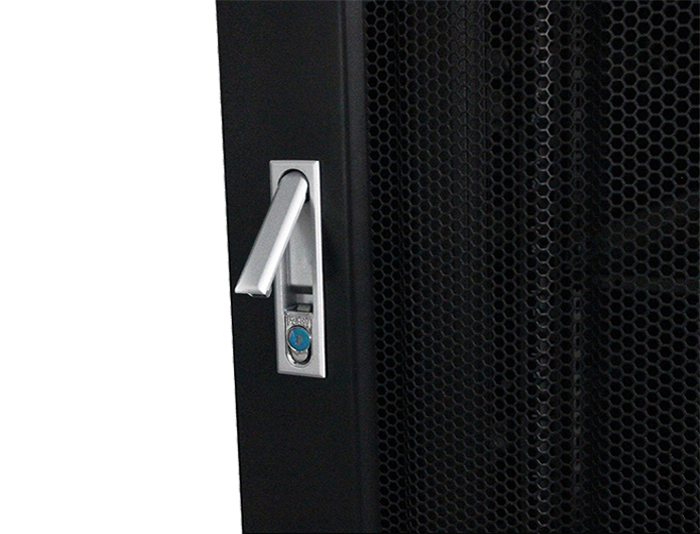

3-point network cabinet lock with handle securely to help prevent damage, tampering, or theft.
Grounding and Bonding Options. 100% assured compatibility with all equipment conforming to DIN 41494.
Various supplementary network cabinet accessories with common use are available upon request–castors, shelves, power distribution units, etc.
Network Cabinet Rack complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 part 1, DIN41494 part 7, ETSI standards.
Product Details:
| Rack Type | Network Cabinet Rack | Style | Floor-Standing |
| Color | Black / Grey | Dimensions (HxWxD) | 42U; 23.6"x23.6"x79.9" (600x600x2030mm) |
| Factory Preset Rack Depth | 23.6'' (600 mm) | Weight Capacity - Stationary | 3307lbs (1500 kg) |
| Protection Level | IP20 | Rack Height | 37U / 42U / 45U / 47Uor Customized |
| Mounting Rails | Square-Punched | Grounding Wire | Front and back door, side panels, top panel. |
| Installation | Standard EIA 19" Rack Rails | Device Compatibility | Routers; Modems; Network Switch; UPS; Server. |
| Material | Mounting profile: 2.0mm SPCC cold rolled steel construction; Mounting Angles: 1.5mm SPCC cold rolled steel construction; Others: 1.2mm SPCC cold rolled steel construction. | Compliant | ANSI/EIA RS-310-D, IEC297-2, DIN41494 part 1, DIN41494 part 7, ETSI standards |
Application:
Data application / IT Equipment.
Perfect for Private / enterprise networks.
Ideal for switches, servers, patch panels, or copper cabling solutions.
