Description:

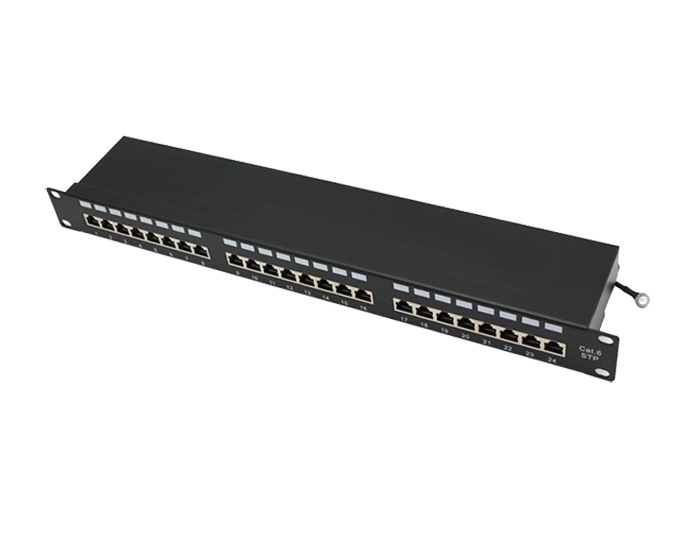

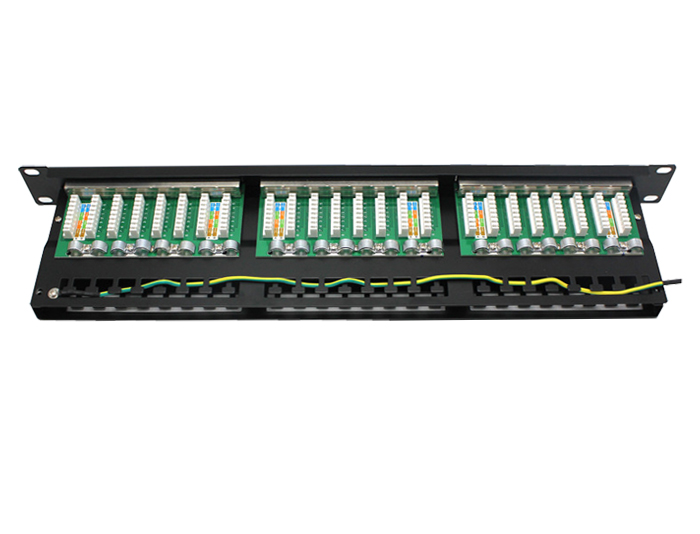

The CAT6 FTP Patch Panel also called Shielded Patch Panel or Cat6 Shielded Patch Panel exceeds TIA's CAT6 performance standards. The Shielded Patch Panel 24 Port is designed with rear 110 IDC's for quick and easy punch-down termination. Cat6 Patch Panel comes integrated with a universal label for either 568-A or B wiring schemes.

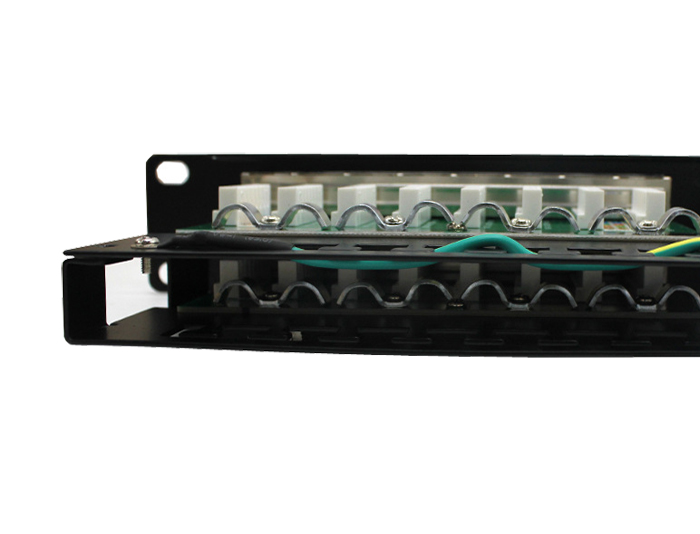

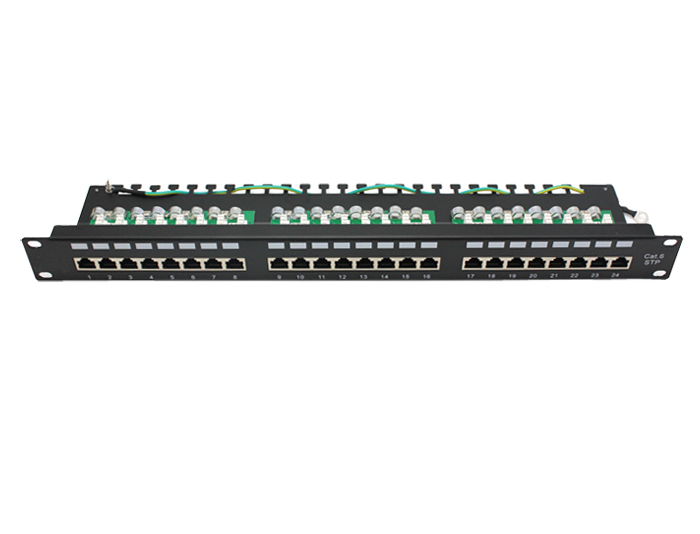

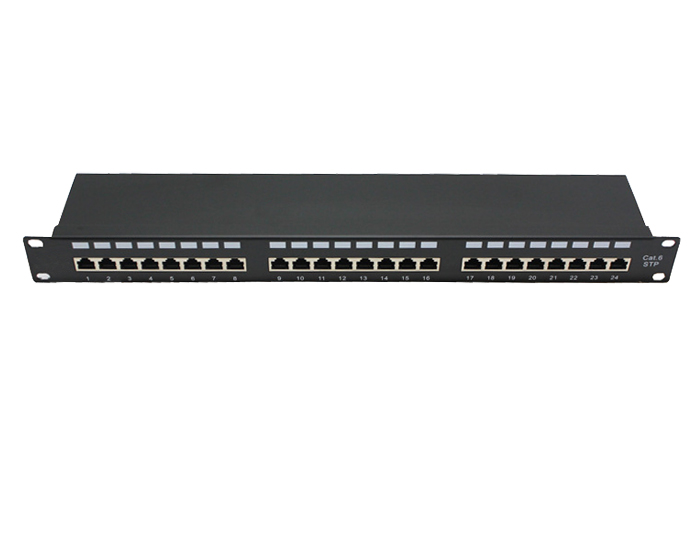

The FTP Patch Panel is designed for wall mount and ideal for 10/100/1000Base-T Ethernet applications. Network Patch Panel manages and organizes Cat6 input and output cable connections in high-density Ethernet network. The CAT6 Shielded Patch Panel has clear numbering on the front and back of the patch panel enables quick and easy identification of cable runs, and the rear cable management bar keeps Ethernet cables neat and tidy. All keystone Jacks in the panel are commonly linked through the panel, The Shielded Cat6 Patch Panel complies with Category 6 specifications(TIA 568-C.2 and ISO/IEC 11801).
MJADOM offers a full range of Patch Panels including in CAT5E, CAT6, CAT6A, CAT7, Buy Patch Panels (Shielded & Unshielded, 12 Port, 24 Port, 48 Port, 96 Port) For Copper Ethernet Network at MJADOM.
Features:
Rack-mounted CAT6 component-rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.
CAT6 Patch Panel provides excellent performance for data networks.
Rack for Patch Panel designed for use in 19"racks and ideal for 10/100/1000Base-T applications
Enhanced crosstalk cancellation reduces return loss.
Exceeds ANSI/TIA-568 Category 6 connecting hardware requirements.
Universal IDC Module (Krone or 110) termination interface
Includes both TIA-568A and TIA-568B color wiring diagrams.
Patch Panel in Networking is ideal for a 22-26AWG solid wire.
Clear protective wire cap allowing security during wire management.
Universal IDC Module (Krone or 110) termination interface
Backwards compatible with all lower rated category components.
Cat 6 Patch Panel is 1U rack mount space (RMS).
Exceeds ANSI/TIA-568-B.2-1 and ISO/IEC 11801 Standards
UL listed.
Product Details:
| Category | Cat6 | PoE Standard | IEEE 802.3af/at |
| Ports | 24 Ports | Rack Space | 1U |
| Connector Type | RJ-45 (8P8C) | Connector Gender | Male-to-Male |
| Shielding Type | FTP Shielded | Wiring Scheme | T568A/T568B |
| Electrical Details: | |||
| Current Rating | 1.5Amps | Insulation Resistance | 500 Megaohm |
| DC Resistance | 0.1ohm MAX | Voltage | 150 VAC MAX |
| Insertion Life | 1500 mating cycles | Plug Retention Force | 89N |
| IDC Accept | 22-26 AMG Solid Wire | Wire Scheme | T568A / T568B |
| Material: | |||
| Panel | 1.5mm thickness metallic panel | IDC Contact | Phosphor Bronze with Tin-painted |
| Spring | Phosphor Bronze with gold-painted(3U"~50U") over nickel painted | Shield | Zinc Alloy |
| Environmental Conditions: | |||
| Storage Temperature | -60℃ ~+80℃ | Operational Temperature | -10℃ ~+60℃ |
| Relative Humidity | Maximum Noncondensing 93%. | ||
Application:
10/100/1000 Ethernet connectivity.
Data applications (19" Rack & Cabinet).
Private/enterprise networks.
T1/DDS TDM connectivity and patching.
