Description:

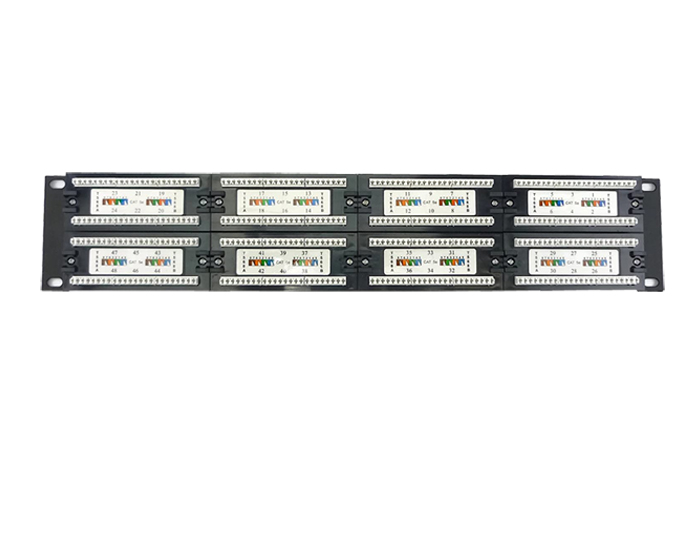

The 48 Port Cat5e Patch Panel exceeds TIA's CAT5e performance standards. The Patch Panels Cat5e is designed with rear 110 IDC's for quick and easy punch-down termination. Patch Panel 48 Port comes integrated with a universal label for either 568-A or B wiring schemes.

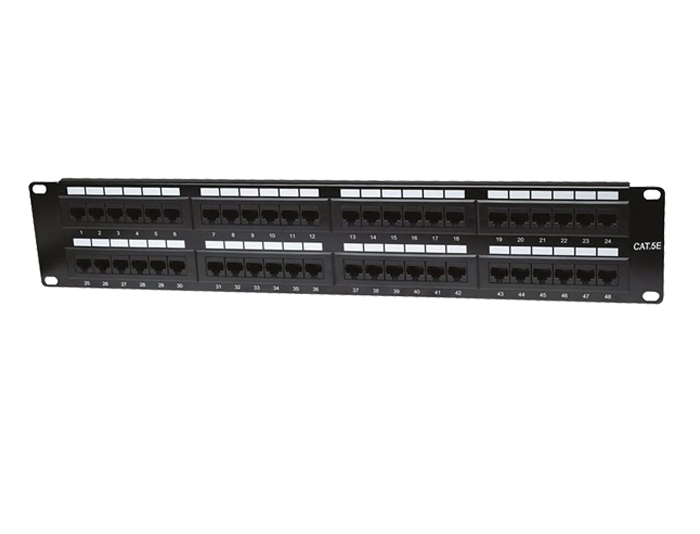

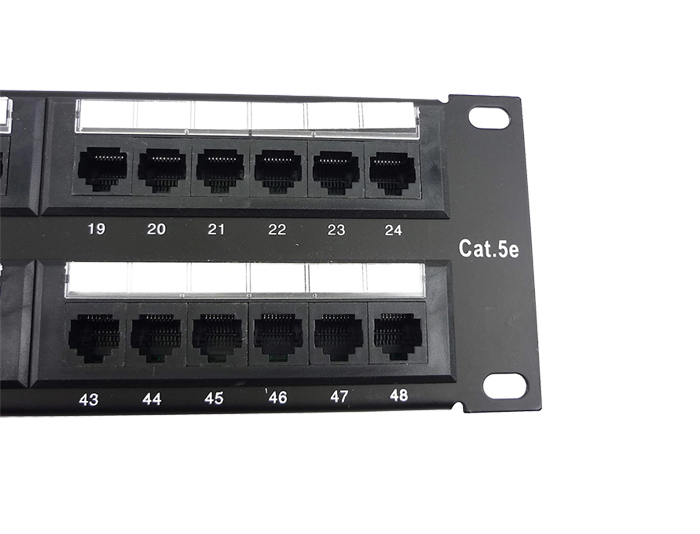

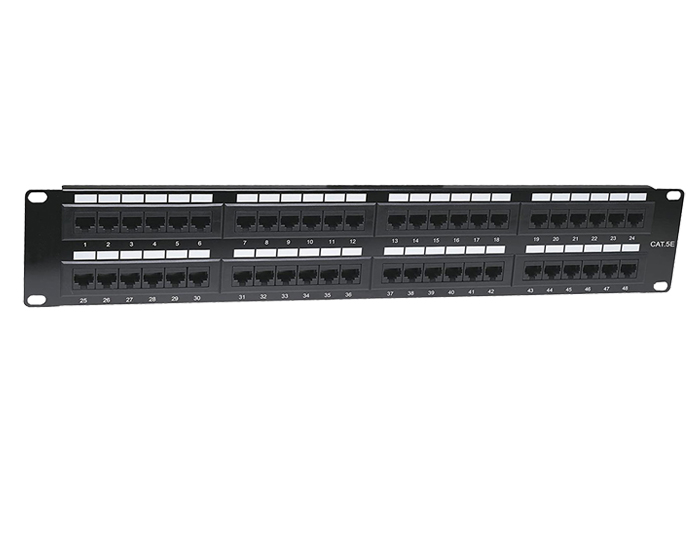

The Cat5e Patch Panel 48 Port / Patch Panel 48 Portas is designed for use in 19"racks and ideal for 10/100/1000Base-T Ethernet applications. It manages and organizes Cat5e input and output cable connections in high-density Ethernet network. The Patch Panel 48 Port has clear numbering on the front and back of the network patch panel enables quick and easy identification of cable runs, and the rear cable management bar keeps Ethernet cables neat and tidy. All keystone Jacks in the panel are commonly linked through the panel and can be grounded to the rack using the earth wire provided. The 48 Port Patch Panels / Patch Panel RJ45 comply with Category 5e specifications(TIA 568-C.2 and ISO/IEC 11801).
MJADOM offers a full range of Patch Panels including in CAT5E, CAT6, CAT6A, CAT7, Buy Patch Panels (Shielded & Unshielded, 12 Port, 24 Port, 48 Port, 96 Port) For Copper Ethernet Network at MJADOM.
Features:
Rack-mounted CAT5e component-rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.
CAT5e Keystone Jack provides excellent performance for data networks.
Patch Panel Rack / Patch Panel 48 Portas designed for use in 19"racks and ideal for 10/100/1000Base-T applications
Enhanced crosstalk cancellation reduces return loss.
Exceeds ANSI/TIA-568 Category 5e connecting hardware requirements.
Universal IDC Module (Krone or 110) termination interface
Includes both TIA-568A and TIA-568B color wiring diagrams.
Ethernet Patch Panel is ideal for a 22-26AWG solid wire.
Clear protective wire cap allowing security during wire management.
Universal IDC Module (Krone or 110) termination interface
Backwards compatible with all lower rated category components.
1U rack mount space (RMS).
Exceeds ANSI/TIA-568-B.2-1 and ISO/IEC 11801 Standards
UL listed.
Product Details:
| Category | Cat5e | PoE Standard | IEEE 802.3af/at |
| Ports | 48 Ports | Rack Space | 1U |
| Connector Type | RJ-45 (8P8C) | Connector Gender | Male-to-Male |
| Shielding Type | UTP Unshielded | Wiring Scheme | T568A/T568B |
| Electrical Details: | |||
| Current Rating | 1.5Amps | Insulation Resistance | 500 Megaohm |
| DC Resistance | 0.1ohm MAX | Voltage | 150 VAC MAX |
| Insertion Life | 1500 mating cycles | Plug Retention Force | 89N |
| IDC Accept | 22-26 AMG Solid Wire | Wire Scheme | T568A / T568B |
| Material: | |||
| Panel | 1.5mm thickness metallic panel | IDC Contact | Phosphor Bronze with Tin-painted |
| Spring | Phosphor Bronze with gold-painted(3U"~50U") over nickel painted | Shield | Zinc Alloy |
| Environmental Conditions: | |||
| Storage Temperature | -60℃ ~+80℃ | Operational Temperature | -10℃ ~+60℃ |
| Relative Humidity | Maximum Noncondensing 93%. | ||
Application:
10/100/1000 Ethernet connectivity.
Data applications (19" Rack & Cabinet).
Private/enterprise networks.
T1/DDS TDM connectivity and patching.
