Description:

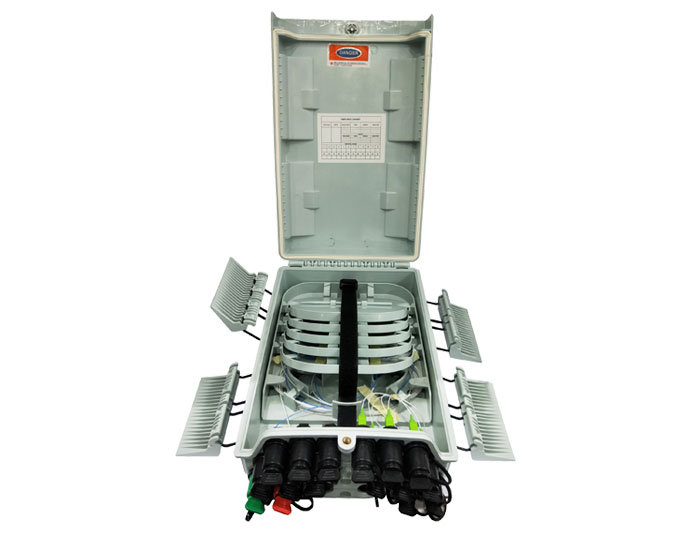

10 Core Pre-Connectorized Fiber Optic Distribution Box (RGP-F2E-507C-10K) is made of plastic molded parts and gasket sealing materials. 10 Core F2E-507C-10K Nap Box Fiber are designed to serve as an interconnection point between the distribution network and the access network, allowing for faster deployment, connection and disconnection of new customers. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTX network building. The Fiber Box Installation can be used indoors and outdoor.
The Pre Connectorized Nap Box can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Material: Modified P.P.
Seal Material: Thermoplastic rubber.
Single-ended half-style design, Mechanical Sealing.
The bottom shell and the upper cover are fixed with screws, removable.
Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, Pre-connected household cable instead of fusion, no need to open the box.
Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Support Pole-mounted, Wall-Mounted, Aerial Mounted Instrallation.
Impact test:1K10. Pull Force:100N. Full Rugged design.
1x2 FBT Splitter+1x8 PLC Splitter or 1x9 Unbalance Fiber Optic Splitter can be installed as optional.
10 pcs of Pre-connector reinforced water-proof adapter for SC.
Wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
RoHS compliance.
Applications:
Aerial mounting, Pole mounting & Wall mounting applications.
