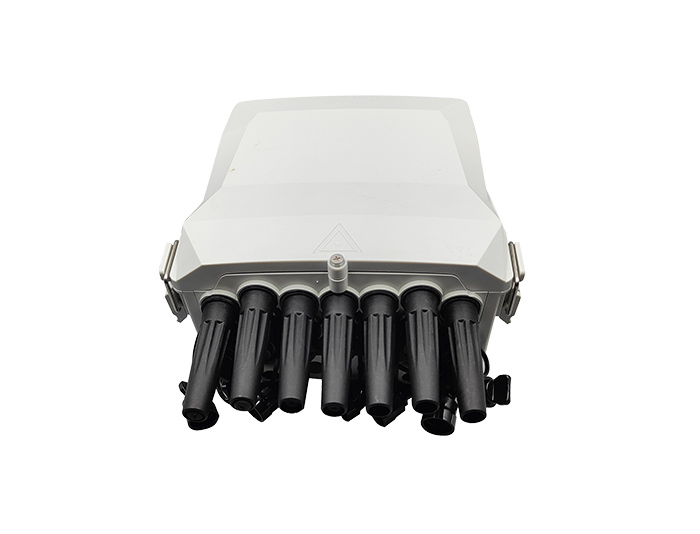

12 Core Pre-Connectorized Fiber Nap Box F2E-507C-12K

Publisher: MJADOM

Author: Andy


12 Core Pre-Connectorized Fiber Nap Box (RGP-F2E-507C-12K) is made of plastic molded parts and gasket sealing materials. 12 Core F2E-507C-12K Nap Box Fiber are designed to serve as an interconnection point between the distribution network and the access network, allowing for faster deployment, connection and disconnection of new customers.



Description:


12 Core Pre-Connectorized Fiber Nap Box (RGP-F2E-507C-12K) is made of plastic molded parts and gasket sealing materials. 12 Core F2E-507C-12K Nap Box Fiber are designed to serve as an interconnection point between the distribution network and the access network, allowing for faster deployment, connection and disconnection of new customers. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTX network building. The Fiber Box Installation can be used indoors and outdoor.



The Pre Connectorized Nap Box can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.




Feature:



Material: Modified P.P.

Seal Material: Thermoplastic rubber.

Single-ended half-style design, Mechanical Sealing.

The bottom shell and the upper cover are fixed with screws, removable.

Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation, Pre-connected household cable instead of fusion, no need to open the box.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.

Support Pole-mounted, Wall-Mounted, Aerial Mounted Installation.



Impact test:1K10. Pull Force:100N. Full Rugged design.

1x4 PLC Splitter+1x8 PLC Splitter or 1x9 Unbalance Fiber Optic Splitter can be installed as optional.

12 pcs of Pre-connector reinforced water-proof adapter for SC.

Wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.

RoHS compliance.



Applications:
Aerial mounting, Pole mounting & Wall mounting applications.


Configuration


Specification:

Body MaterialModified P.PDimension (W*H*D)176mmx222mmx79mmMax Splicing (Core)12
Material of metal accessoryHigh-quality stainless steelSplitter1x2 FBT splitter+ 1x8 PLC splitterFlammabilityUL94-HB
IP RateIP68Weight0.5kgWaterproof Adapter12 pcs of Pre-Connectorized Connector
Insertion loss≤0.15dBUPC return loss≥50 dBAPC return loss≥60 dB
Working temperature-40℃~+85℃Relative humidity≤85%(+30℃)Atmospheric pressure70KPa~106 KPa



Performance Parameters:

AdaptorAdapter insertion loss≤ 0.2 dB
Reseating durability>500 times



Shipping Information:

SpecificationSizePcs/CartonWeight
Internal Carton Box177mmx222mmx79mm1 pc0.8 KGS
Outside Carton Box600mmx420mmx440mm20 pcs16 KGS



Order Information:

Model No.Splice TrayMax CapacitySize(mm)L*W*HCable portsApplicableCable Diameter
 RGP-F2E-507C-12K Tray 408FCapacity: 8 Fibers1x4 PLC Splitter+1x8 PLC Splitter or 1x9 Unbalance Fiber Optic Splitter 177mmx222mm x79mm 12 SC/APC Waterproof adapter12 Round ports forPre-Connectorized Reinforcedwater-proof adapter for SC
