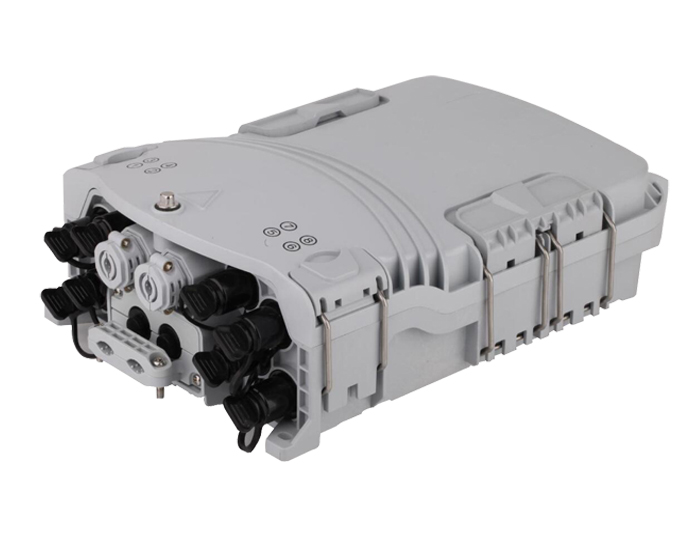

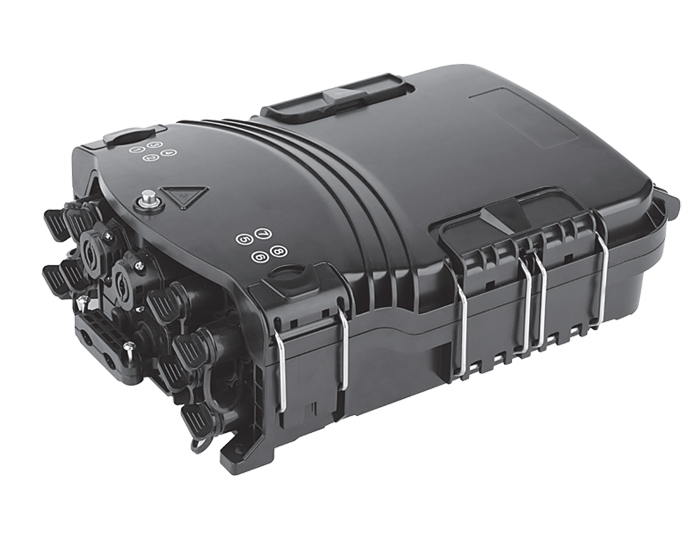

8 Core Pre-Connectorized Fiber Nap Box

8 Core Pre-Connectorized Fiber Nap Box (RGP-F2E-507A) is made of plastic molded parts and gasket sealing materials. 8 Core F2E-505A Nap Box Fiber is widely used as a termination point for the feeder cable to connect with the drop cable. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTX network building. The Fiber Box Installation can be used indoors and outdoor.

The Pre Connectorized Nap Box can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.

Material: PC+ABS alloy.

Seal Material: Thermoplastic rubber.

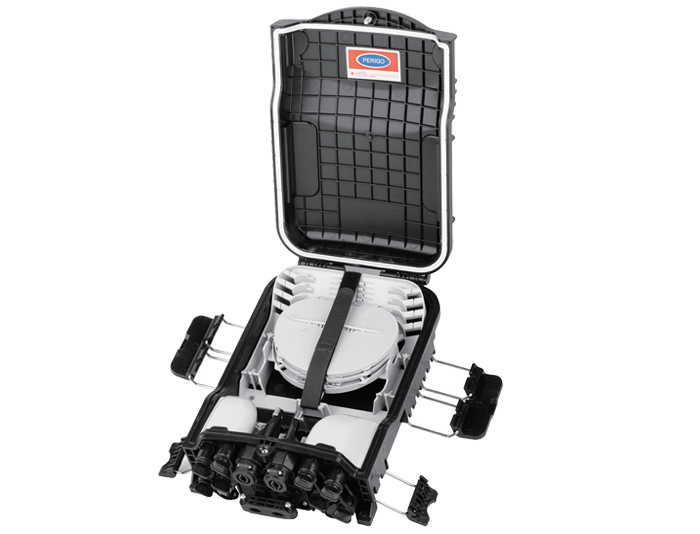

180-degree access with buckled lock structure

Dis-mountable adaptor panel, Supports mid-span termination.

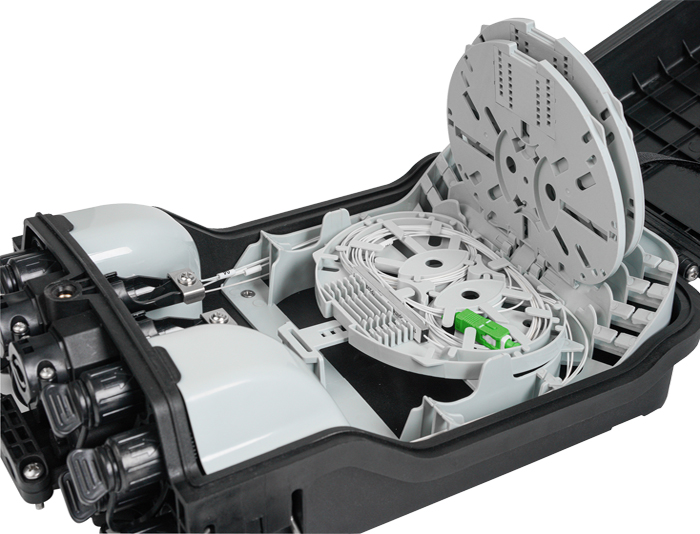

Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation, easy for maintenance and expansion.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.

Impact test:1K10. Pull Force:100N. Full Rugged design.

1x4, 1x8 PLC Splitter or 1x9 Unbalance Fiber Optic Splitter can be installed in each splice tray as option.

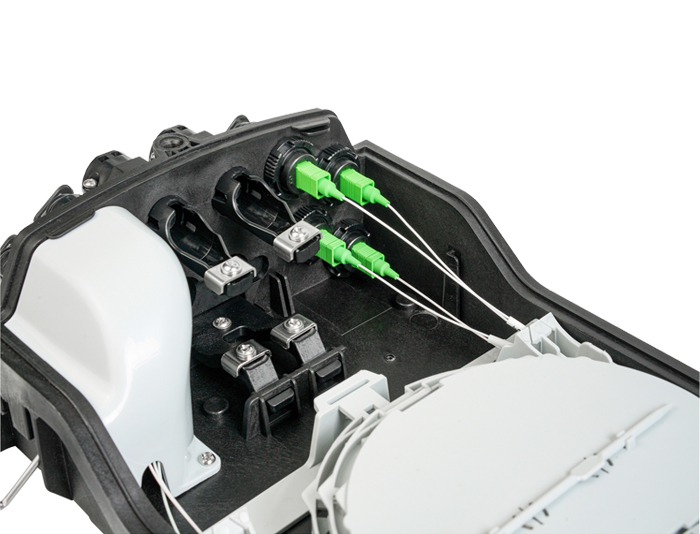

8 pcs of Pre-connector reinforced water-proof adapter for SC.

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 2 branch ports for distribution cable(Φ10-17.5mm),8 ports cable entrance for pre-connectorized drop cables SC Connector.

Protection class: IP65.

RoHS compliance.

Applications:
Aerial mounting & Pole mounting & Wall mounting applications.

Item	Name	Usage	Quantity
1	Splice cassette	To splice the fiber optic	Same as capacity
2	Fiber Splice Protective Sleeves	To protect fiber splices	Same as capacity
3	Nylon Tie	To fix buffer tubes with fibers inside	Same as capacity
4	Grounding Wire	To connect with grounding device	1pc
5	Abrasive Cloth	To polish fiber optic cable	1pc
6	Labelling Paper	To label fibers	1 set
7	Buffer Tube	To protect fibers and be fixed on splice trays	1pc
8	Installation bolts and nuts	To fix splice cassette	1 set

Specification	Size	Pcs/Carton	Weight
Internal Carton Box	325mmx205mmx102mm	1 pc	1.6 KGS
Outside Carton Box	685mmx480mmx350mm	10 pcs	16.5 KGS

Model No.	Splice Tray	Spliced fiber storage capacity	Size(mm)LWH	Cable ports	Max. diameterof cable(mm)	ApplicableCable Diameter
RGP-F2E-507A	Tray 507ACapacity: 24 Fibers	36 Fibers(3*12 Fibers)	319.3mmx200mmx97mm	1 Uncut Port & 2 Round Port + 8 Port Pre-Connectorized Outlet.	1 uncut of port can support Φ8~14 mm;2 branch ports for distribution cableΦ10~16mm;	8 Round ports forPre-Connectorized Reinforcedwater-proof adapter for SC
