Description:

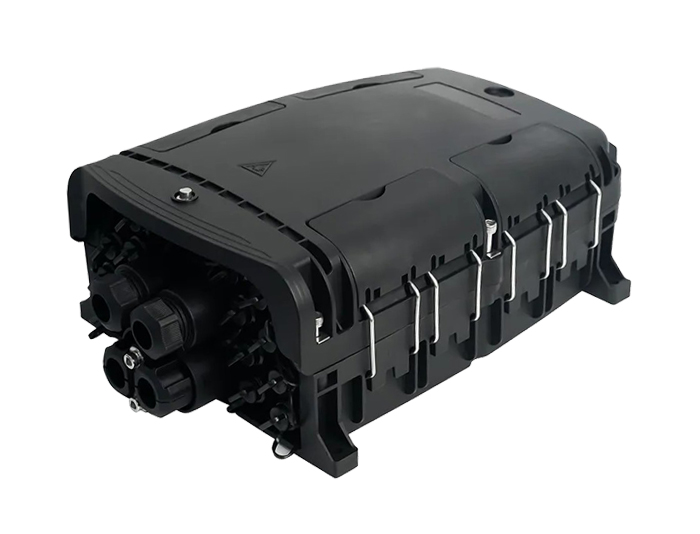

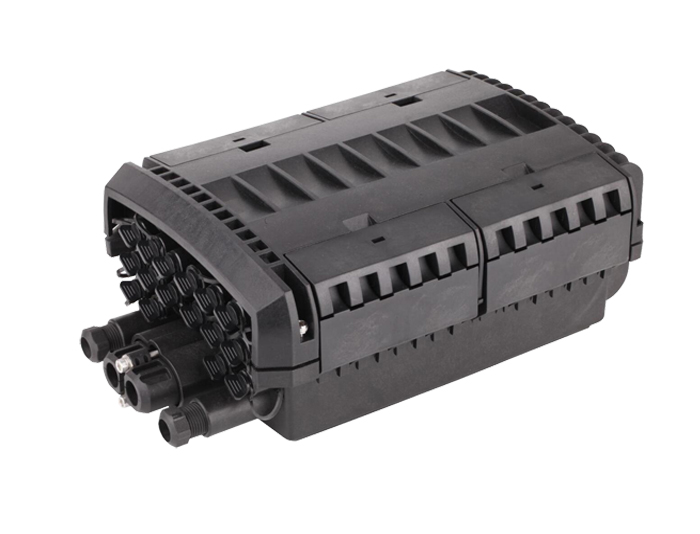

RGP-F2E-507K-8R 8 Core Pre-Connectorized Huawei Fiber Distribution Hub Fiber NAP Box provides a high-density solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. The Fiber Nap Box is a single-ended half-style design that is sealed mechanically pre-connectorized horizontal connector box. The NAP Box adopts an unbalanced split ratio in a hub box node solution, converting traditional optical cables into single core pre-connectorized SC/APC output ports.
The Fiber Nap can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Material: Modified PP.
Single-ended half-style design, Mechanical Sealing.
180-degree access with buckled lock structure.

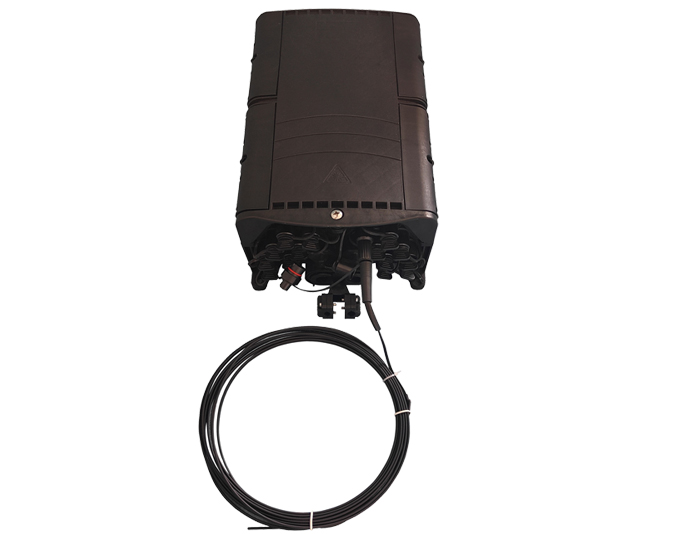

Plug-and-play installation, Pre-connected household cable instead of fusion, no need to open the box.
Fast insertion can fix and seal the optical cable outside the connector box for quick installation.
Rotatable and dis-mountable splice tray for easy splicing.
Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Support Pole-mounted, Wall-Mounted, Aerial Mounted, and Fiber Storage Bracket Instrallation.
Support above-ground, underground, human well, and hand well installation scenarios.
Impact test:1K10. Pull Force:100N. Full Rugged design.
1x8 or 1x16 PLC splitter can be installed in each splice tray as an option.

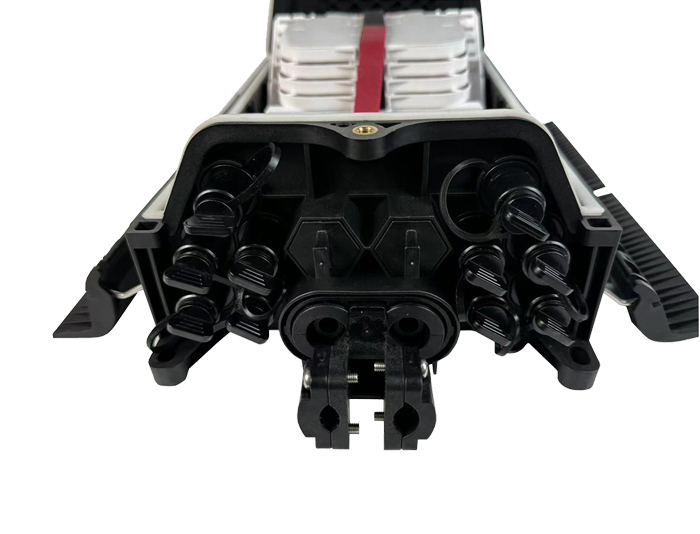

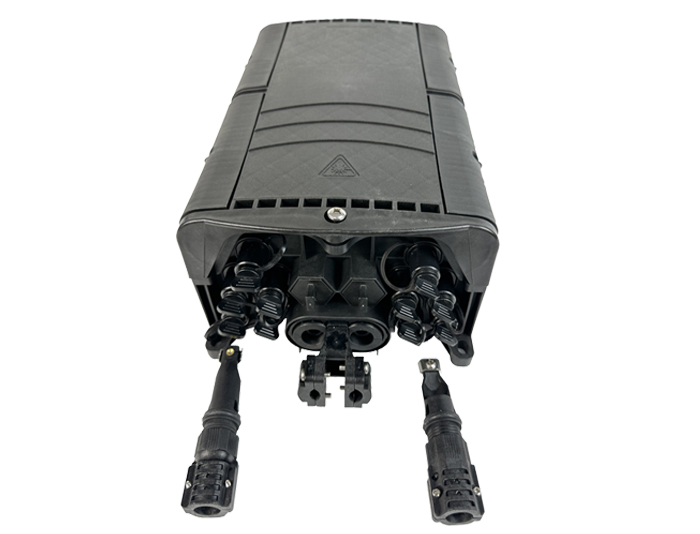

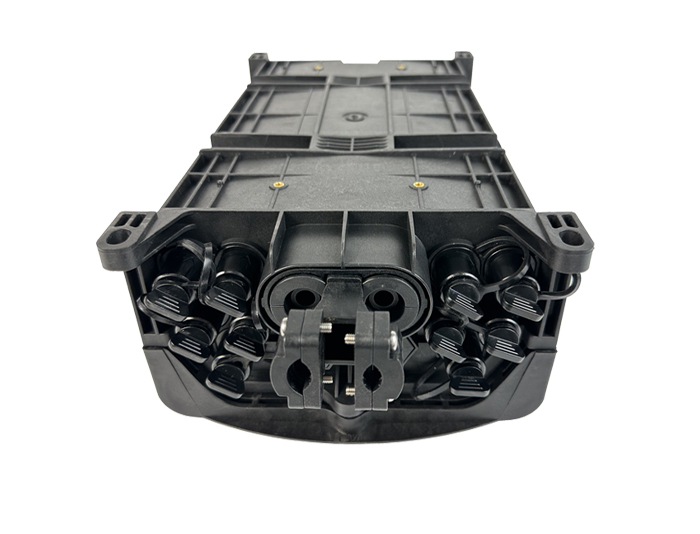

1 mid-span cable entrance(Φ6-18mm)for uncut cable and 2 branch ports for distribution cable(Φ5-12mm),8 ports cable entrance for pre-connector distribution cables.
Wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
Applications:
Pole-mounted, Wall-Mounted, Aerial-Mounted, and Fiber Storage Bracket Instrallation.
