Description:

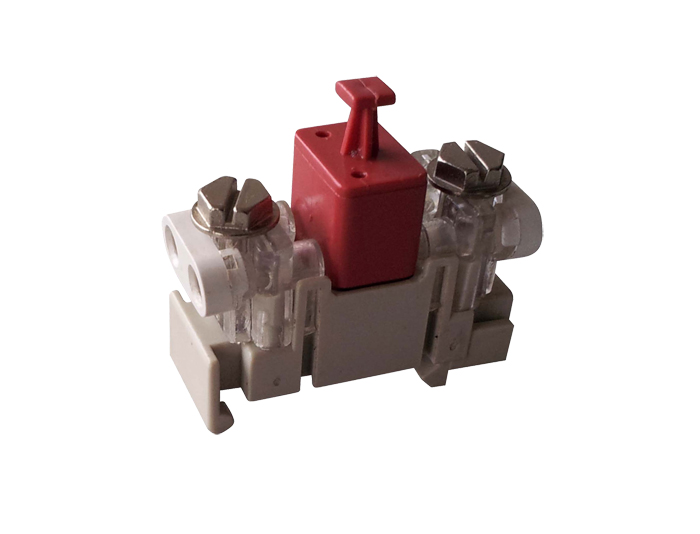

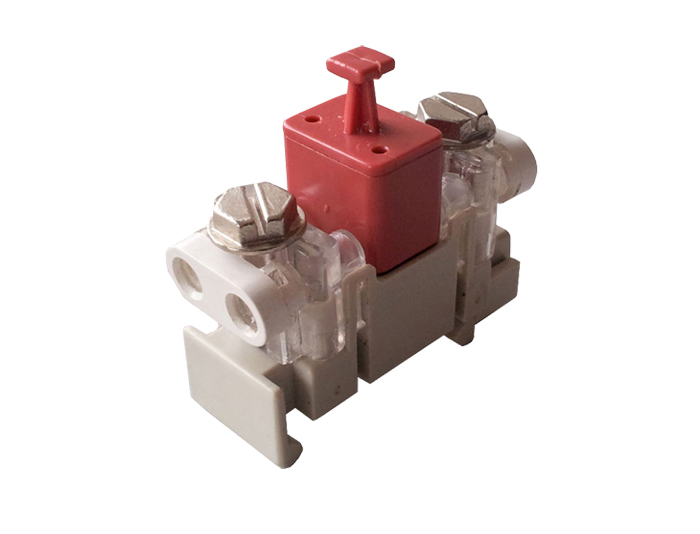

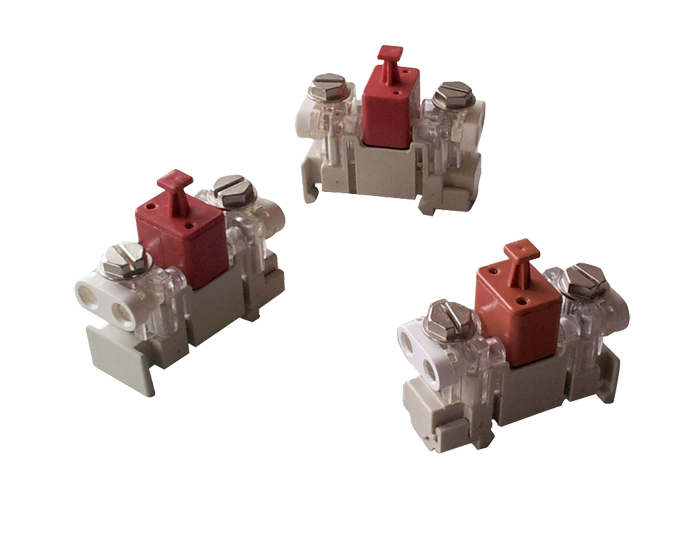

RGP-TSF-105 STB Module also called drop wire module or subscriber terminal block or gel-filled wire connector is the most widely used IDC module and ideal connectivity products. Drop Wire Module adopts IDC ( Insulation Displacement Connection ) technical. The contact pin is Silver-plated phosphor bronze.
The gel-filled connector is suitable for distribution, protection, and customer termination in overhead lines. This new generation design fits all existing networks and can accommodate a wide range of drop wire sizes. No special tools are required to perform IDC terminations; a simple clockwise rotation of a screwdriver completes the drop wire termination. Both sides of this connector can be re-terminated multiple times with different conductor sizes.

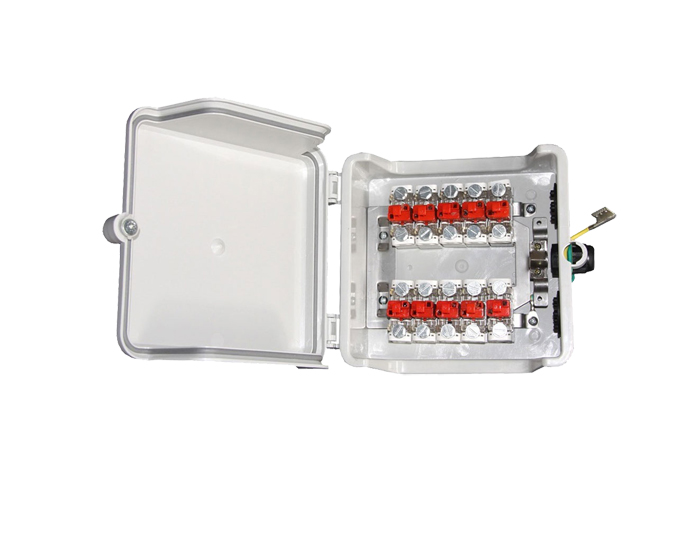

MJADOM offers a full range of 1 Pair STB Module Without Protection & 1 Pair STB Module With Protection and Dp Box.
Features:
No special tools are required to perform IDC terminations.
Both sides of this connector can be re-terminated multiple times with different conductor sizes.
Gel Filled Connectors adopts IDC Insulation Displacement Connection.
Reliable connections.
Flame retardant performance.
Gel Filled Wire Connectors design and easy installations and testing.
Water and humidity-proof totally sealed connections.
Durable, High Impact, Ultra Violet resistance.
Designed for mounting on standard DIN stainless steel galvanized rails 35 mm.
A gel-filled IDC module designed for mounting in housings on standard DIN rails.
Product Details:
| Type | RGP-TSF-105B | Style | 1 Pair STB Module With Protection |
| Color | Red / Grey | Material | Body: VO glass-fiber reinforced polycarbonate Insertion contacts: Tin-plated phosphor bronze (5μ) |
| Insulation resistance | Dry atmosphere: >1012Ω. Damp atmosphere: >1012Ω. Salt fog (ASTMB117): >1012Ω. Immersion in water: >1012Ω (15 days in 3% NaCl solution) | Contact resistance | RMaterial + Rbridge contacts +Rwire contacts <10mΩ. Increase in contact resistance: After climatic tests: <2.5mΩ. After 50 reinsertions: <2.5mΩ. Dielectric strength: >3,000 Vdc for 1 minutes |
Drop wire connector Gauge range Insulation diameter | 0.4 to 1.0mm ø 5mm max ø | Pair connector Gauge range Insulation diameter | 0.4 to 1.0mm ø 3mm max ø |
| Lower sealant | Epoxy resin | Upper cable sealant | Silicone-filled |
| Pair/drop wire bearing cover | Polycarbonate | Plug-in module body | VO glass-fiber reinforced polycarbonate |
| Plug-in module sealant | Gel Filled | Cable/drop wire membrane | Thermoplastic rubber |
| Protection module | 230 V, 5A/5KA GDT. | ||
Application:
In cross-connection cabinets and terminating boxes.
In building entrance distributors.
Interface boxes UG / Aerial Networks.
Distribution Points.
Customer termination devices.
Secondary Telephone Network.
