Description:

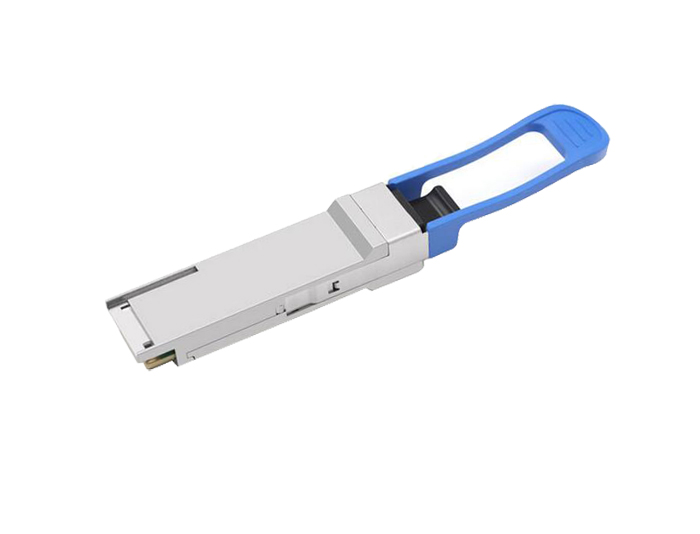

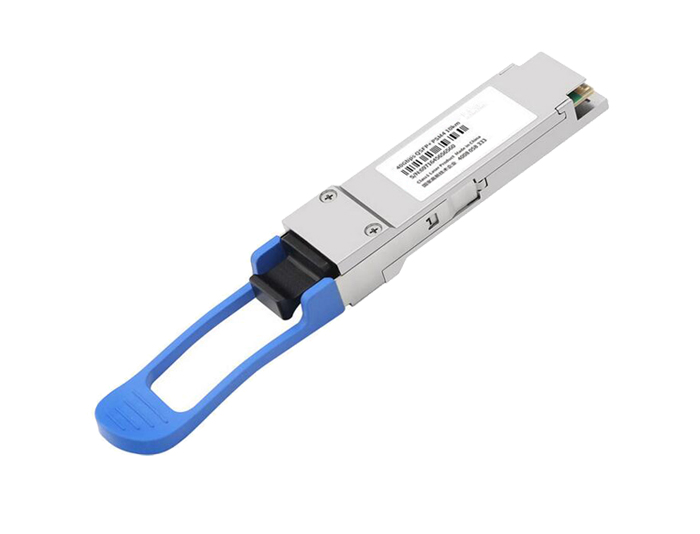

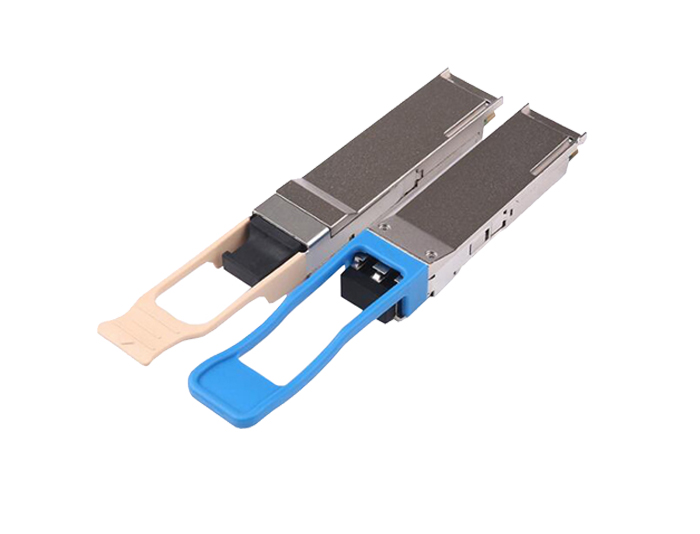

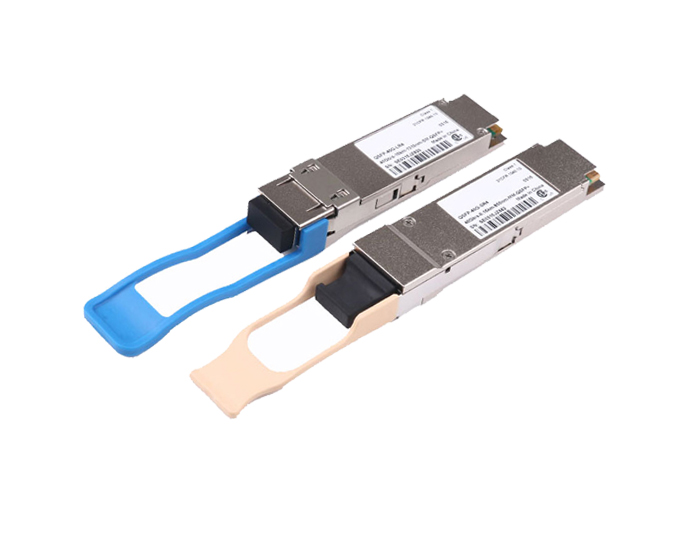

The TQB-QSFP+-40G-LR4 also called QSFP or QSFP 40G or QSFP Transceiver or Fiber Optic Transceiver Module, which is a transceiver module designed for 10km optical communication applications. It is fully compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.
Features:
4 CWDM lanes MUX/DEMUX design.
Up to 11.2Gbps per channel bandwidth.
Aggregate bandwidth of > 40Gbps.
Duplex LC connector.
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard.
QSFP MSA compliant.
Up to 10km transmission.
Compliant with QDR/DDR Infiniband data rates.
Single +3.3V power supply operating.
Built-in digital diagnostic functions.
Temperature range 0°C to 70°C.
RoHS Compliant Part.
Production Specification:
| Item Model | QSFP-40G-LR4 | Name | Specification |
| Form Factor | QSFP+ | Max Data Rate | 42Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km@OM4 SMF |
| Connector | LC Duplex | Media | SMF |
| Transmitter Type | DFB CWDM | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C |
| TX Power | -7~2.3dBm | Receiver Sensitivity | <-11.5dBm |
| Power Consumption | 3.5W | Extinction Ratio | 4.5dB |
| Modulation Format | NRZ | CDR | None |
| Transmit and Dispersion Penalty | 2.6dB | Power budget | 4.5dB |
| Packaging Technology | BOX Packaging | FEC Function | Supported |
| Protocols | OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant | Application | 40GBASE Ethernet, OTN OTU3 C4S1-2D1, OTU3e1 and OTU3e2, Data Center |
Applications:
Rack to rack.
Data centers Switches and Routers.
Metro networks.
Switches and Routers.
